Enhanced Image Quality with SuperIR
Owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.
Manual Focus
Adjusting the manual focus ring allows to see objects clearly on targets as close as 0.1 m (0.33 ft) and still capture sharp images and more accurate results from further away. (M11W, M20W features a focus-free lens.)
Interchangeable Battery System
HIKMICRO M series Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Complete Image Annotations
Quickly annotate your images with voice, text, picture note QR codes, tag note, make your work more efficient with M series.
1-Tap Level & Span
HIKMICRO M series supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems. Touchscreen, instantly improving image contrast and highlighting potential problems.
5 Image Modes
Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.
Precise, Flexible, Stable Microscope Stand
Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis.
Rugged & Durable Design
HIKMICRO M series with IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.
Laser Pointer
The Laser Pointer with HIKMICRO M series helps show the position of the center point on actual object.
Analyze, share images, and generate reports in real-time on-site.
HIKMICRO Viewer
Connect HIKMICRO Viewer app via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.
HIKIMICRO Analyzer
HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.
Specifications:
| Model | IR Resolution | NETD |
Image Frequency
|
|---|---|---|---|

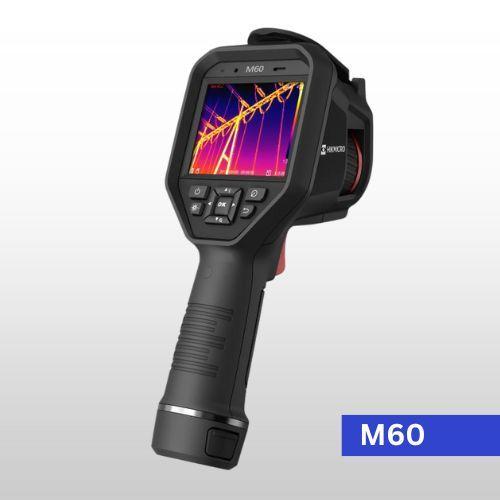

| M60 | 640 x 480 (307,200 pixels) | < 35 mK (@ 25 °C, F#=1.0) | 30 Hz |

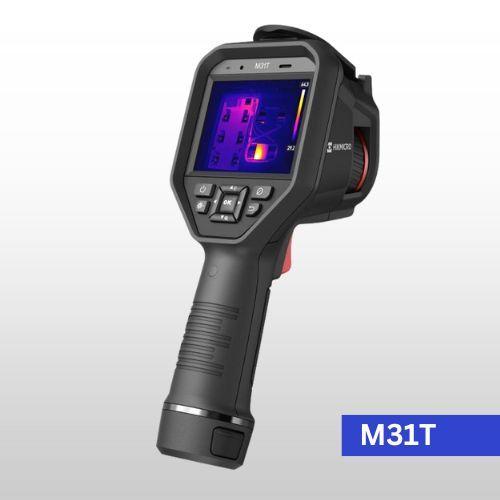

| M31T | 384 x 288 (110,592 pixels) | < 35 mK (@ 25 °C, F#=1.0) | 30 Hz |
| M31 | 384 x 288 (110,592 pixels) | < 35 mK (@ 25 °C, F#=1.0) | 30 Hz |
| M30 | 384 x 288 (110,592 pixels) | 5 mK (@ 25 °C, F#=1.0) | 30 Hz |
| M20W | 256 × 192 (49,152 pixels) | < 40 mK (@ 25 °C, F#=1.0) | 25 Hz |

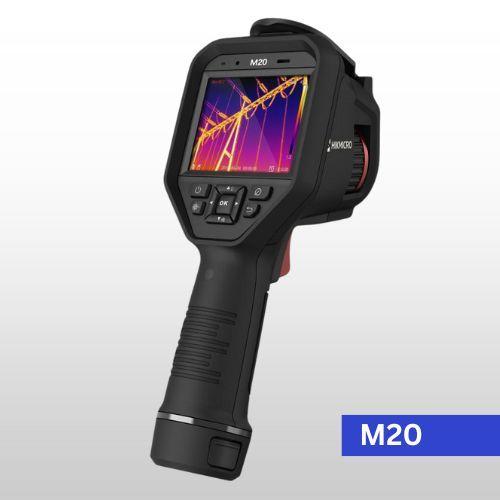

| M20 | 256 × 192 (49,152 pixels) | < 40 mK (@ 25 °C, F#=1.0) | 25 Hz |

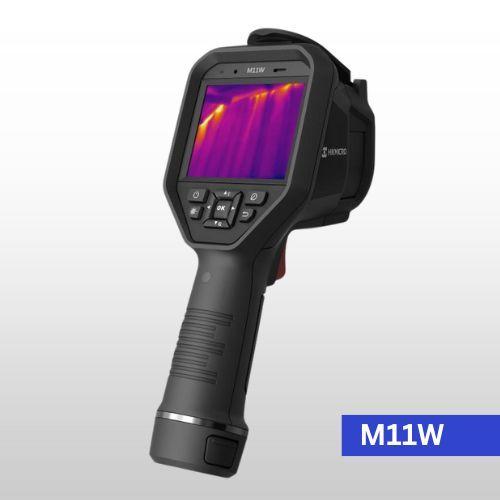

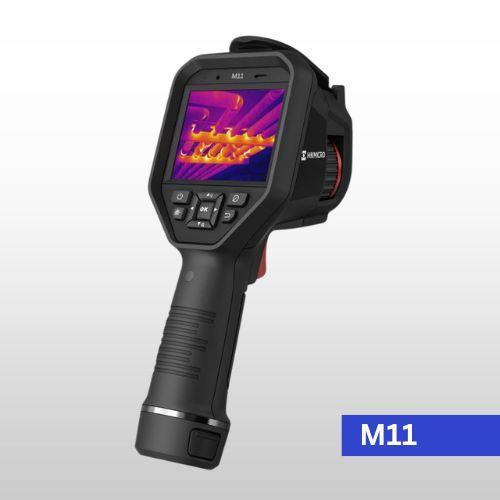

| M11W | 192 × 144 (27,648 pixels) | < 40 mK (@ 25 °C, F#=1.0) | 25 Hz |
| M11 | 192 × 144 (27,648 pixels) | < 40 mK (@ 25 °C, F#=1.0) | 25 Hz |
