B20S Compact Thermal Camera

Name: B20S Compact Thermal Camera
Brand: OBIAT Electronics Pty Ltd

Supplier: OBIAT Electronics Pty Ltd

The HIKMICRO B20S Compact Thermal Camera, perfect for professionals on the go!

Compact and easy to use for daily thermal imaging operations.

Receive 1-3 days from order

Key Features

The B20S Handheld Thermal Imager offers a range of advanced features designed to enhance your thermal imaging experience.

New SuperScene Mode: Automatically adjusts scene profiles to simplify inspections, allowing you to focus on findings rather than setup.
Smart SuperScene: Utilises AI to analyse thermal images, flagging anomalies such as water leaks and insulation gaps, transforming raw data into actionable insights.
High Image Quality: Features a highly sensitive VOx detector with NETD < 40 mK, a 3.2" LCD screen, and 256x192 thermal resolution for unmatched clarity.

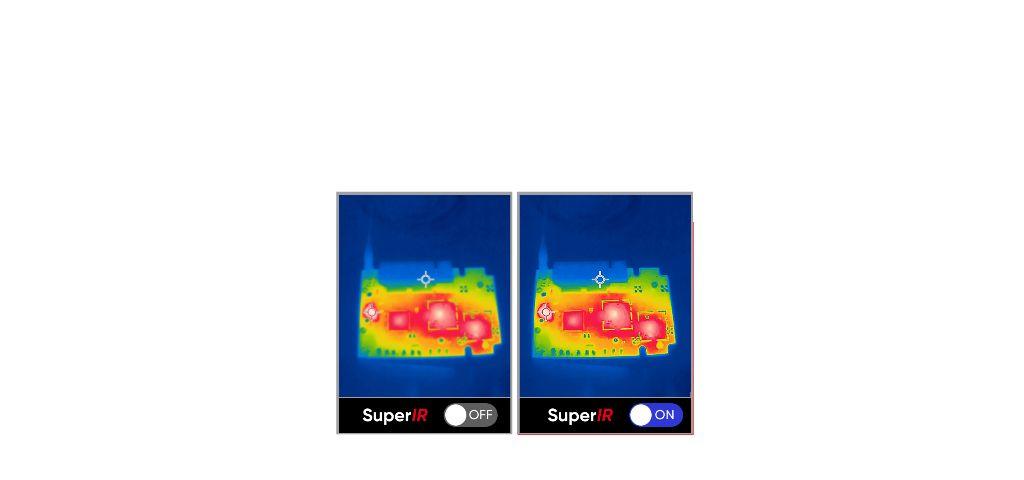

Enhanced Thermal Clarity with SuperIR: Upscales thermal images to 640 x 480 resolution, providing smooth 25 Hz image frequency for live viewing and photo capture.

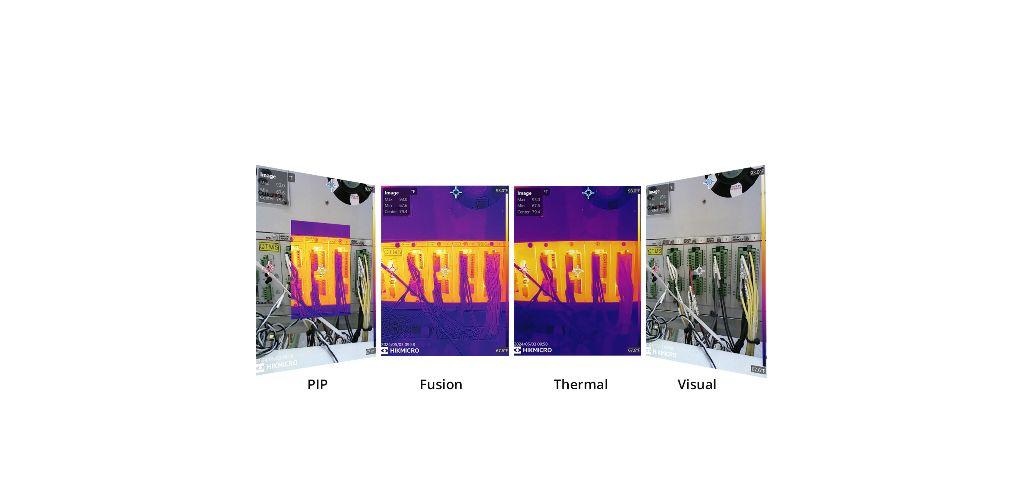

4 Image Modes: Offers Thermal, Fusion, PIP, and Optical modes to suit your viewing preferences.
Full-screen Temperature Measurement: Captures full-screen radiometric images and tracks temperature anomalies with accuracy from -20°C to 550°C.
Wi-Fi Connectivity: Connects to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App for easy image sharing.
Optional Macro Mode: Allows detailed temperature readings on small objects using a clip-on macro lens.
High Temperature Alarm: Provides audio and visual alerts for high temperatures with a built-in speaker and flashlight.
Fast Image Frequency: Delivers smooth video and measurements with a 25 Hz frequency, ideal for various inspection scenarios.
HIKMICRO Analyzer Software: Offers flexible analysis options and report generation for thermographic information.

Technical Specifications

Below are the detailed specifications of the B20S Handheld Thermal Imager.

Specification	Details
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 µm
Spectral Range	7.5 to 14 µm
Focal Length	3.6 mm
F-number	F1.0
Field of View (FOV)	37.2° × 50.0°
Spatial Resolution (IFOV)	3.3 mrad
Focus Mode	Focus Free
SuperIR	Yes, on captured images and live view
Distance to Spot Ratio (D:S)	45:1
Min. Focus Distance	0.3 m
Visual Camera	1600 × 1200 (2 MP)
Display	480 × 640 Resolution, 3.2" LCD Screen
Screen Brightness	Manual
Image Modes	Thermal/Visual/Fusion/PIP
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Blue Yellow
Object Temperature Range	-20°C to 150°C, 100°C to 550°C
Accuracy	Max. (± 2°C/3.6°F, ± 2%)
Level and Span Mode	Auto/Manual
SuperScene Mode	Custom, Water Leak, Insulation, Floor Heating, Electrical Faults, Solar Panel, Macro Mode, Insulation Pro, Condensation
Smart SuperScene Alarm	Water Leak, Insulation, Floor Heating
Alarm	Flashing Alarm, Audible Warning, Alarm Mode Palettes

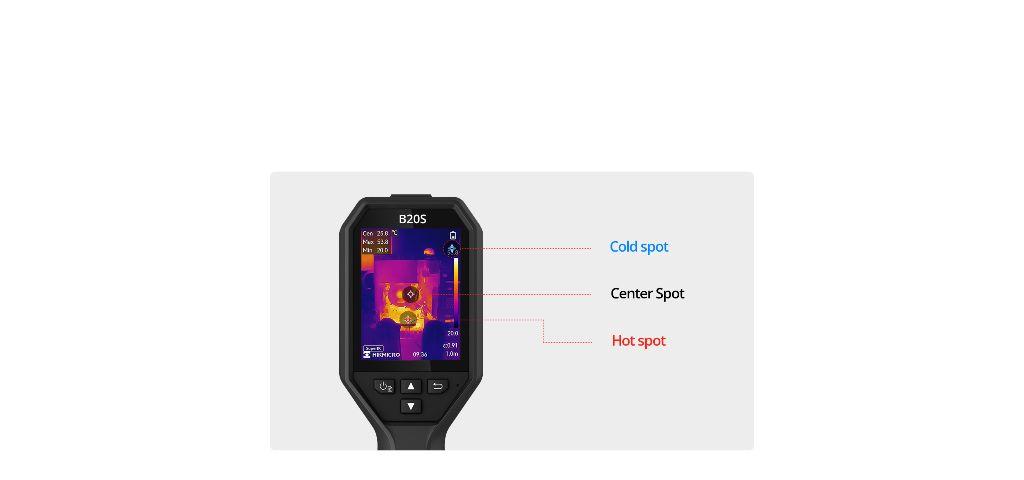

Temperature Measurement Mode	Measurements presets (center spot, max spot, min spot, off)
Storage Media	Built-in 64 GB eMMC
Image Storage Capacity	Max 140,000 Images
Video Storage Capacity	MP4 Approx. 558h, HRV Approx. 98h
Video File Format	MP4, HRV
Image File Format	Radiometric JPEG
Radiometric Infrared-Video Streaming	Over UVC and Wi-Fi
Wi-Fi	802.11 b/g/n (2.4GHz)
USB Interface	USB Type-C
Battery Type	Rechargeable Li-ion Battery
Battery Operating Time	Approx. 6 hours
Battery Charging Time	Approx. 3 hours fully charged
Protection Level	IP54
Drop Test Height	2 m
Working Temperature Range	-10°C to 50°C
Storage Temperature Range	-20°C to 60°C
Relative Humidity	< 95% non-condensing
Weight	Approx. 380 g
Dimension	221.7 × 73.5 × 123.8mm
Tripod Mounting	UNC ¼”-20
Power Supply	USB-C (5V/2A)
LED Light	Yes

What's in the Box

The B20S Handheld Thermal Imager comes with essential accessories to get you started right away.

Wrist Strap
USB-A to USB Type-C Cable
Calibration Certificate
Printed Quick Start Guide
