STH936C-V TelehandlerGet latest price

Overview

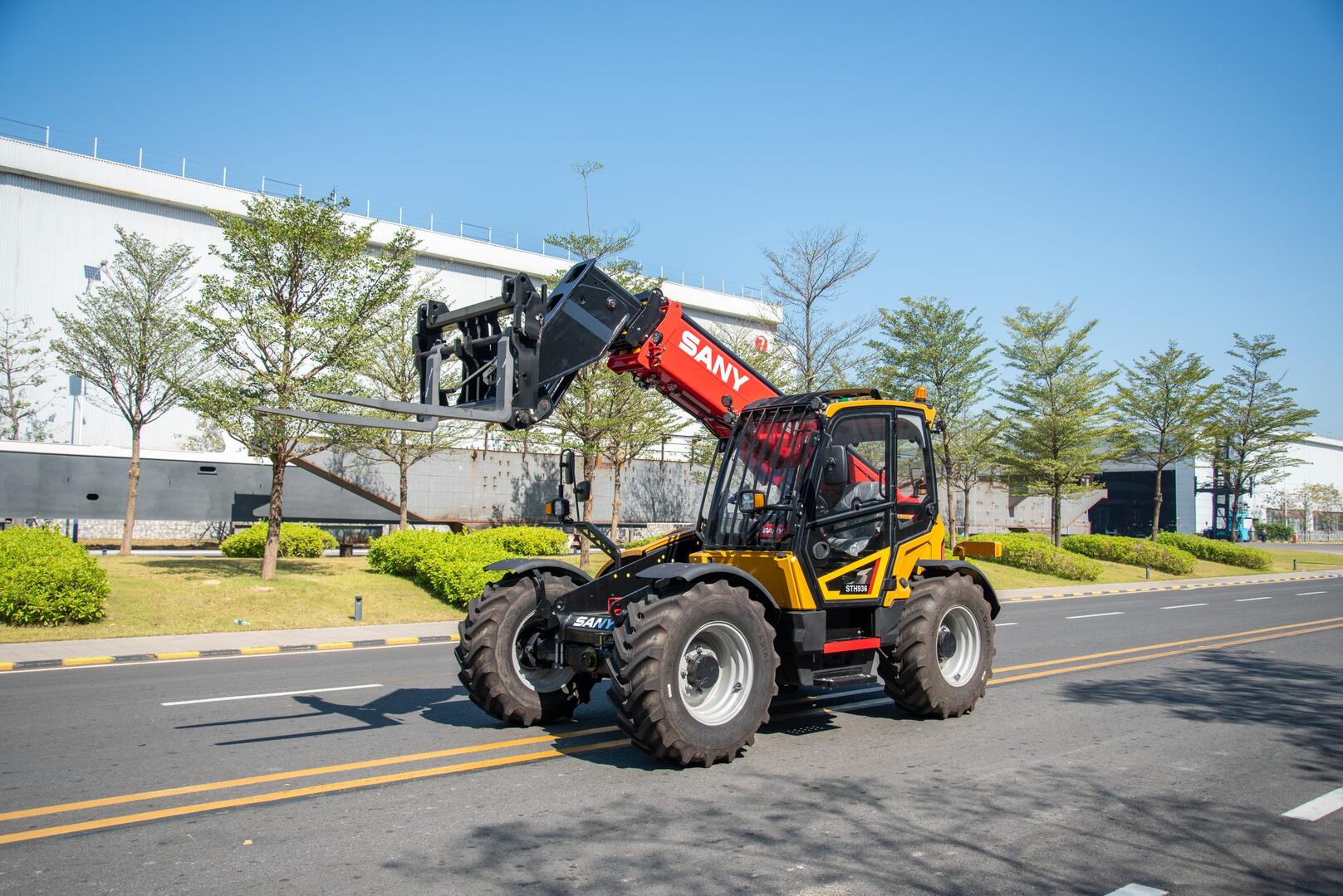

The SANY STH936C-V telehandler is engineered to bridge the gap between compact and heavy-lift telehandlers. It provides strong lifting capability, extended reach, and precise control for demanding construction and materials-handling applications. With a 3,600 kg lift capacity and a 9-metre maximum lift height, this telehandler is designed for productivity and stability across varied site conditions.

Key Features

• 3,600 kg maximum lift capacity with a 9 m lift height, ideal for versatile material handling.
• 9,100 kg operating weight for enhanced stability during reach operations.
• 55 kW Deutz engine delivering 340 Nm of torque for strong performance.
• High-visibility design with LED work lights and reversing camera for improved site awareness.
• Germany-designed ROPS/FOPS-certified cab with a 10-inch touchscreen and backlit keypad for intuitive control.

Technical Specifications

Below are the detailed technical specifications of the SANY STH936C-V telehandler.

Specification	Details
Engine	Deutz TD3.6 Stage 5
Rated Power	55 kW / 2,200 rpm
Maximum Lifting Height	9,600 mm
Overall Weight	9,100 kg
Maximum Forward Reach	6,444 mm
Hydraulic Flow	95 l/min
Hydraulic Pressure	270 bar
Steering Modes	Three steering modes with a turning radius of 3,850 mm

Durability

The STH936C-V is built with a reinforced chassis and a heavy-duty boom structure designed for long service life in demanding environments. Hydraulic hoses are routed internally for protection, reducing exposure to site damage and improving long-term reliability.

Performance

This telehandler delivers strong lifting performance, extended reach, and smooth hydraulic control for efficient material handling over obstacles and across complex sites.

Ease of Operation

Designed for operator comfort, visibility, and intuitive machine control, the STH936C-V supports productive operation across long shifts and challenging environments.

Low Cost of Ownership

The STH936C-V is engineered to deliver predictable running costs through simplified maintenance, durable components, and efficient engine design. It features 500-hour service intervals, no AdBlue or DPF system, and is backed by a 3-year / 3,000-hour warranty.

Safety

Safety systems are integrated to ensure controlled operation and operator awareness in demanding site conditions. Features include a Load Moment Indicator (LMI) strip light, ROPS/FOPS-certified cab, high-visibility seatbelt, and a reversing camera.
