STH1440C-T3 TelehandlerGet latest price

Overview

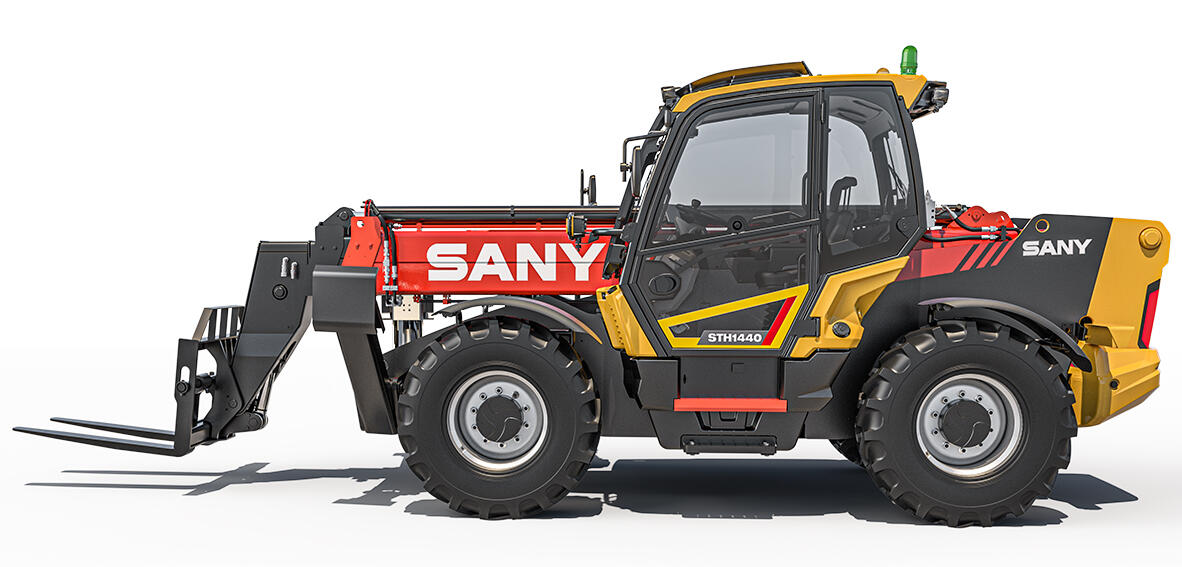

The STH1440C-T3 telehandler is engineered to excel in high-reach applications, providing safe and stable lifting capabilities. With a robust lifting capacity of 4,000 kg and a maximum lift height of 14 meters, it is ideal for complex material handling tasks in construction and industrial settings. Its advanced design includes front stabilisers and a ±9-degree frame levelling system, ensuring enhanced safety and operational confidence on uneven terrain.

Key Features

• 4,000 kg maximum lift capacity with 14 m lift height for versatile applications.
• Front stabilisers and ±9-degree frame levelling for superior stability on uneven surfaces.
• Maximum forward reach of 9,690 mm for extended access and flexibility.
• Chain-free hydraulic boom extension for smooth and precise operation.
• 55 kW Deutz engine delivering strong torque without the need for exhaust additives.

Technical Specifications

The STH1440C-T3 is equipped with advanced features and specifications to meet the demands of high-reach operations.

Engine	Cummins QSF 3.8 T3
Rated Power	74 kW / 2,200 rpm
Maximum Lifting Height	13,970 mm
Overall Weight	10,980 kg
Hydraulic Flow	100 l/min
Hydraulic Pressure	280 bar

Durability

Built for high-load applications, the STH1440C-T3 features a reinforced structure and heavy-duty components designed for long-term reliability. Its stabiliser system and robust construction provide a stable foundation for demanding lifting operations.

• Heavy-duty 10,980 kg operating weight ensures strong ground stability.
• Graphite-impregnated bronze bushings in stabilisers extend service life.
• Reinforced chassis designed for high-reach lifting applications.
• Durable hydraulic and structural components reduce long-term wear.
• Engineered for extended service life in harsh site conditions.

Performance

The STH1440C-T3 delivers strong lifting capability, smooth hydraulic response, and exceptional stability for high-reach applications. Its advanced hydraulic system ensures controlled performance even under heavy load conditions.

• 4,000 kg lifting capacity for heavy-duty applications.
• 14 m maximum lift height for elevated work tasks.
• 9,690 mm forward reach for extended working range.
• Capable of lifting 2,500 kg to full height with stabilisers deployed.
• 1,250 kg capacity at maximum forward reach for controlled load handling.

Ease of Operation

Designed for operator comfort, clarity, and precision, the STH1440C-T3 provides a premium cab environment and intuitive control interface for complex lifting operations.

• Air-conditioned cab improves comfort in all working conditions.
• Bluetooth radio and USB charging enhance operator convenience.
• 10-inch touchscreen provides access to load charts and diagnostics.
• Ergonomic controls reduce operator fatigue during long shifts.
• Clear visibility supports accurate load placement at height.
• Intuitive interface improves operational efficiency and safety.

Low Cost of Ownership

The STH1440C-T3 is engineered to minimise operating costs through efficient engine design, simplified servicing, and durable components built for long-term use.

• 55 kW Deutz engine reduces fuel costs and eliminates exhaust additives.
• Efficient hydraulic system supports reduced energy consumption.
• Three-sided engine access improves serviceability and reduces downtime.
• Durable components extend service intervals and reduce repair needs.
• Designed for predictable ownership costs across fleet operations.

Safety

Safety systems are integrated to ensure controlled operation and stability during high-reach lifting tasks on uneven terrain.

• Load weight monitoring system improves lifting safety and stability.
• Automatic speed limitation enhances load retention and control.
• Front stabilisers improve operational stability at height.
• Frame levelling system (±9°) ensures safe operation on uneven ground.
• ROPS/FOPS-certified cab protects operator in hazardous environments.
• Stable high-reach design supports safe load handling at elevation.
