Scrap Metal Hammer Mill | Ferrous & Non-ferrous Metals

Name: Scrap Metal Hammer Mill | Ferrous & Non-ferrous Metals
Brand: Enerpat

Supplier: Enerpat

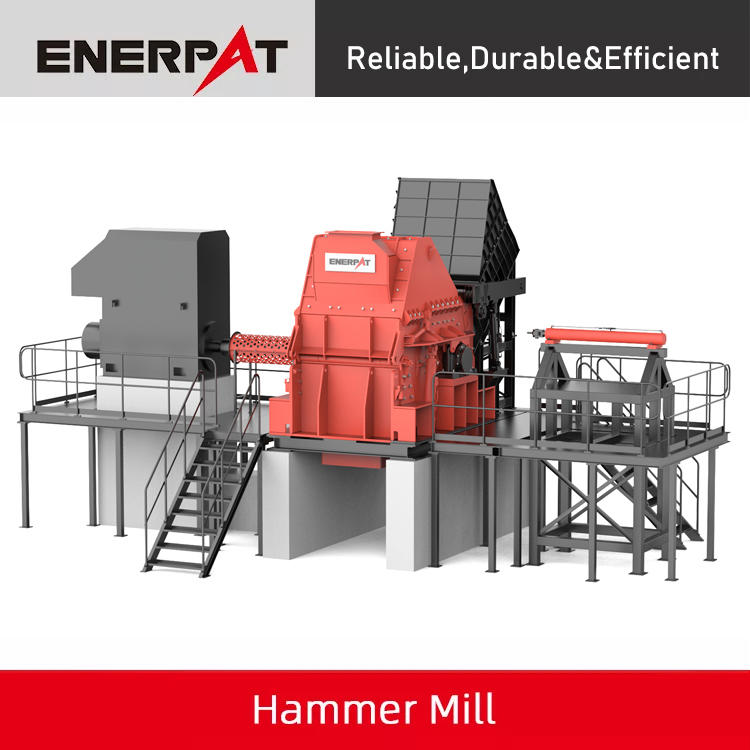

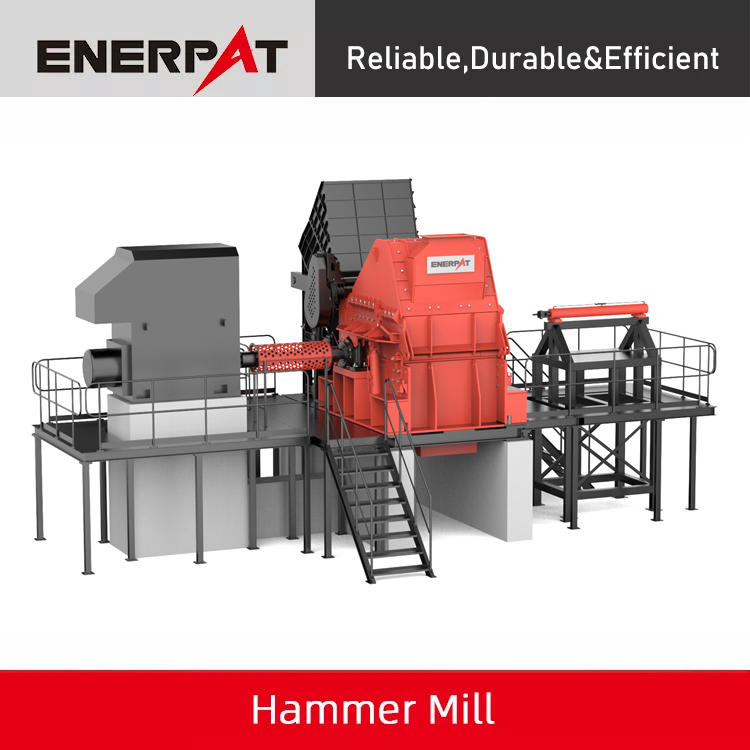

A robust hammer mill shredder engineered for efficient recycling of ferrous and non-ferrous metals like scrap aluminium, steel, and vehicles, offering high throughput and clean separation.

High-capacity, efficient recycling with clean separation of steel, aluminium, and non-metals.

General Overview

Engineered for recycling, this hammer mill handles scrap-metal feedstock such as auto engines, wheels, body shells, electric motors, mixed steel, aluminium scrap, small home appliances, and light scrap steel. Integrated conveyor and screening systems ensure swift and efficient separation into iron, steel, aluminium, and non-metal fractions.

Performance and Capacity

Processes 5 - 30 tonnes per hour, confirmed at 20 tonnes/hour on scrap iron.
Suitable for continuous heavy-duty operation, reliably handling tough mixed materials.

Key Features

High-density, high-purity metal output suitable for remelting.
HARDOX 500/NM500 wear plates ensure longevity of the cutter shaft and crushing chamber.
Different hammer configurations for different material types, with 360° rotatable high-chromium steel hammers to prevent jamming.
Integrated sensors automatically detect and discharge material that cannot be processed.
Quick and easy replacement of screens and hammers, assisted by hydraulic system and convenient access designs.
Heavy-duty springs effectively reduce operational vibration.
Advanced electric system includes Siemens/Schneider PLC and soft starter for intuitive operation and safety.

Technical Specifications

Model	Main Power (kW)	Rotor Speed (rpm)	Shaft Length (mm)	Feeding Width (mm)	Motor Connection	Number of Hammers	Output (Steel, t/h)
MSE-H800	110/132	480	762	760	V-Rubber Belt	10	2-3
MSE-H1000	220	480	1016	1000	V-Rubber Belt	10	8-10
MSE-H1300	355	594	1270	1200	Universal Joint	10	8-12
MSE-H1800	560	594	1778	1700	Universal Joint	10	10-15
MSE-H2000	750-1120	594	2032	2000	Universal Joint	10	15-30
MSE-H2600	1500-4410	594	2641	2600	Universal Joint	10	30-160

Engineering & Certifications

Based on UK core technology
Backed by full quality guarantee
CE and ISO certified

Application

The shredded output is ideally suited for remelting processes, ensuring high-value recycling efficiency for scrap yards, recycling plants, and metal processing facilities.
