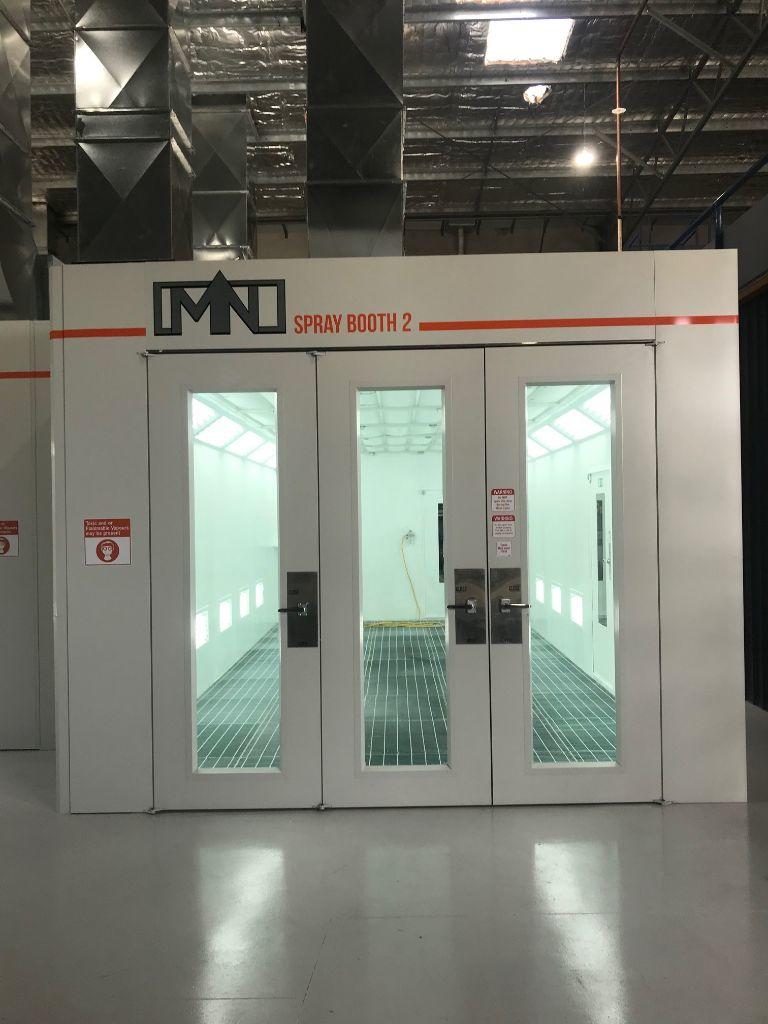

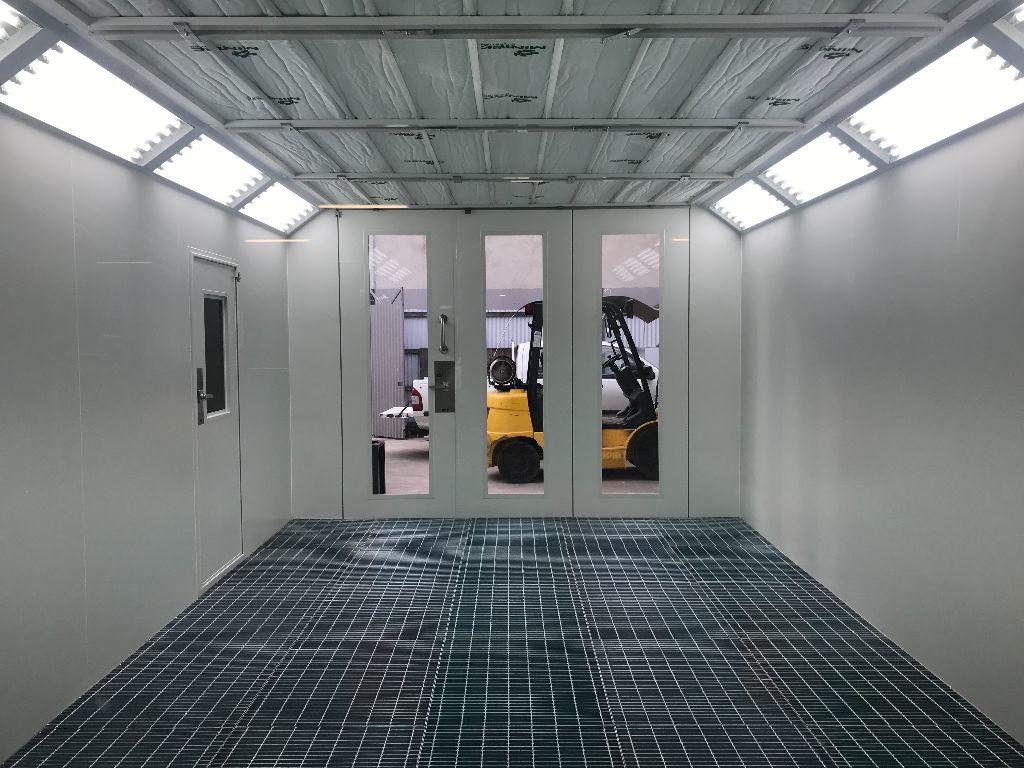

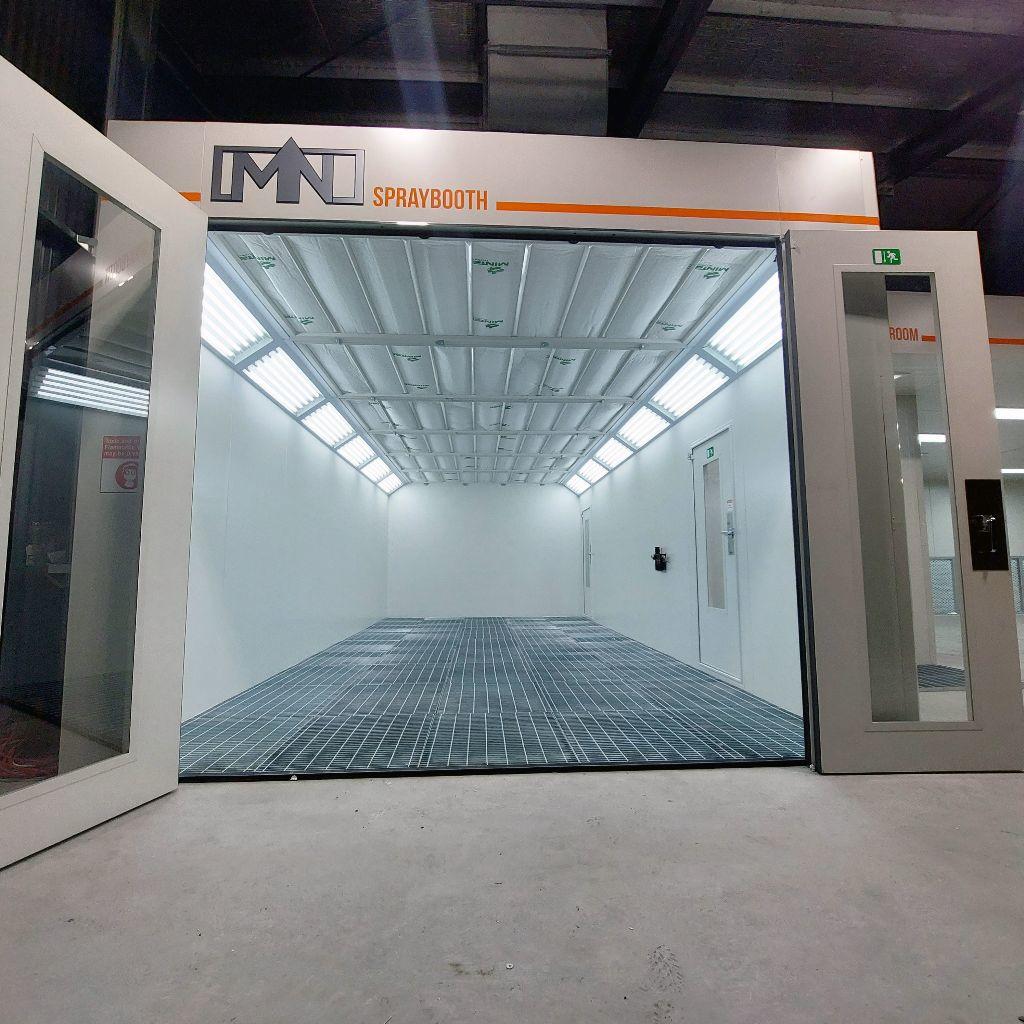

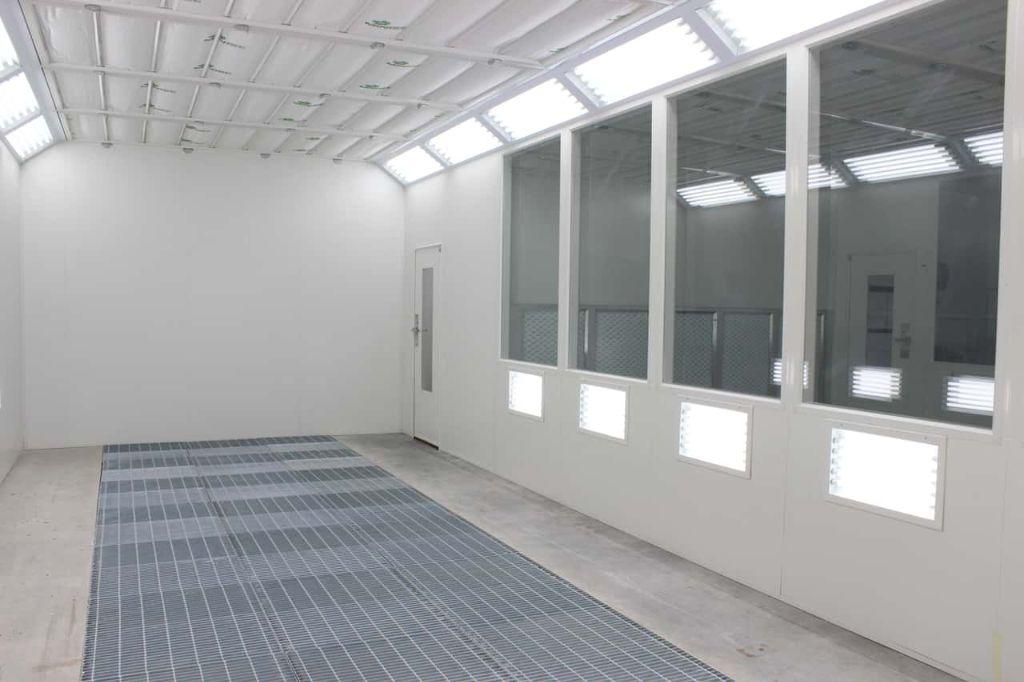

Automotive Full Downdraft Spray Booth | Inground Get latest price

Specifications

• Power supply: 415V / 3-phase

• Base: In-ground extraction pit, galvanised steel grates, rated to 2.5T
• Inlet fan: 760mm centrifugal backward curved impeller, 5.5kW, variable speed drive
• Exhaust fan: 860mm fibreglass reinforced nylon, 45° pitch, 4kW 3-phase motor
• Exhaust floor: Multi-layer optimum airflow sub-floor with mesh inlays
• Inlet filters: Mintec 600G fibre inlet filter
• Exhaust filters: 3D Polycomb Paint Pocket (full floor)
• Lighting: LED T8 6000K daylight tubes
• Control panel: AS/NZS 4114 compliant, semi-auto analogue
• Fuel type: LPG or Natural Gas compatible

Features

• In-ground extraction pit for maximum true downdraft performance
• Multi-layer optimum airflow sub-floor with mesh inlays
• Energy efficient Omron variable speed drive on inlet fan
• Direct fired gas heating — LPG or Natural Gas compatible
• Steel-framed insulated entry doors with laminated glazed glass
• AS/NZS 4114 compliant control panel with pre and post purge timers

Applications

• Automotive spray painting and refinishing
• High-end detailing and prestige vehicle finishing
• High volume production facilities requiring premium finish quality

Why Choose This Product

• Maximum downdraft performance with recessed in-ground extraction pit
• Full floor 3D Polycomb filtration for superior overspray capture
• The benchmark setup for professional automotive refinishing
• 100% Australian Made & AMAG Certified
• Backed by MN Spraybooths sales and service team
