Automotive Full Downdraft Spray Booth | Above GroundGet latest price

Specifications

• Power supply: 415V / 3-phase
• Cabin: 50mm premium interlocking EPS panel, Surfmist finish

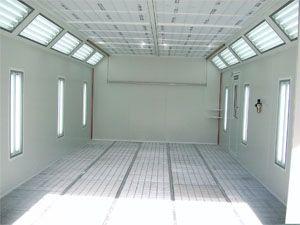

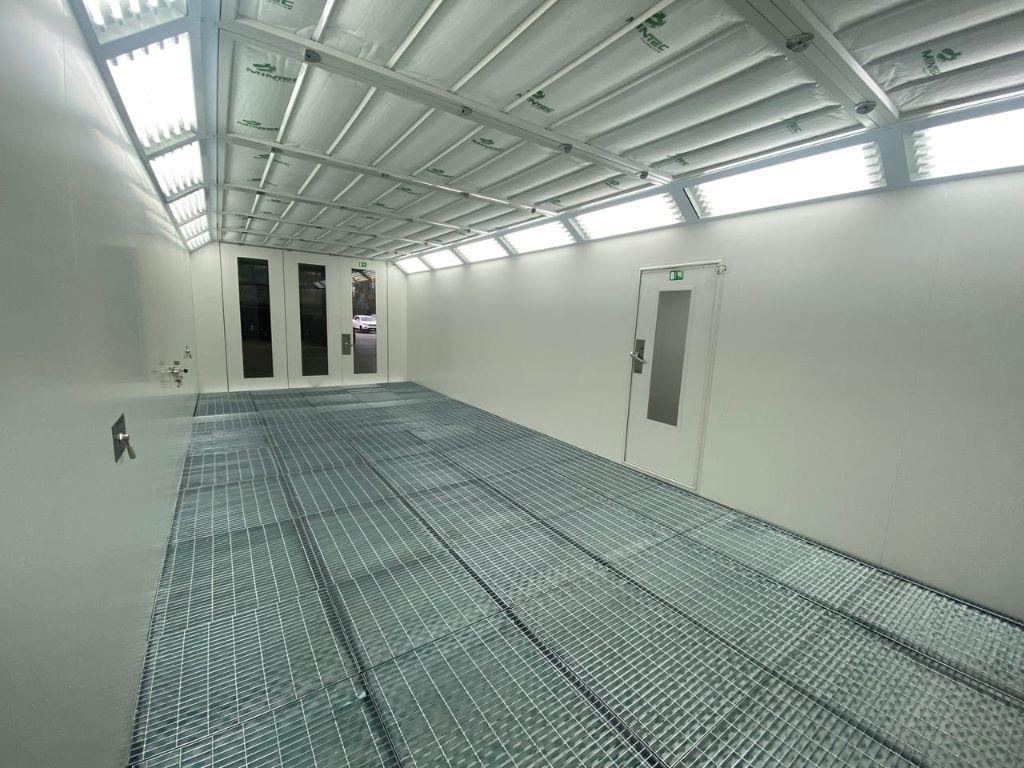

• Base: Above-ground, galvanised steel grates, rated to 2.5T with internal pneumatic ramps
• Inlet fan: 760mm centrifugal backward curved impeller, 5.5kW, variable speed drive
• Exhaust fan: 860mm fibreglass reinforced nylon, 45° pitch, 4kW 3-phase motor

• Inlet filters: Mintec 600G fibre inlet filter
• Exhaust filters: 3D Polycomb Paint Pocket
• Lighting: 50 x LED 6000K daylight tubes
• Control panel: AS/NZS 4114 compliant, semi-auto analogue or touch screen
• Fuel type: LPG or Natural Gas compatible

Features

• True downdraft airflow for superior overspray control
• Energy efficient Omron variable speed drive on inlet fan
• Direct fired gas heating — LPG or Natural Gas compatible

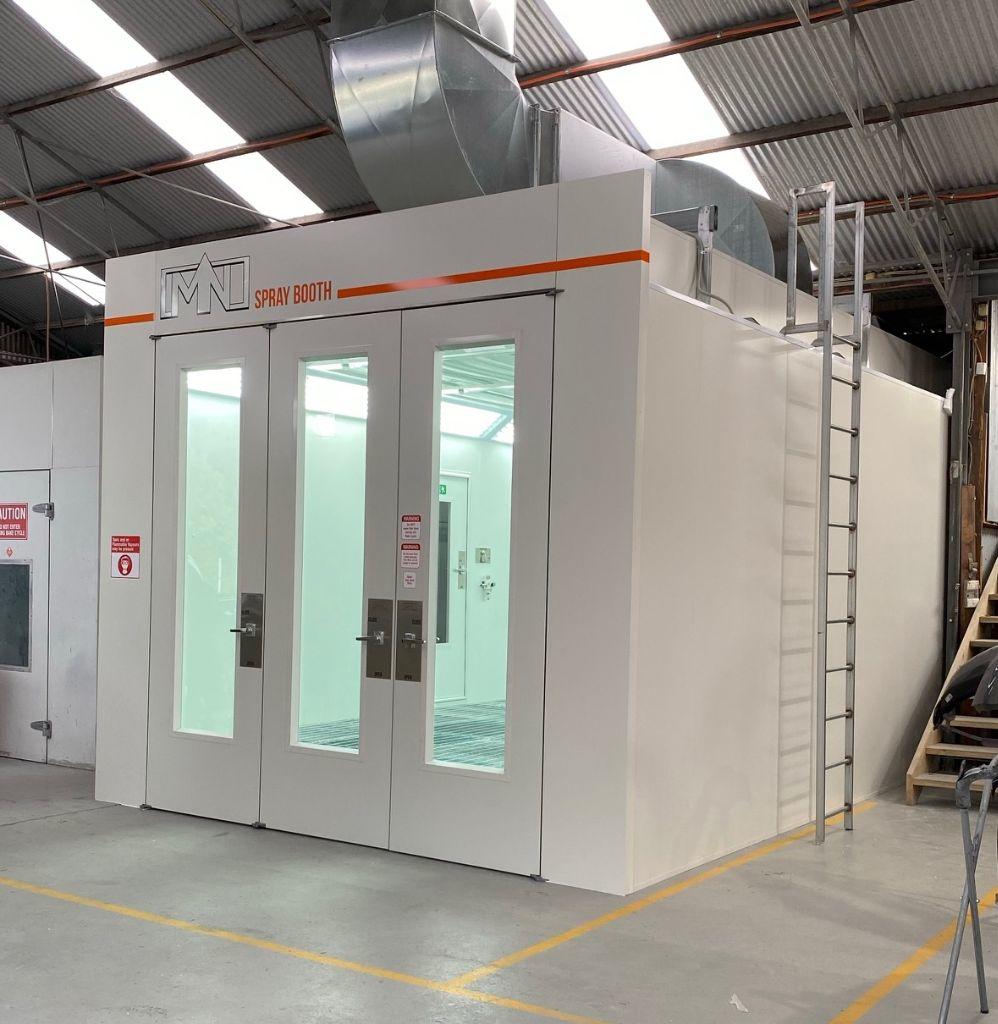

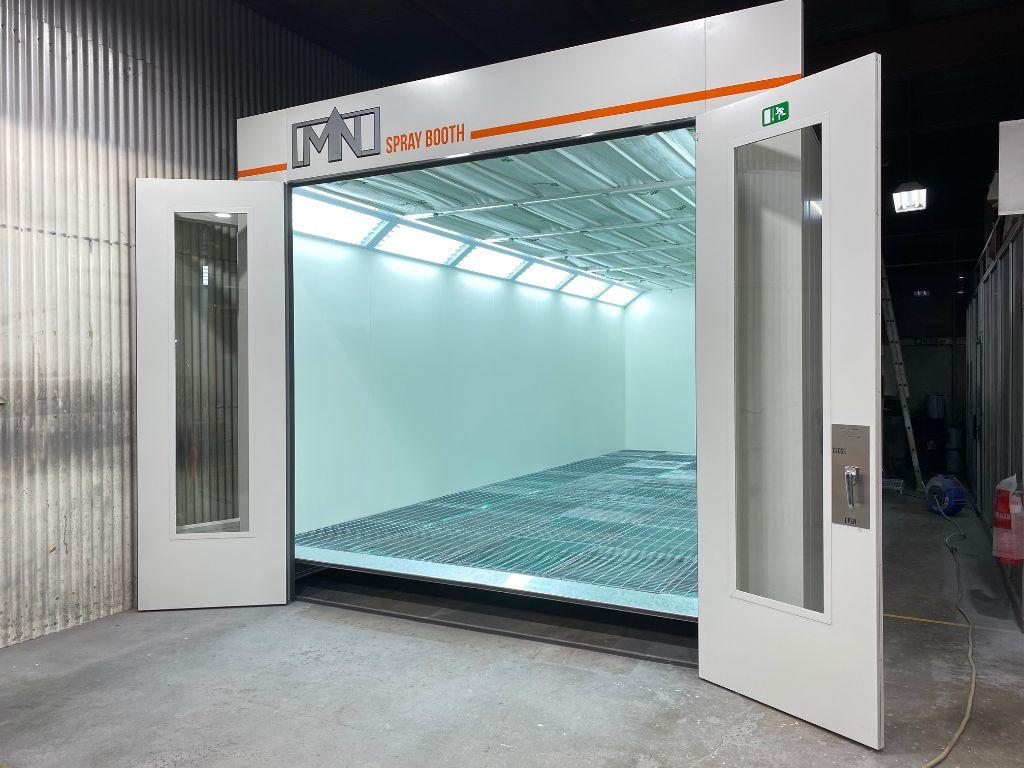

• Steel-framed insulated entry doors with laminated glazed glass
• Internal pneumatic ramp system
• AS/NZS 4114 compliant control panel with pre and post purge timers

Applications

• Automotive spray painting and refinishing
• Panel beating and smash repair
• Medium to high volume production finishing

Why Choose This Product

• Superior downdraft airflow for cleaner, more consistent finishes
• No pit required — above-ground base installs on existing concrete
• Fully configurable: ramps, rear wall, exhaust direction, control system
• 100% Australian Made & AMAG Certified
• Backed by MN Spraybooths sales and service team
