Product Overview
The Zervi Chute Colour Sorter utilizes advanced industry-leading sorting technology to increase both the accuracy and efficiency of your product output in grain processing. This system is engineered for exceptional performance, minimizing reject rates while maximizing product quality.
Key Features
- High resolution colour CCD image system
- Flexible configuration and variable light source
- Dedicated image processing algorithm
- Unique trough configuration
- High quality solenoid valve for excellent rejection rate

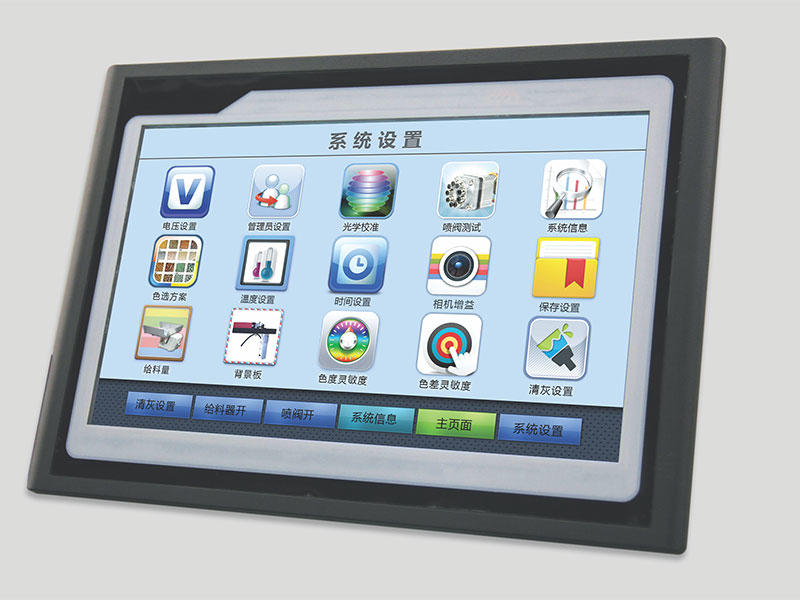

- Simple, easy-to-use touchscreen interface
- Premium LED lighting system
- Available from single to 12 chute models to accommodate different processing demands
| MODEL |
6SXZ-126S |
6SXZ-189S |
6SXZ-252S |
6SXZ-315S |
6SXZ-378S |
6SXZ-441S |
6SXZ-504S |
6SXZ-630S |
| Weight (kg) |
614 |
789 |
834 |
1052 |
1265 |
1457 |
1637 |
2018 |
| Power (kW) |
1.5 |
2.2 |
2.9 |
3.6 |
4.3 |
4.9 |
5.6 |
7.0 |
| Output (t/h) |
0.5-4.0 |
1.0-5.0 |
1.5-6.0 |
2.0-7.0 |
2.5-8.0 |
3.0-9.0 |
3.5-10.0 |
4.0-10.0 |
| Power Input |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
| Dimensions (mm) |
1244x1504x2090 |
1558x1504x2090 |
1872x1504x2090 |
2186x1504x2090 |
2500x1504x2090 |
2814x1504x2090 |
3128x1504x2090 |
3756x1504x2090 |
Applications
Designed specifically for grain processing environments where precision sorting is critical to product quality and throughput.
Support & Enquiries
For further information or enquiries, contact Australia: 1800 354 302 or New Zealand: 0800 777 704.
To contact Inspection Systems about Zervi Chute Colour Sorter use Get a quote.
