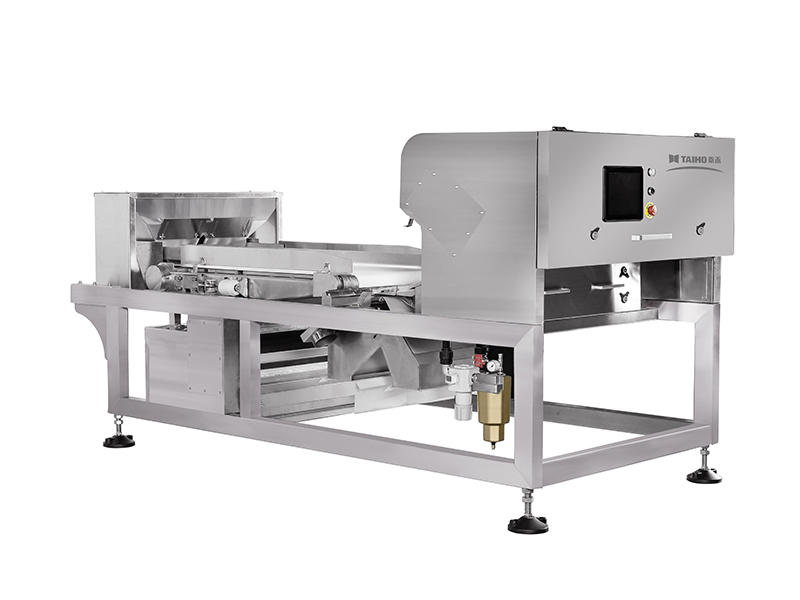

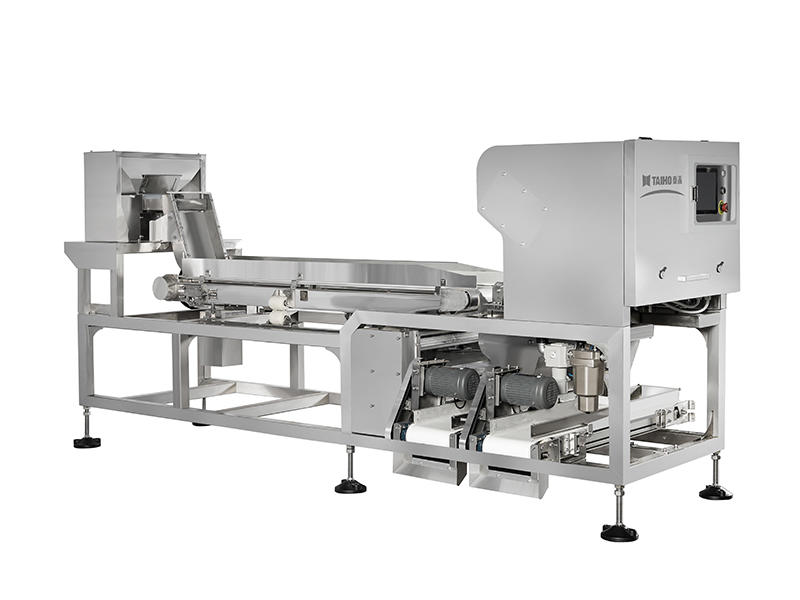

TAIHO Belt Colour Sorters set the standard with high accuracy and efficiency for sorting tasks, specifically designed to improve process outcomes in various product lines. Featuring leading-edge reject systems and a premium NIR wide spectrum illumination system, this equipment is engineered to deliver consistent, superior results.
| MODEL | 6SXL-300KD2Y | 6SXL-600KD2Y | 6SXL1200KD2Y | 6SXL-300ZD2Y | 6SXL-600ZD2Y | 6SXL-1200ZD2Y |
|---|---|---|---|---|---|---|
| Channels | 63 | 126 | 252 | 63 | 126 | 252 |
| Power (kW) | 2.5 | 2.8 | 4.5 | 2.5 | 2.8 | 4.5 |
| Supply Voltage (V) | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Air Pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Air Consumption (m³/mm) | 0.5-1.0 | 0.8-1.5 | 1.2-2.1 | 0.5-1.0 | 0.8-1.5 | 1.2-2.1 |
| External Dimensions (mm) | 3530x1760x2066 | 3530x2100x2066 | 3530x2700x2066 | 3325x1315x1520 | 3325x1630x1520 | 3325x2260x1520 |
| Weight (kg) | 800 | 1080 | 1510 | 400 | 600 | 1070 |
| Output (t/h) | 1.5-3.0 | 3.0-5.5 | 5.0-11.0 | 1.5-3.0 | 3.0-5.5 | 5.0-11.0 |
| Sorting Accuracy (%) | >99 | >99 | >99 | >99 | >99 | >99 |
| Optimal Ratio of carryover | >8:1 | >8:1 | >8:1 | >8:1 | >8:1 | >8:1 |
For further information or to request a sales enquiry, contact:
Australia: 1800 354 302
New Zealand: 0800 777 704
To contact Inspection Systems about Belt Colour Sorter use Get a quote.
