Wood Chipper Mulcher | R185

Name: Wood Chipper Mulcher | R185
Brand: Chipstar Australia

Supplier: Chipstar Australia

1/6

Wood Chipper Mulcher | R185

The R185 Chipper mulcher or (bio-shredder) is a compact machine with a variety of options lends itself both to a private and semi-professional use.

12 Recent ViewsIn Stock

90mm diameter maximum and 5 – 6 m³/h capacity.

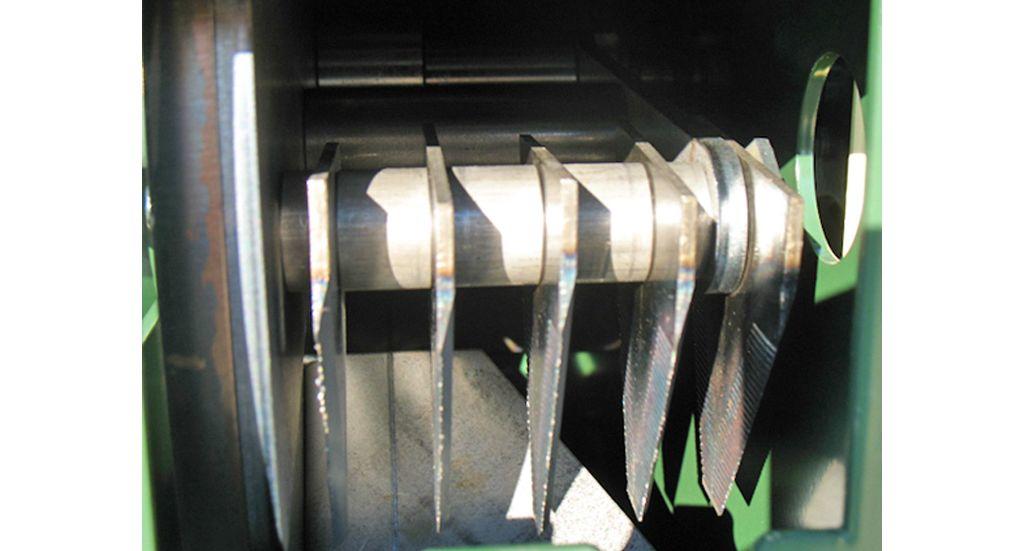

The shredding group is formed by a disc with 2 blades at the front which pre-cut the material and by 10 mobile hammers at the back which refine the material. The shredding width can be further reduced by applying a mobile sieve.

The 4 back blades guarantee the perfect expulsion of the material which goes through a 1.7 m high discharge pipe which can be turned 270° and it is possible to adjust its discharge distance. This cutting system enables you to obtain a very fine material which can also be used for heating systems for minced material.

The various models are available with or without a hydraulic feeding roller and 9 or 13 hp petrol engine.

Also available R225 Models, with 90mm diameter maximum and 7 m³/h capacity, and R240 Models with 90mm diameter maximum and 8.5 m³/h capacity.

Specifications

Engine / Power Options

HONDA GX270 9hp 6.5kW
Tractor

Basic Equipment

Rotor with 2 front steel blades

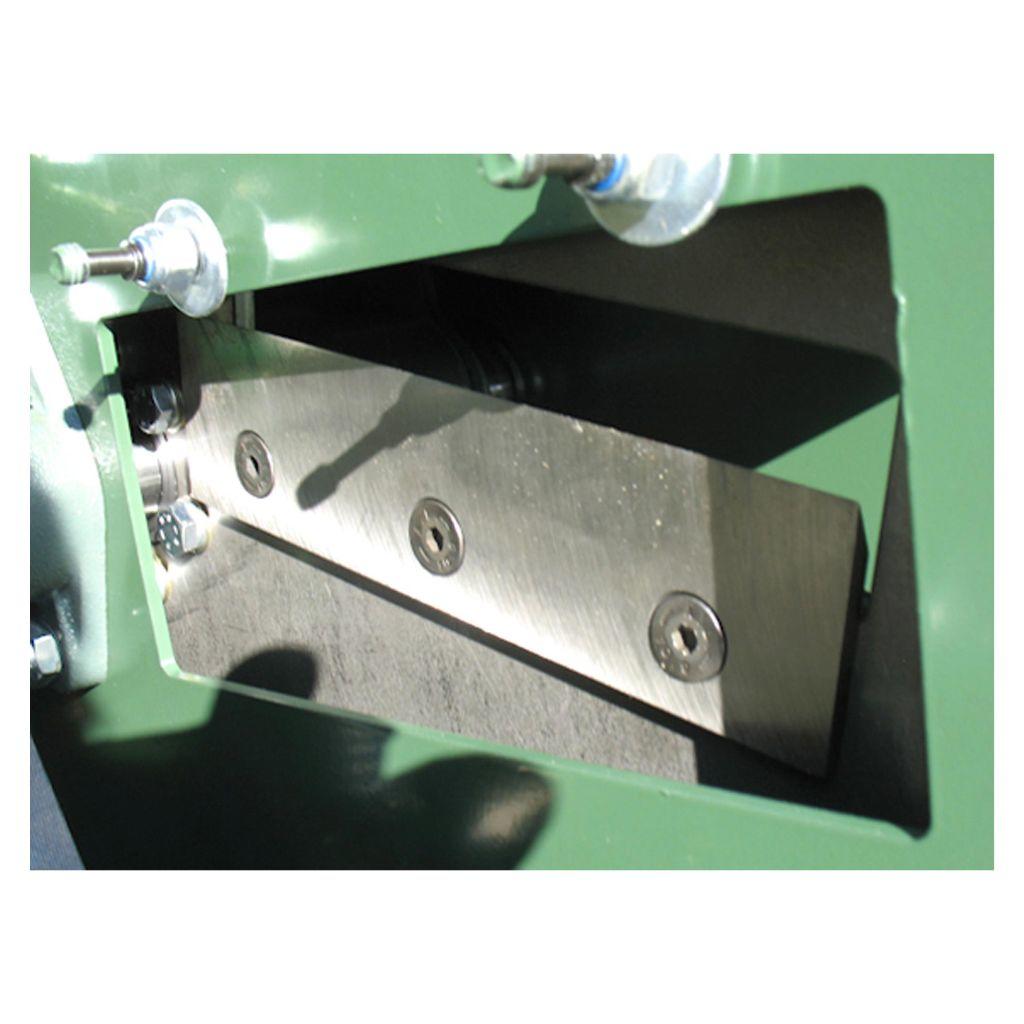

+ 1 adjustable steel counter blade
10 refining steel hammers Adjustable refining screen
1700 mm high 270° adjustable discharge pipe
Transmission with flexible joint
Hydraulic roller with adjustable speed options

Accessories

Turnable pipe extension of 40 cm
CE certified cardan shaft with free wheel

Usability

Ø To shred	90 mm
Production capacity	5 to 6 m³/h
Length	2000 mm (petrol/PTO)
Width	910 mm (electric/petrol)
Height	1700 mm
Feeding Height	1000 mm
Feed opening	700 x 750 mm
Blades No.	2
Counter Blades No.	1
Hammer Blades	10
Weight	220 kg (petrol) 180 kg (PTO)
