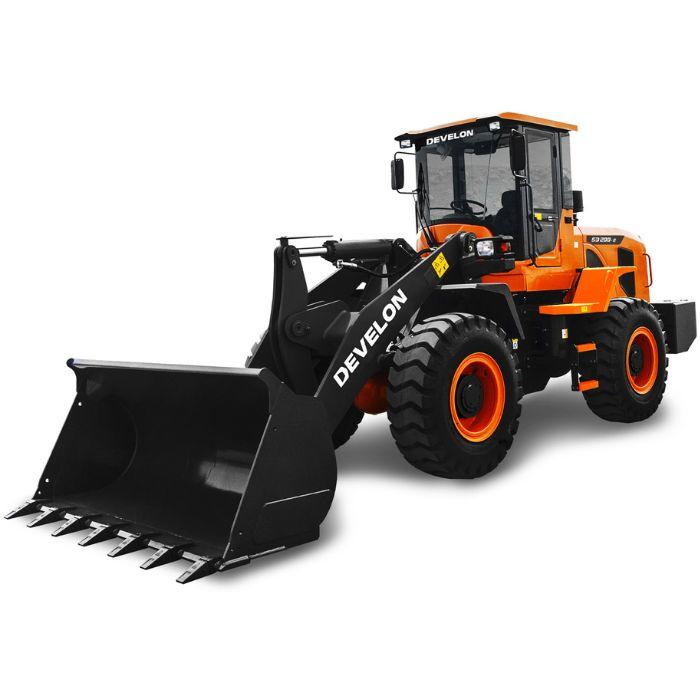

Wheel Loader | SD200-2Get latest price

Specifications of this product

• Operating Weight: 10.3 ton
• Bucket Capacity (SAE HEAPED): 1.8 m³
• Engine Power (SAE J1995 Gross): 92/2,300 kW/rpm
• Engine Model: Weichai WP6G125E23
• Height at Bucket Pivot Point: 3,795 mm
• Breakout Force: 93±7 kN
• Turning Radius at Tire Center: 5,370 mm
• Tires: 17.5-25-12PR
• Overall Length: 7,010 mm
• Overall Width: 2,520 mm
• Overall Height: 3,180 mm
• Static Tipping Load(straight): 73 kN

Features of this product

• The fixed wheel transmission boasts stable performance, high reliability and conveniently agile operation.
• Longer wheel-base and arranged design to make center of gravity positioned rearward helps SD200-2 work more stable.
• Engine, transmission and axles are optimized and finely tuned for each other and produce powerful traction.
• The weichai engine is adopted for strong power and produces 92 kW at 2,300 rpm.
• The pumps with large displacement are equipped, which greatly increases working efficiency and decreases fuel consumption and noise, together with short total cycle time.
• More durable materials and technology were applied to machining gears.
• This components provides delicate control, less internal leak and longer service life.
• Used to monitor the hydraulic oil level more easily to reduce maintenance time, improving device service life-time.
• For enhanced safety rotating beacon is equipped in SD200-2 as standard, which gives the warning alarm while driving.
• Easy approach to the filters in the engine room and brake system for simple maintenance.
• Highest efficiency filters remove water, dust &particles to protect your engine optimally. Dual fuel filters reduce the risk of external engine contamination and lengthen the engine’s lifespan
