RTR05 Series Rotary Tillers

Name: RTR05 Series Rotary Tillers
Brand: E & MJ Rosher

Supplier: E & MJ Rosher

The RTR05 Series Rotary Tillers are designed for efficient soil cultivation, ideal for small-scale farming, landscaping, and gardens.

Designed specifically for subcompact tractors to deliver superior seedbed preparation in tight spaces.

Overview

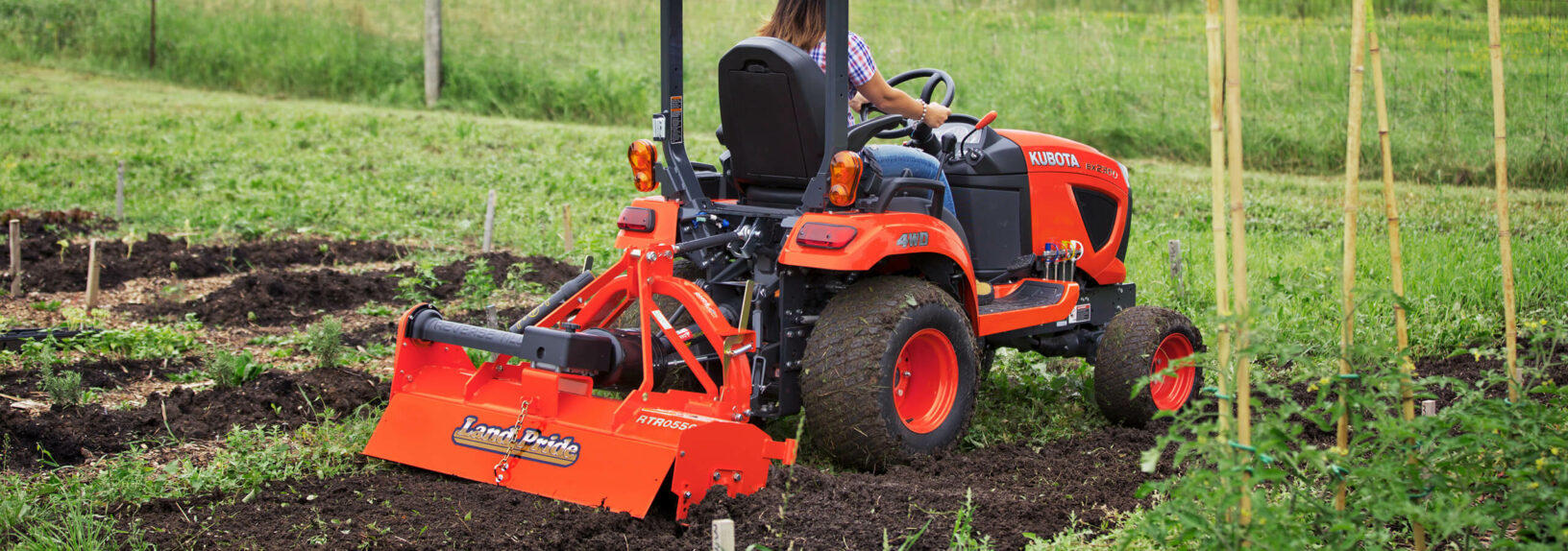

The RTR05 Series Rotary Tillers are lightweight and engineered for use with subcompact tractors such as the Kubota BX series. With a compact rotor and efficient blade layout, these tillers are perfect for seedbed preparation in smaller spaces.

Main Features

Lightweight and ideally sized for subcompact tractors.
Reverse rotation design for deeper penetration and superior soil cultivation, burying residue effectively.
Robust cast iron gearbox with lateral transmission for reliable power transfer.
PTO shaft fitted with a disc clutch to prevent gearbox overload.
Heat-treated blades for enhanced durability in tough soil conditions.
Monobloc frame with mechanical offset adjustments for straightforward operation.
Easy connections and adjustments for user convenience.

Specifications

	RTR0542	RTR0550
Power (maximum)	19 kW	19 kW
Weight	122 kg	135 kg
Number of Flanges	6	7
Skid Shoe Settings	4	4
Rotor Shaft Speed (with 540 rpm PTO)	230 rpm	230 rpm
PTO Driveline Category	2	2
PTO Driveline Protection	Off-centre shear bolt or slip clutch	Off-centre shear bolt or slip clutch
Gearbox Rating	19 kW	19 kW
Gearbox Speed	540 rpm	540 rpm
Gearbox Design	Cast iron housing/drain plug	Cast iron housing/drain plug
Drive Chain	#80 high tensile in oil bath	#80 high tensile in oil bath
Sprockets	Hardened teeth, splined centre	Hardened teeth, splined centre
Width (endplate to endplate)	107 cm	127 cm
Overall Width	118 cm	139 cm
Rotor Swing Diameter	33 cm	33 cm
Maximum Tilling Depth	16.5 cm	16.5 cm
