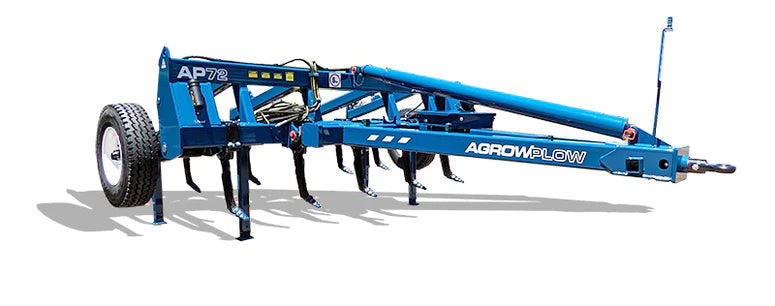

Heavy-duty frame and shank assembly for breaking deep compacted hardpans up to 450 mm. Key Features- Developed as a mid-size plough with heavy-duty 200x200x9 mm frame.
- Working widths up to 9 metres suitable for broadacre applications.
- #9 Shank Assembly designed to shatter deep, compacted hardpans up to 450 mm depth.
- Rigid recoil shank breakout force: 4,790 kg at the blade.
- Hydraulic recoil option breakout force: over 1,800 kg at the blade.
- Available as 9, 11, 15, or 19 shank models for customisation to operational needs.
Applications- Designed for mid-size farms and contractors engaging in soil renovation and deep tillage.
Construction- Robust steel frame built for Australian broadacre conditions.
- Innovative shank assembly for enhanced penetration and durability.
Specification | Details |
|---|
Frame Size | 200 x 200 x 9 mm |
Working Width | Up to 9 m |
Max Working Depth | Up to 450 mm |
Breakout Force (Rigid) | 4,790 kg at blade |
Breakout Force (Hydraulic) | Over 1,800 kg at blade |
Shank Assembly Options | 9, 11, 15, or 19 shank models |
To contact Armour Group about Seed Drill | Deep Ripper - Mid-Range Mid-Broadacre use Get a quote.
