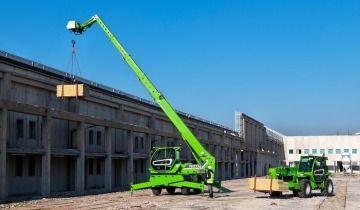

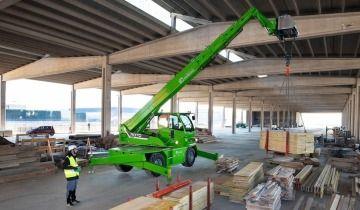

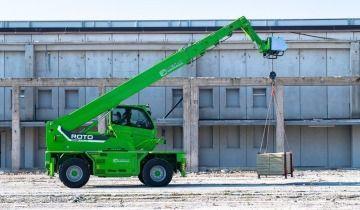

Roto Telescopic Handler | ROTO 70.24SPLUSEE4Get latest price

Applications for this product

• Heat/AC
• Enclosed Cab
• Cab: FOPS II ROPS
• Tac-Lock for Attachments
• Ground Engaging Boom
• 2 Floating Forks
• Electronic Joystick
• Low Pivot Boom
• Work Lights on Cab
• Automatic Parking Brake
• Permanent Four-Wheel Drive
• Auxiliary Hydraulic Service on Boom
• Hydropneumatic Suspension EAS Merlo
• Pre-arrangement for Aerial Work Platform

Specifications of this product

• FPT Iveco 4 Cyl. Turbo Diesel/170 Hp
• Transmission: 2 Speed/Hydrostatic
• Maximum Speed: 25 mph
• Total Unladen Mass: 45,420 lbs.
• Hydraulic Pump: 2-LS + FS
• Delivery Pressure (psi-gal/min) 3770/42+26
• Fuel Capacity: 40 gals.
• Hydraulic Oil Capacity: 32 gals.
• Dimensions: 25’7? x 8’1? x 10’3? [stabilizers extended: 17’2?]
• Turning Radius over Tires: 14’7?
• Ground Clearance: 1’0?
• Wheelbase: 10’0?
• Tires: 445/65-R22.5
• 4WD/ 3 Steering Modes
• Multi-Positional Stabilizers
• ASCS Overload Protection System
• Boom Sections: 4
• Frame Leveling (+/- side/front): 12/4
• Eco Power Drive
• Brakes: Dry Discs
• Reverse Shuttle: Dual Reverse
• Turret Rotation: 360°
• Tilt Cab: 20°
• Attachment Recognition System
