PTO K Wood Chipper | TP 320

Linddana TP 320 PTO K Wood Chipper

13 Recent ViewsIn Stock

Suitability: TP 320 PTO is a 320 mm wood chipper where the funnel is parallel with the roadside

Features

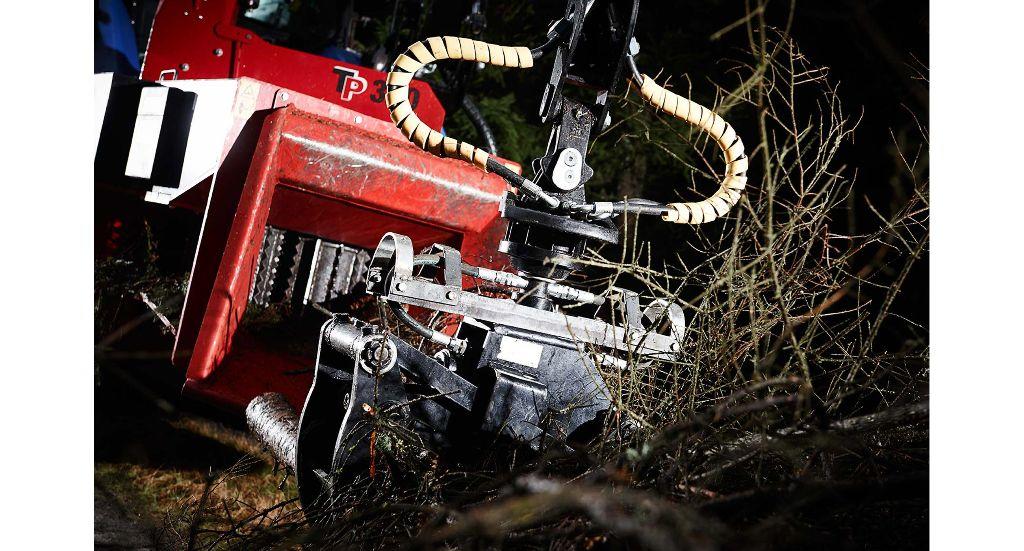

Powerful crane funnel
2 hydraulic driven feed rollers with aggressive teeth and knives

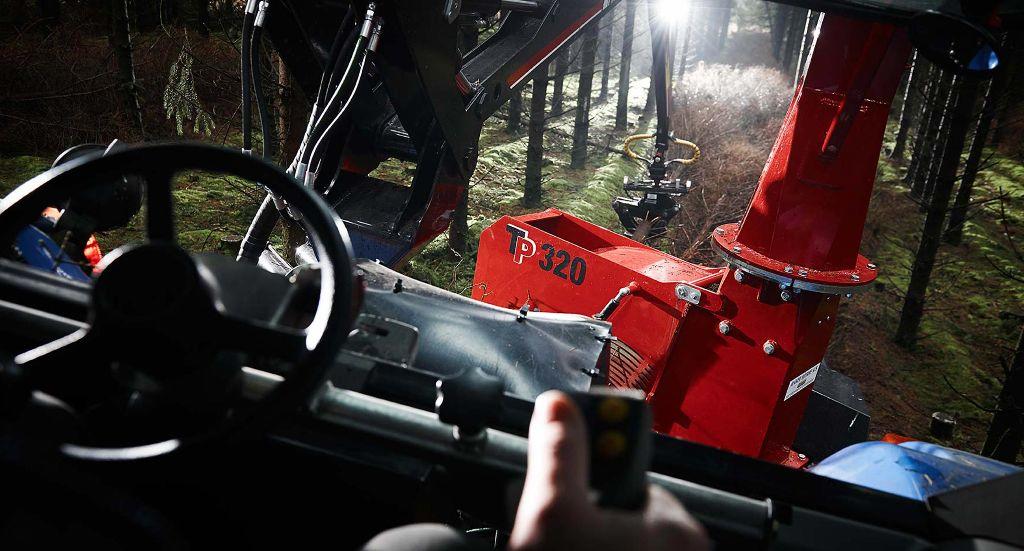

Control unit and TP PILOT K for operating from the tractor house
Rotor disc with 4 knives, placed in pairs
The integrated crane support is a strong part of the main construction
The PTO axel is equipped with a wide angle
The powerful v-belt system between the PTO and main axel minimises vibrations during operation

Usability

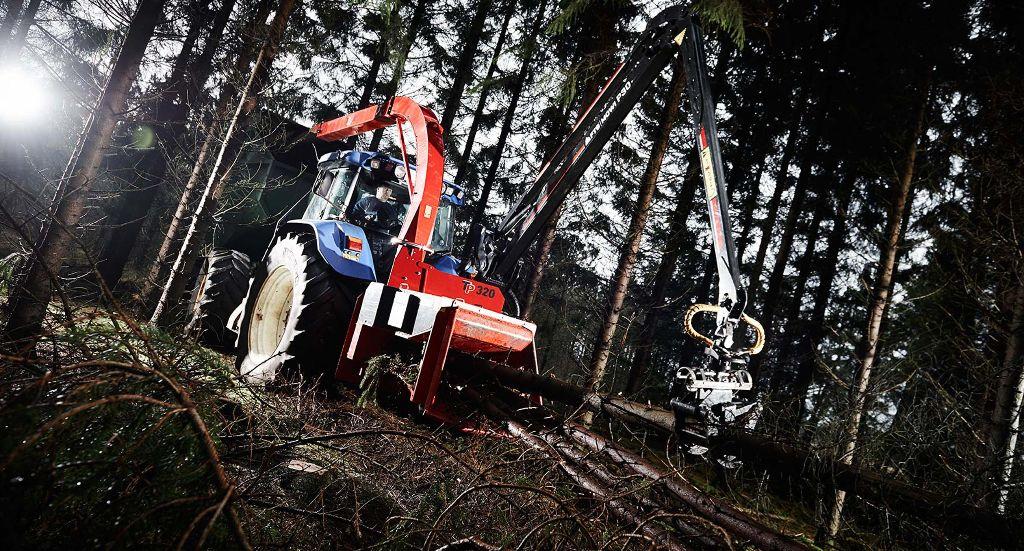

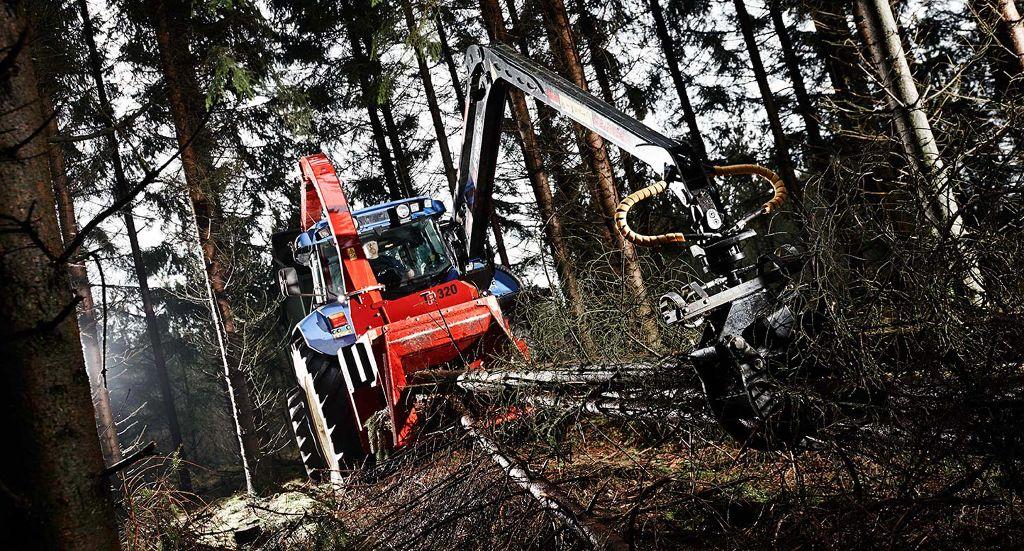

The TP 320 PTO is ideal for row chipping in forests and well suited for many other purposes, such as road clearing and production of biomass, due to the chippers large capacity and compact design.

The chipper is standard equipped with a long ejector spout over the tractor, so wood chips can be collected by a trailer pulled in front. The spout can be delivered with a hydraulic turn system, enabling/allowing minor/simple adjustments to the outlet direction.

Technical Data
Max Wood Diameter	320mm	Versatile work area and capacity
Opening H x W	320 x 340 mm	Rectangular opening for better in feed of trees with i.e. side branches
Chipper Type	Disc	High wood chip quality
Chipping angle	30 degrees	Large capacity and powerful in feed
Funnel Position	Inline	Parallel to road side – ideal for row felling
Number of Knives	4 (2 cuts per rotation)	Placed in pairs to ensure a more effective and economical chipping
Wood Chip Size	12-30mm (for hardwood max.20mm)	For the production of both small and large wood chip. The size of the wood chip means a higher capacity (measured in m3/hr)
Knife Setting	10 – 25 mm (for hardwood trees max. 15 mm)	Easily carried out using a knife setting gauge
Rotor disc diameter	1.050 mm	Powerful ejection of material and high efficiency
Rotor disc weight	434 kg	Strong chipping force
Capacity	45-100 m3/hr	Based on average working conditions
Feed rollers	2 vertical	The ideal solution when chipping trees and branches
Compression of feed rollers	Hydraulic	Powerful in feed
Hydraulic system	Integrated	Ensures the most powerful and stable in feed
Hydraulic pump	Variable piston pump	Adds extra pressure and effect to the in feed system
Extra boost on the feed roller compression	+50%	Extra added power to the in feed system, manually controlled via the joysticks
Opening of the feed roller	Hydraulic	An advantage when feeding very gnarled material or several branches at the same time
Anvil horizontal	1 reversible	Higher chip quality and more economical
Anvil vertical	1 reversible	Higher chip quality and more economical
Longlife protection of rotor housing	Replaceable wearing plate	Prolongs the lifetime of the machine
Crane support	Integrated	Giving the optimal placement of the crane
3-point linkage	cat.3	Standard category for tractor attachment
Ejector spout	Long, over the tractor	Safe and easy collection of wood chip, i.e. into high tip dumper
Connection between PTO shaft and main axle	V-belt system	Minimises vibration, protecting the tractors gearbox
PTO shaft	included	Options: 1 3/8 – 21, 1 3/8 – 6, 1 3/4 – 20 and 1 3/4 – 6
Power requirement, hp	130 – 250	Several tractor size options
Power requirement, kW	95 – 184	Several tractor size options
Weight without crane	2500 kg
Weight with Mowi P30	3108 kg
Weight with Mowi 400	3368 kg
