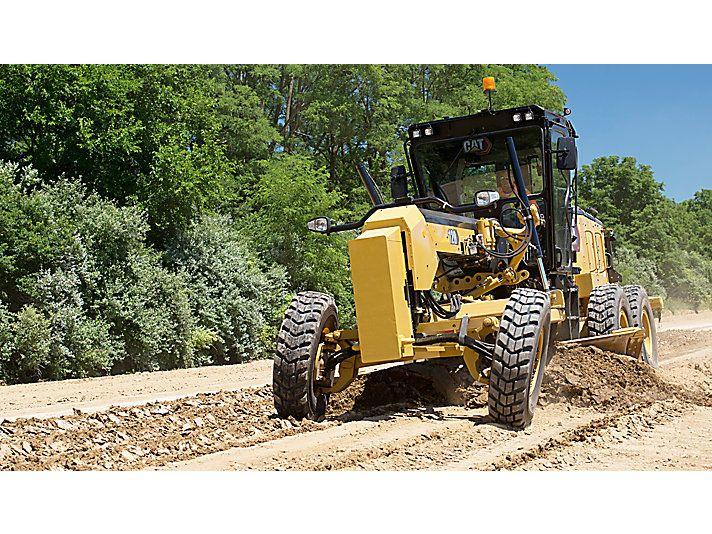

Motor Graders 120 / 120 AWDGet latest price

KEY SPECS

• Net Power Range (Tier 3)
  • 97 kW
• Lever/Steering Wheel All-Wheel drive (AWD) Weight* Tier 3
  • 16454 kg
• Blade Width
  • 3.7 m

ENGINE

• Net Power Range (Tier 3)97 kW
• Derating Altitude (AWD)1676 m
• Maximum Torque - ISO 9249822 N·m
• Derating Altitude3000 m
• Note (2)Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
• Maximum Torque - AWD On828 N·m
• All-Wheel Drive Net Power Range (Tier 3)101 kW
• Bore105 mm
• Displacement7.01 l
• Number of Cylinders6
• Torque Rise - ISO 929442%
• Engine RPM2,000
• Engine ModelCat 7.1
• Note (3)Power as declared per ISO 14396
• Note (1)Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
• Stroke135 mm
• Standard Capability50 °C
• EmissionsChina Nonroad Stage III and Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA

MACHINE WEIGHT

• Lever/Steering Wheel All-Wheel drive (AWD) Weight* Tier 316454 kg
• Joystick Weight* Tier 315824 kg
• Joystick All-Wheel Drive (AWD) Weight* Tier 316499 kg
• Lever/Steering Wheel Weight* Tier 315699 kg
• Note*Typically equipped includes 3.7 m (12 ft) plus blade, tires, push plate, ripper, bottom guard, operator, and full fluids.

MOLDBOARD

• Blade Width3.7 m
• Cutting Edge152 mm
• Blade Height610 mm
• End Bit152 mm
• Cutting Edge Width152 mm
• Arc Radius413 mm
• Throat Clearance120 mm
