Mini Skid Steer Loader CTX160 | 40 hp Get latest price

When moving pallets or other material around a jobsite, the tractive efforts and controllability can help the operator feel confident maneuvering around tight spaces on the job. Plus, it’s backed by a 3-year/3000-hour limited warranty on the loader arms.

Specifications:

• Weight: 1866.5 kg
• Power: 40 hp (29.8 kW)
• Width: 106.7 cm (With standard bucket)
• Fuel Type: Diesel
• Capacity: 2073 kg Tipping

Available to Western Australia & Northern Territory

Features:

Reduced maintenance and repair needs
Providing power for a variety of applications, the 40-hp (29.8-kW) Kohler diesel engine makes the CTX160 a tool capable of tackling jobsite challenges. This Tier 4 Final unit runs on a DOC only, which can reduce maintenance and repairs.

Compact footprint
This unit is designed to get through standard residential gates and into tight access areas. With 9-in (22.9-cm) tracks, the CTX160 is 42 in (106.7 cm) in total width, offering maximized traction and low ground pressure (psi).

Dual hydraulic system
The CTX160 dual hydraulic system is capable of providing 16.7 gpm (63.2 L/min) of hydraulic flow, powering demanding attachments. Low flow offers 9.4 gpm (35.6 L/min) to give maximum control.

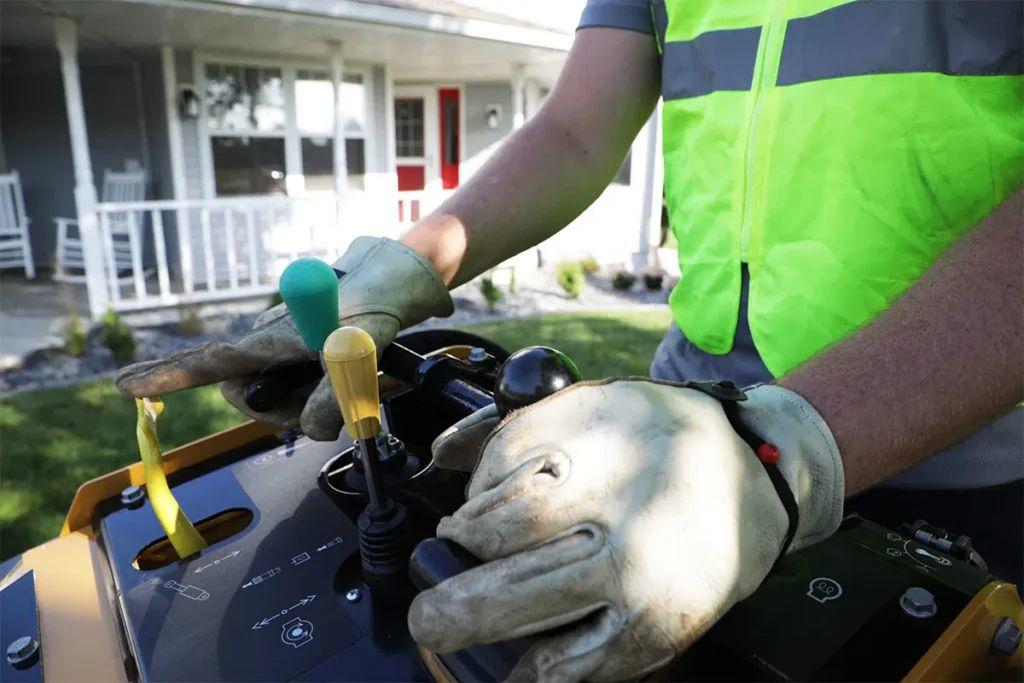

Pilot-operated ground drive
The pilot-operated ground drive enables the operator to maintain smooth control of the joystick.
Increased operator safety
The platform keeps users out of mud and debris while the operator presence system suspends ground drive and attachment motion if the operator steps off the machine.

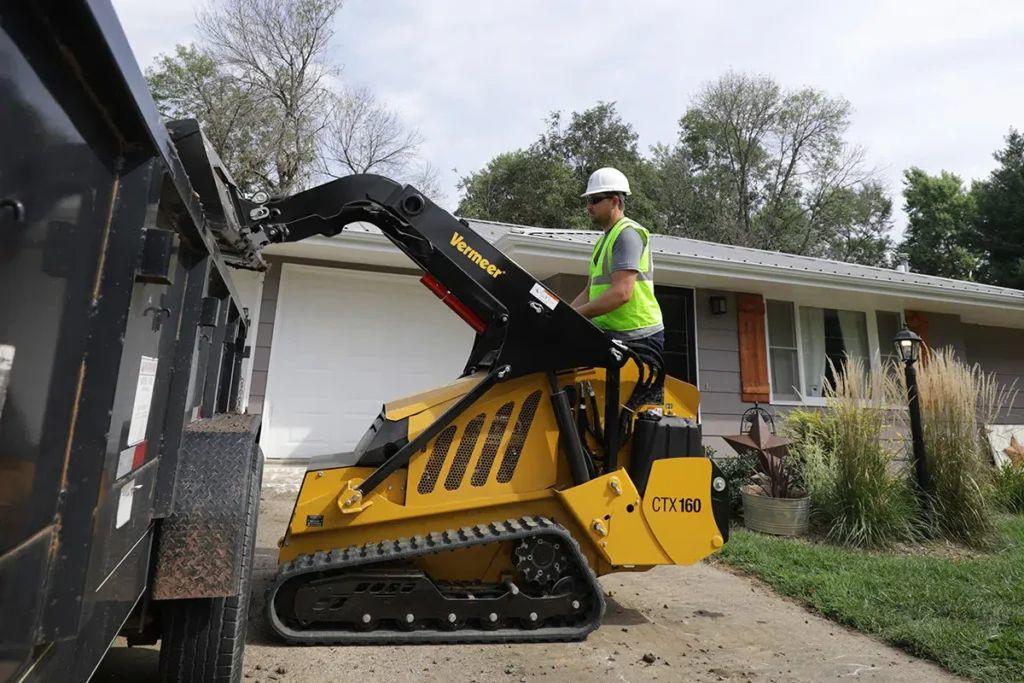

Vertical geometry
With a vertical geometry, this machine has a lift capacity of 1600 lb (725.7 kg). This allows for a hinge pin height of 88.75 in (225.4 cm) and is capable of pushing the load further away from the machine for adequate dumping into a truck.
