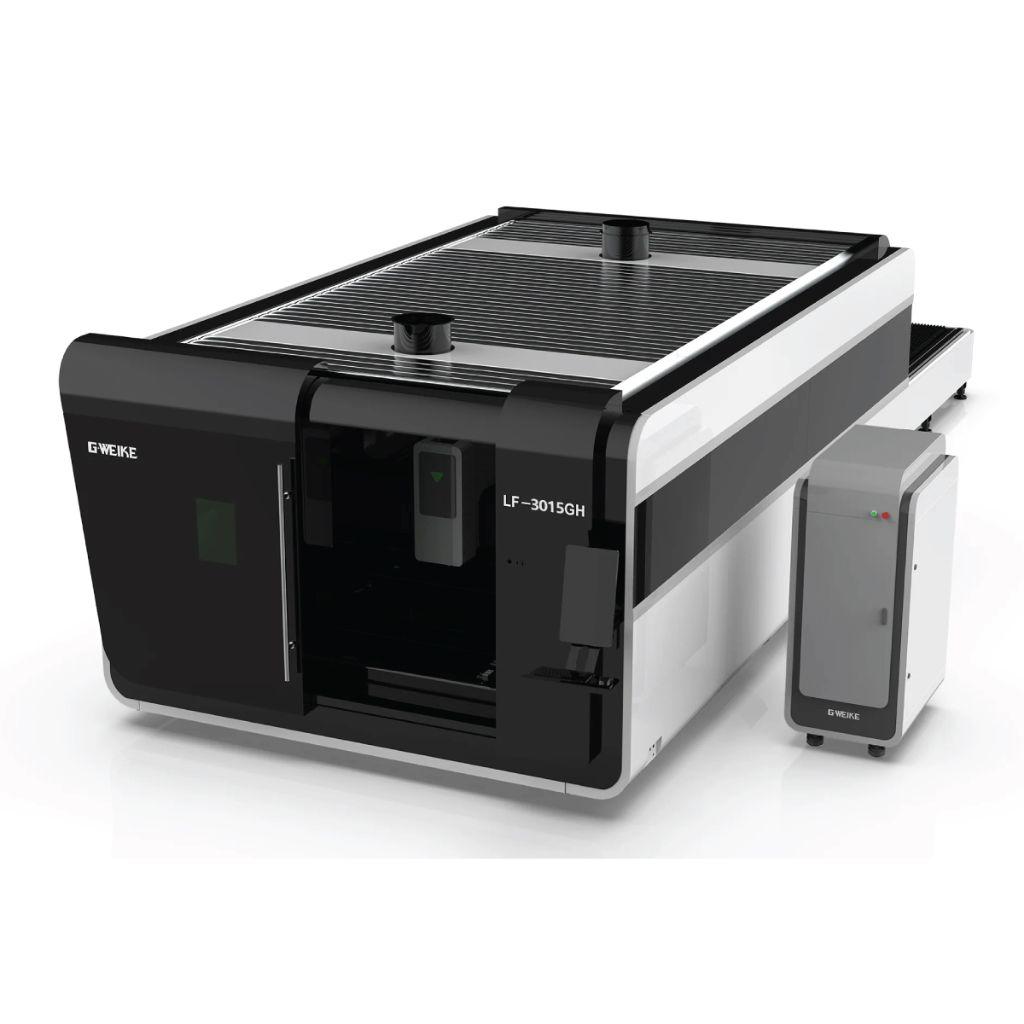

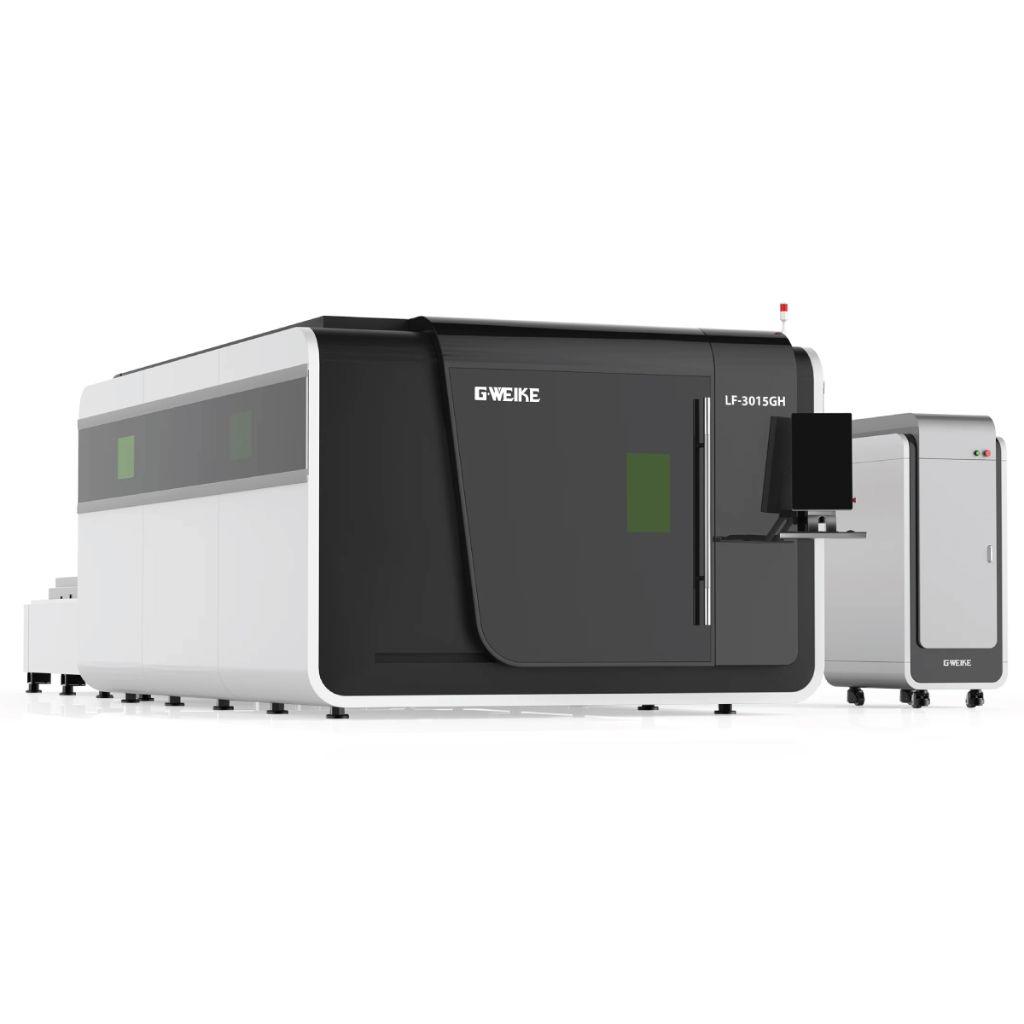

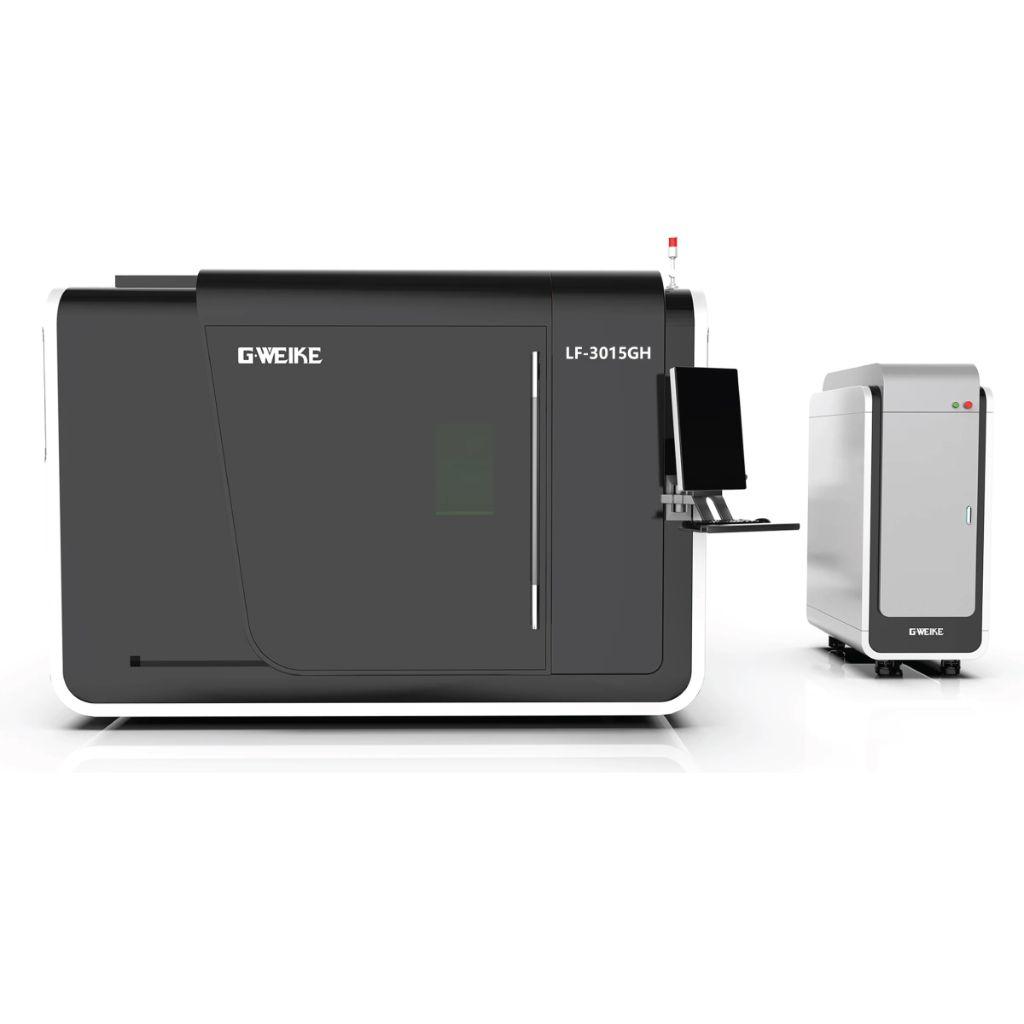

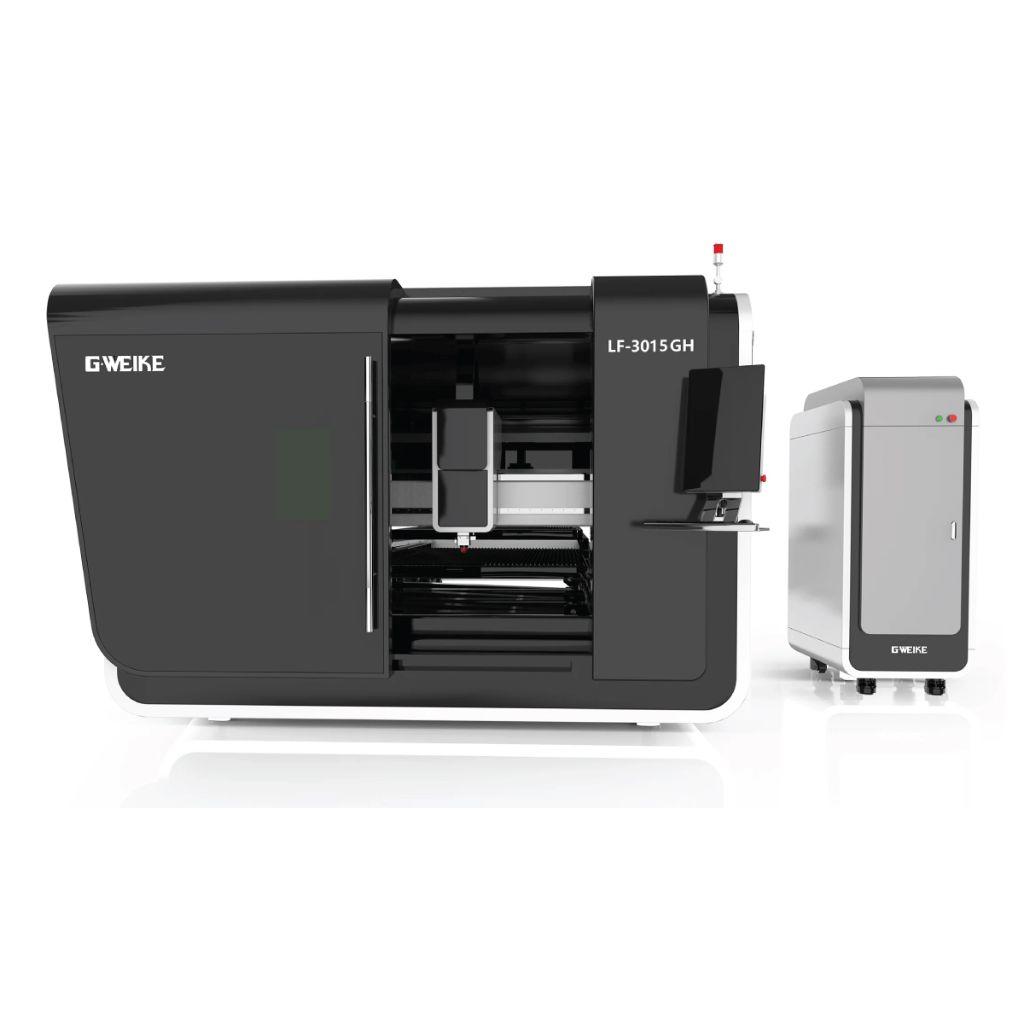

The LF3015GH is a top-tier enclosed CNC fiber laser built for heavy production sheet metal cutting. Its solid welded chassis and powerful motor package deliver 2.5G acceleration and up to 200 m/min cutting speed, significantly improving production throughput.
Equipped with a 3000 × 1500 mm fully enclosed cutting area and automatic loading table, this system is designed for fabrication workshops and manufacturers needing high-speed precision, reduced lead times and robust performance.
• Industrial enclosed design with loading table for safer operation and continuous production
• High acceleration (2.5G) and fast motion up to 200 m/min for greater throughput
• Cut thicker materials with higher laser power options
– Up to 25 mm mild steel on standard machines
– Up to 40 mm with 12 kW, up to 90 mm with 20 kW power options
• Separate air-conditioned electrical cabinet suited for Australian environments
• Automatic edge seeking, fly cutting and nesting routines
• Automatic material tracking follows warps/bends during cutting
• High-volume sheet metal fabrication workshops
• Engineering and industrial manufacturers
• Automotive and machinery part producers
• Electrical enclosure manufacturers
• Businesses upgrading from plasma or older lasers
Whether you’re cutting precision parts or high-volume production runs, the LF3015GH accelerates workflow and boosts productivity.
• Heavy industrial build with production-grade acceleration
• Enclosed design improves safety and cleanliness
• Faster than traditional systems – ideal for high-volume jobs
• Powerful cutting capacity on thicker metals
• Stable, reliable performance for daily industrial use
Industrial power, precision performance, production-ready reliability.
| Technical Parameters | Specification |
| Laser Power | 6kW, 8kW, 12kW, 15kW, 20kW |
| Bed size | 3000 x 1500mm (6000x1500 or 6000x2000 and 6000x2500mm available) |
| Laser source type | MAX, Raycus or IPG |
| Machine Dimensions | 8937*2968*2298mm |
| Laser Head Type | Automatic focussing laser head 6kW = BOCI BLT441 8kW+ = BOCI BLT642H |
| Cooling Type | Industrial Water Cooling |
| Cutting Speed | 200m/min |
| Acceleration | 2.5G |
| Laser Output Control | 0-100% set by software |
| Drive method | YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive |
| Motor power | X axis = 1800W, Y axis = 4400W, Z axis =750W |
| Positioning Accuracy | 0.02 mm |
| Re-positioning accuracy | 0.02mm |
| Minimum line width | 0.1mm |
| Controlling Software | Hypcut 8000S, including production nesting, edge seeking, automatic crash protection, cloud control and live reporting |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit |
| Power Supply | 6kW = 415V 50Hz 63amp 8kW = 415V 50Hz 80amp 12kW = 415V 50Hz 100amp 15kW = 415V 50Hz 120amp 20kW = 415V 50Hz 150amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
