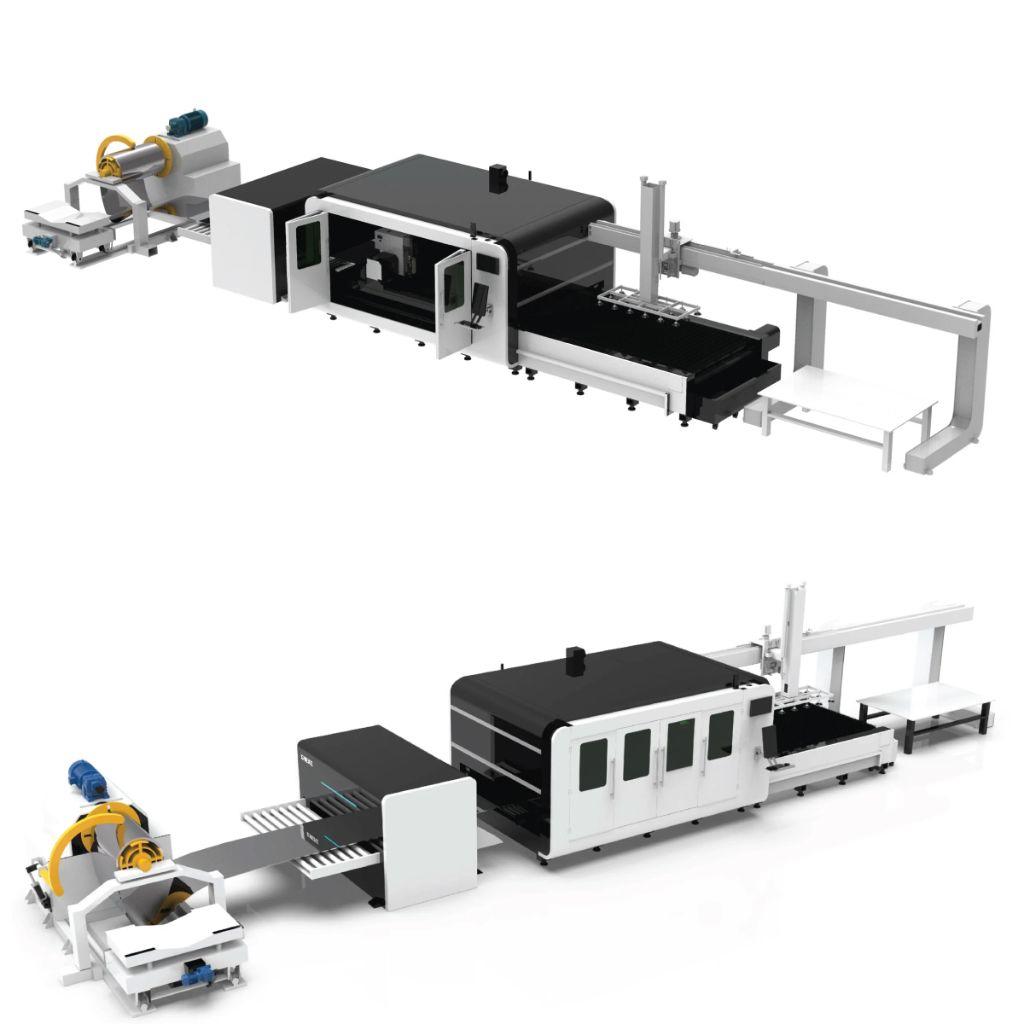

The LF3015MB is a fully automated coil-fed fiber laser cutting system designed for high-volume sheet metal production.
Unlike traditional flatbed laser cutters that require manual sheet loading, this system processes steel coil, sheet metal coil and coil stock directly from a decoiler/uncoiler into the laser cutting stage — enabling continuous, automated production.
This is a true laser cutting line for manufacturers scaling output.
This system may be referred to as:
• Coil-fed laser cutter
• Steel coil cutting line
• Sheet metal coil processing line
• Decoiler laser system
• Uncoiler laser cutting line
• Continuous sheet laser cutter
• Electrical enclosure production lines
• Automotive component manufacturers
• Appliance manufacturers
• Industrial sheet metal processors
• Contract manufacturing facilities
• High-volume fabrication environments
If you're processing large volumes of coil stock daily, automation is essential.
• Integrated uncoiler (decoiler) system
• Automatic levelling before laser cutting
• Continuous feeding from coil stock
• Reduced manual handling
• Improved material utilisation
• Faster production throughput
• Continuous cutting from rolled steel coil
• Lower labour requirements
• Reduced downtime between sheets
• Improved workflow automation
• Consistent feeding accuracy
• Ideal for repetitive, high-volume parts
Traditional flatbed lasers require manual sheet loading and unloading.
The LF3015MB:
• Automates material supply from master coil
• Increases daily output capacity
• Minimises scrap and sheet waste
• Improves production consistency
• Reduces operator fatigue
For serious manufacturers, this isn’t just a laser cutter — it’s a production system.
| Technical Parameters | Specification |
| Laser Power | 1.5kW / 2kW / 3kW / 6kW |
| Coil width | 1000-1300mm |
| Machine Size | LF3015MB = 23500 x 5500 x 2650(H)mm LF4015MB = 24500 x 5500 x 2650(H)mm LF6015MB = 26500 x 5500 x 2650(H)mm |
| Approximate working area | LF3015MB = 25 x 6.5 x 2.7m LF4015MB = 26 x 6.5 x 2.7m LF6015MB = 28 x 6.5 x 2.7m |
| Side door access | 3000mm |
| Laser source type | MAX, Raycus or IPG |
| Laser Head Type | Automatic focussing laser head 1.6-2kW = Raytools BM111 3kW = BOCI BLT421 3kW = BOCI BLT441 |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 120m/min |
| Acceleration | 1.5G |
| Laser Output Control | 0-100% set by software |
| Drive method | YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive |
| Positioning Accuracy | 0.02 mm |
| Re-positioning accuracy | 0.02mm |
| Minimum line width | 0.1mm |
| Controlling Software | Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit |
| Power Supply | Machine: 1kW = 415V 50Hz 20amp 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 80amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
