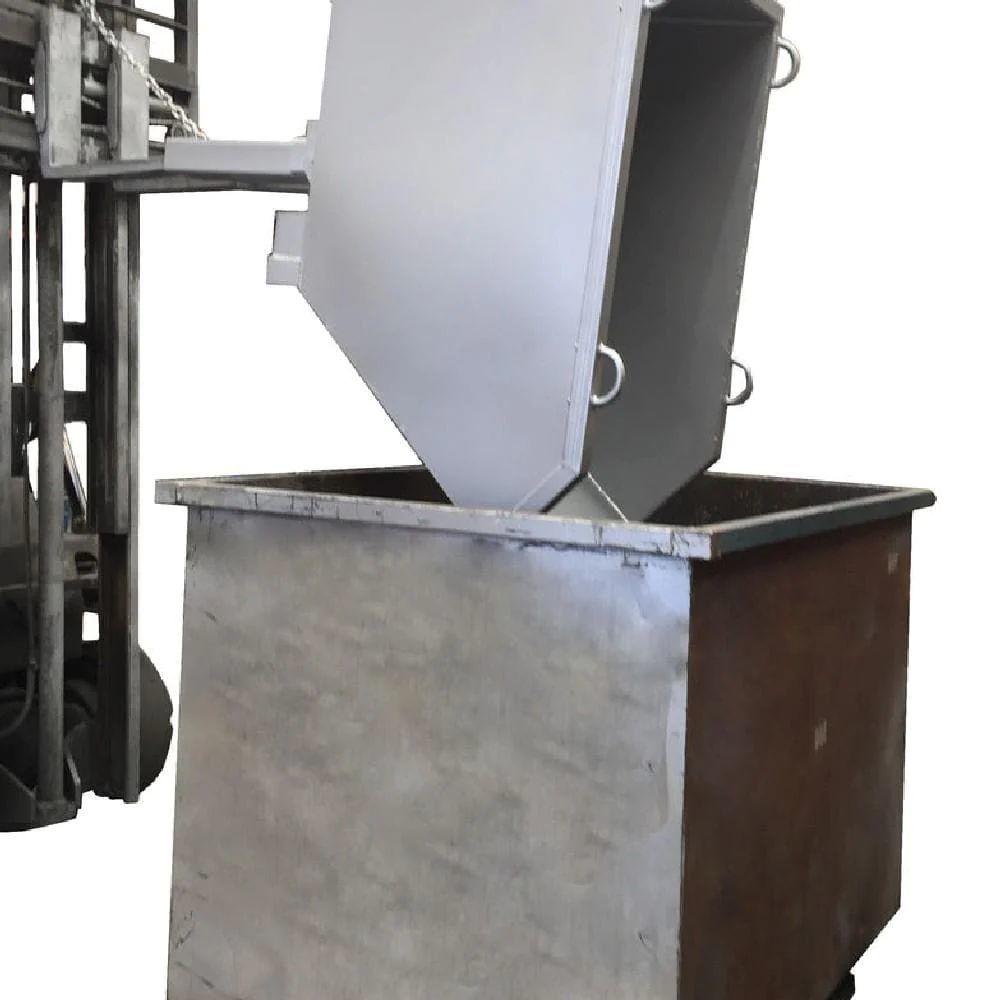

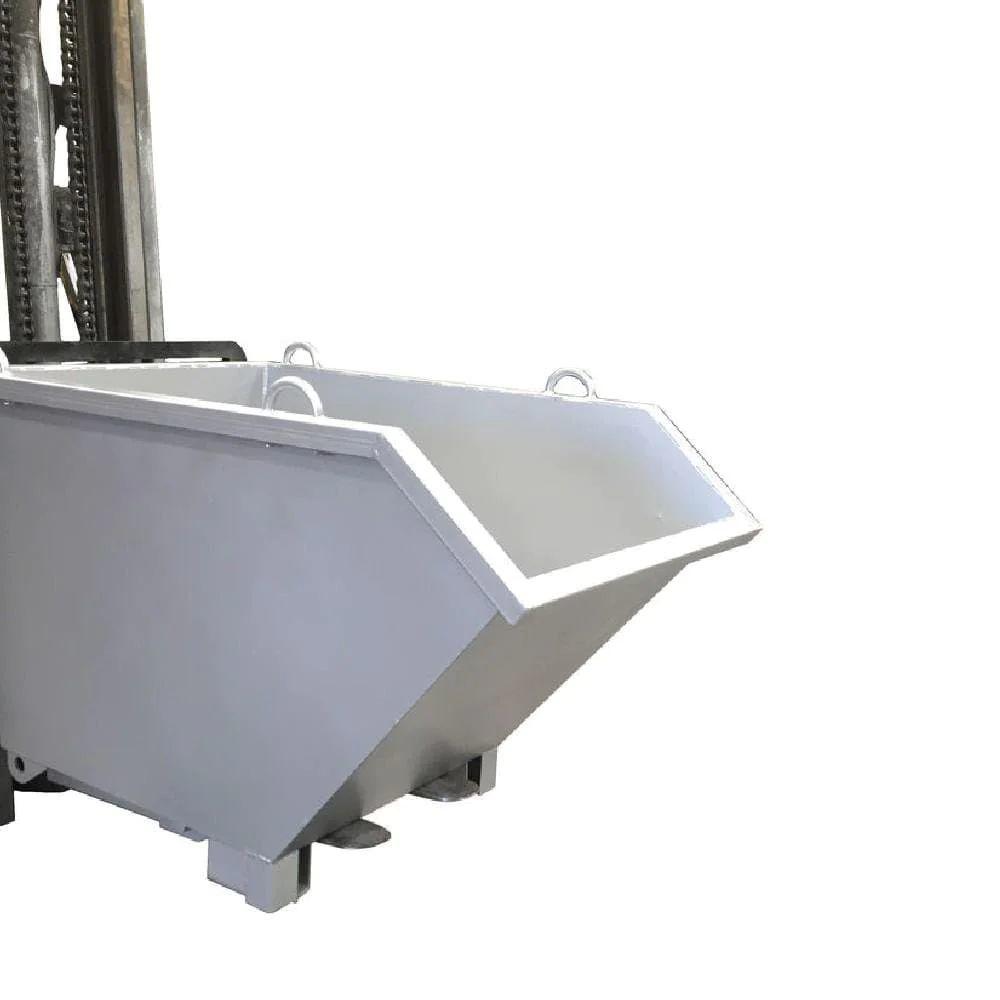

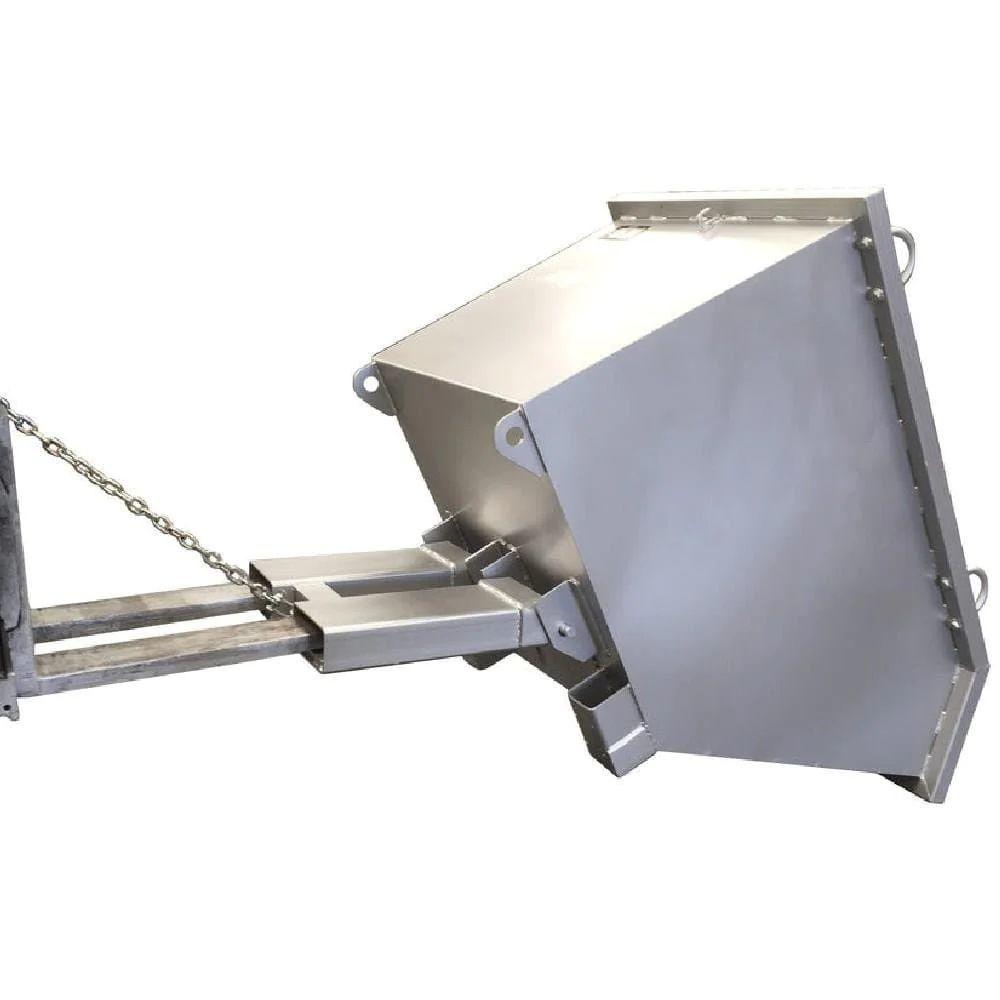

The DHE Heavy Duty Skip Tipping Bin Forklift Attachment can be used for general waste handling applications.
Designed to be nested and space spacing, the DHE Skip Tipping Bin Forklift Attachment work to reduce transport costs. Zinc-plated, this model is also durable and sturdy as you use it.
Features and Benefits
- Reduces transport costs

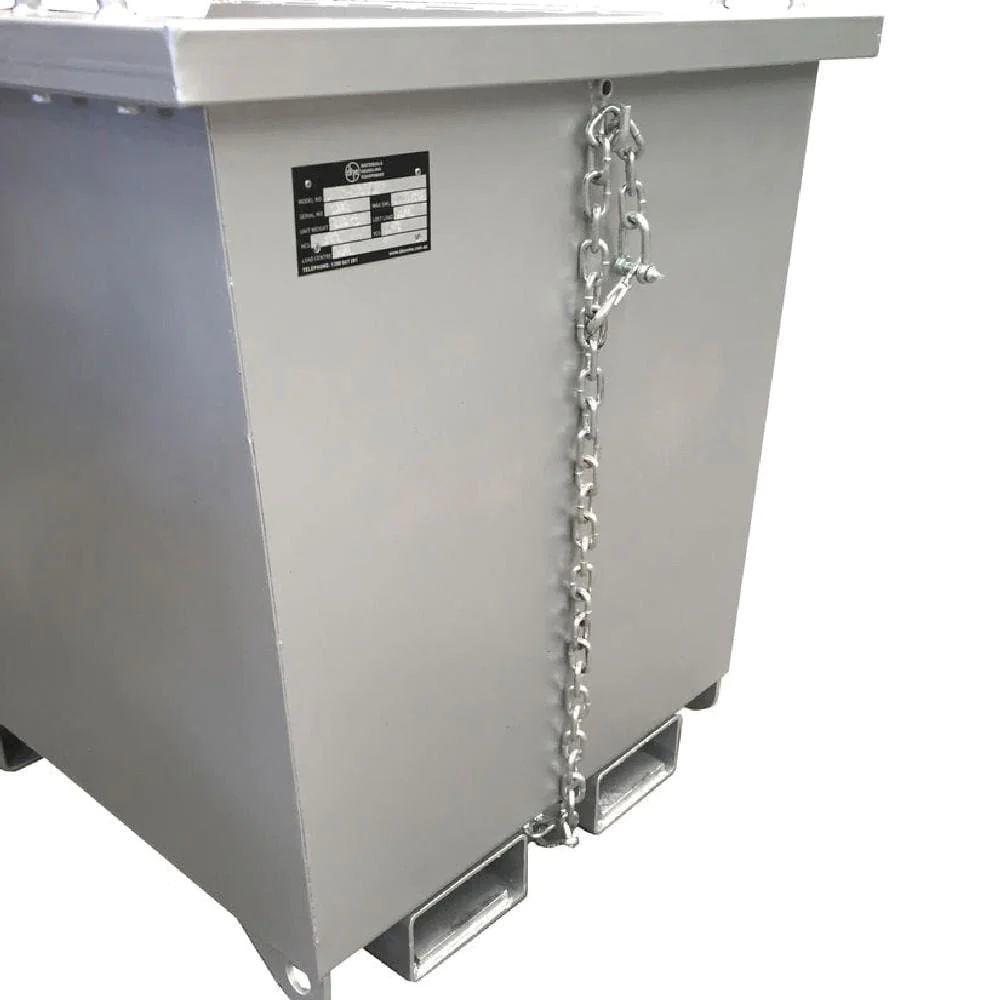

- Has forklift Carriage and Safety Chain Features
- The bin is supplied with 4 crane lugs and upending lugs under
- Wheels available as an option
Specifications
- 0.95m3 Capacity (DHE-SDB9)
- Capacity: 0.95 cu.m
- Pocket Size: 185mm x 75mm
- Pocket Centres: 340mm
- Horizontal Centre of Gravity: 550mm
- Vertical Centre of Gravity: 340mm
- Safe Work Load: 1500kgs
- Unit Dimensions 180kg 1570 x1010 x1010mm
- 1.85m3 Capacity (DHE-SDB18)
- Capacity: 1.85 cu.m
- Pocket Size: 185mm x 75mm
- Pocket Centres: 630mm
- Horizontal Centre of Gravity: 550mm
- Vertical Centre of Gravity: 340mm
- Safe Work Load: 1500kgs
- Unit Dimensions 245kg 1570x1910x1010mm
- Front: 800mm Back: 1010mm
To contact Ramp Champ about DHE Heavy Duty Skip Tipping Bin Forklift Attachment use Get a quote.
