The Attachment Forklift Bin Tipper is a durable forklift attachment designed for safe and efficient tipping of bins. Compatible with most forklifts, this hydraulic bin tipper simplifies heavy load handling and improves productivity in waste disposal
Description
Safe Efficient Tipping
The ForkTipper is a universal attachment from Simpro which turns any forklift into a bin tipper in seconds. It can tip 240-litre wheelie bins into a variety of skips and waste containers. The ingenious cradle lip mechanism ensures bins are inverted at the correct height, without the operator having to leave their seat.

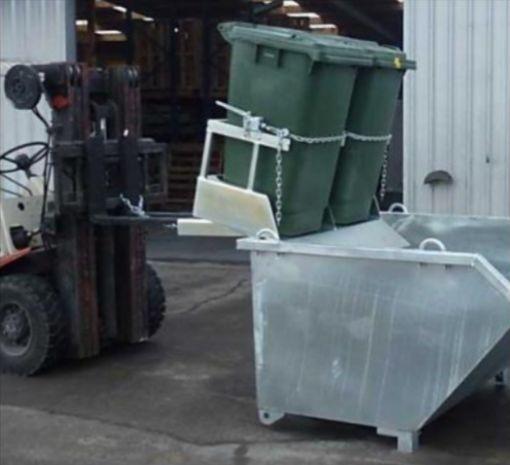

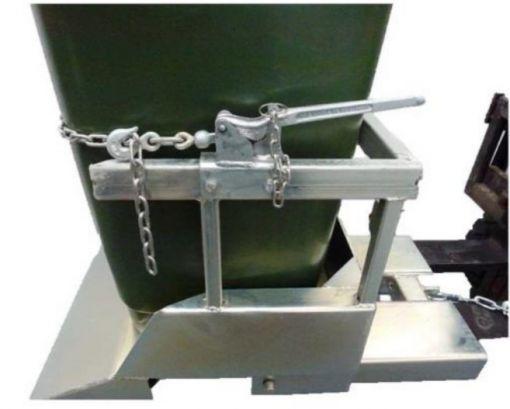

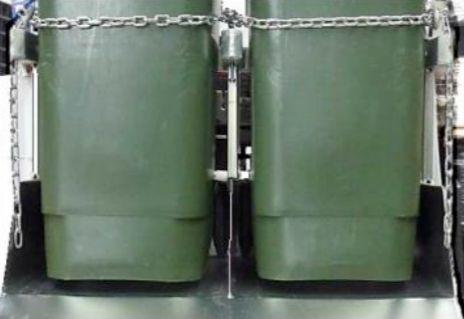

The ForkTipper is simple to use – wheel a bin onto the cradle, secure the safety chain, and do the rest from the driver’s seat. It is available with either a single cradle or a double cradle, which allows tipping two wheelie bins at once.
With rugged zinc-plated steel construction, the ForkTipper is designed to withstand many years of rough handling.
ForkTipper Features:
Forklift-mounted attachment for tipping 240-litre wheelie bins.
Ingenious design allows operator to remain in driver’s seat while tipping.
Tips one or two bins at once.
Rugged and simple design able to withstand years of rough handling.
Zinc-plated steel construction, approved for outdoors use.
Manufactured in accordance with AS/NZS 2359.1.
ForkTipper Specifications:
MODEL (SKU)
FT1240
FT2240
Length
1167mm
Width
610mm
1215mm
Height
860mm
Max Bin Weight
500kg
1000kg
Cradle Compatibility
1 x 240-litre wheelie bin
2 x 240-litre wheelie bins
Axle Rotation
180° degrees
Load Centre
1200mm
Pocket Size
160mm x 65mm
Pocket Centres
340mm
Horizontal Centre of Gravity
720mm
Vertical Centre of Gravity
90mm
Applicable Standards and Certifications
ISO 3691-3:2016, AS 2359.1:2015, Conformité Européene (CE)
