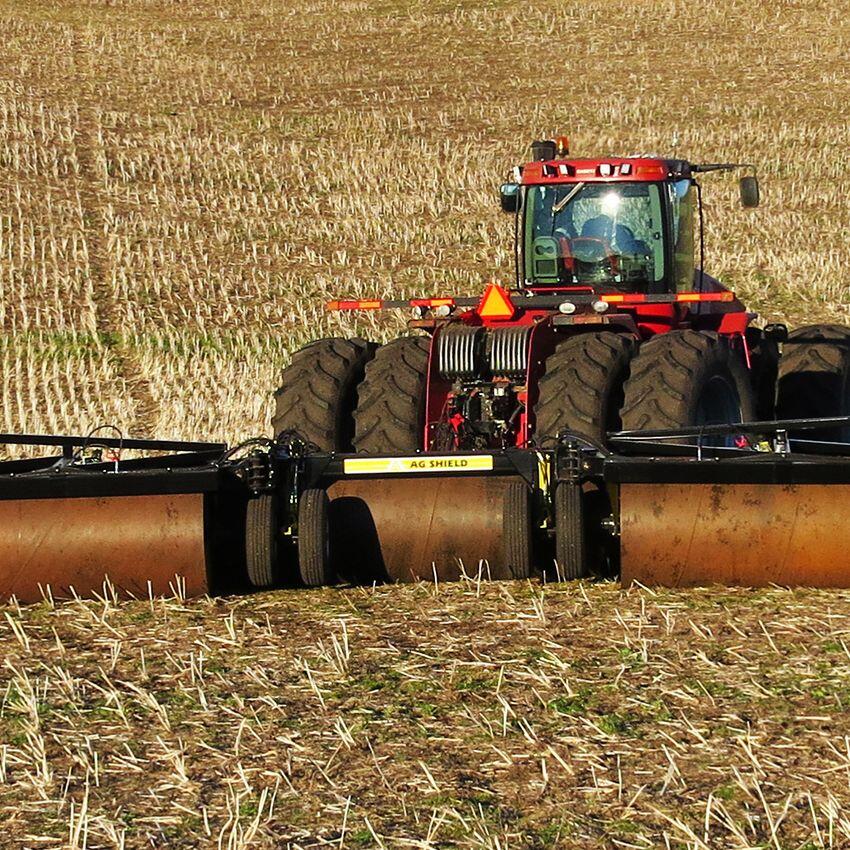

Ag-Shield Land Roller

Name: Ag-Shield Land Roller
Brand: Grainlogic

Supplier: Grainlogic

The Ag-Shield Land Roller enhances seeding and harvest efficiency by improving seed-to-soil contact and producing flatter fields for better crop yields.

Maximises crop yield and protects harvest equipment by flattening fields and improving seed-to-soil contact.

Rolling with an Ag-Shield Land Roller maximises both seeding and harvest efficiency. It increases your bottom line by ensuring improved seed-to-soil contact for better germination and enables a faster, more efficient harvest. These rollers are designed for durability and performance, available in single, double, triple, and five-plex units, and offer options like a levelling blade and mounted seed applicator.

Features

42 cm diameter drum
15.9 mm thick drum (minimum 15.5 mm)
2.5 cm ball bearings
#213 ductile iron bearing flanges
Replaceable 2.5 cm 1045 drum shafts
Highway speed rated hub & spindles
235/80R16 10 ply radial tyres
Tandem hydraulic folding rear wheels
Patented diagonal brace arm
Hydraulic floating hitch
Sealed drum ends
Clearance lights
Acre meter

Applications

Boosts seeding efficiency for optimal air seeder performance.
Packs soil around seeds, allowing improved moisture and nutrient access.
Improves harvest yields, especially in pulse crops by providing access to lower pods.
Enables quicker harvesting with less dirt/debris entering the combine.
Protects equipment by pushing down rocks and obstructions, reducing wear on knives and guards.

Accessories & Options

22.2 mm Extreme Duty drum with 14 ply radial tyres
2.5 cm double row spherical roller bearings
Forged bearing housings
Water fill kit (adds 270 kg per metre)
Roller barrel mud scraper
Levelling blade (3 section only)
Valmar 4056/6056 seeder (3 section only)

Specifications

Model	Working Width (m)	Drum Segments	Drum Widths (m)	Drum Diameter (m)	Standard Drum Thickness (mm)	Extreme Drum Thickness (mm)	Transport Width (m)	Transport Length (m)	Transport Height (m)	Weight (kg)	Weight per metre (kg)
12-46-3	14	3	5.33 \| 3.51 \| 5.33	1.07	15.9	22.2	3.81	12.64	3.05	9702	210
12-52-3	15.84	3	6.25 \| 3.51 \| 6.25	1.07	15.9	22.2	3.81	14.63	3.05	11062	212
12-60-3	18.3	3	7.47 \| 3.51 \| 7.47	1.07	15.9	22.2	3.81	15.85	3.05	9702	210
12-62-5	18.9	5	3.66 \| 3.96 \| 3.51 \| 4.42 \| 3.2	1.07	15.9	22.2	3.81	17.68	3.15	12796	206
12-66-5	20.13	5	4.27 \| 3.96 \| 3.51 \| 4.42 \| 3.81	1.07	15.9	22.2	3.81	18.29	3.15	13621	206
12-70-5	21.34	5	4.88 \| 3.96 \| 3.51 \| 4.42 \| 4.42	1.07	15.9	22.2	3.81	18.9	3.15	14447	206
