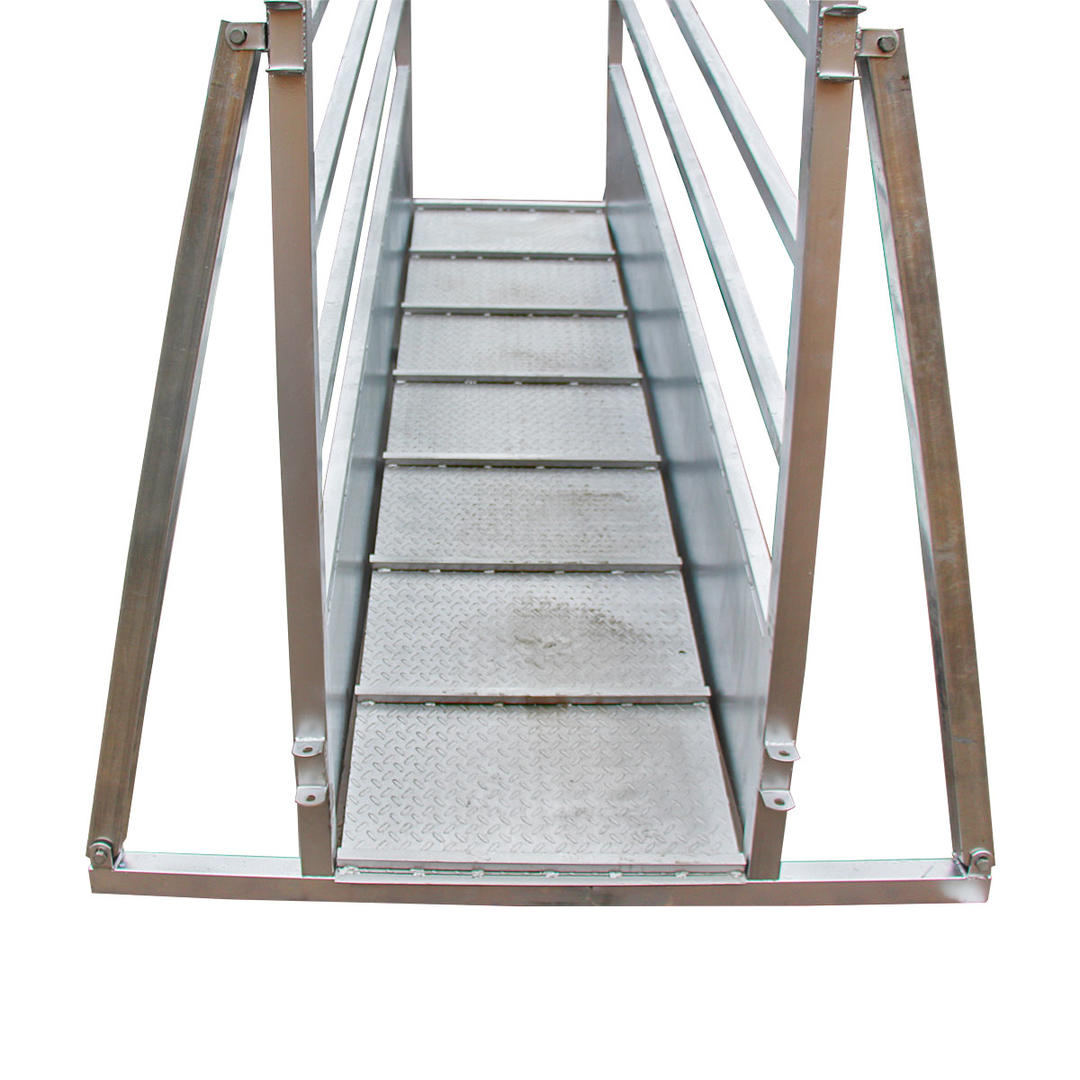

Easily adjustable height from 0.65m to 1.3m for versatile cattle loading. Features & Specifications- Adjustable height from 0.65m to 1.3m
- Dimensions: 3242mm (H) x 2850mm (L) x 750mm (W, internal clearance 750mm)
- Weight: Approx. 400kg per set
- Weight capacity: 1000kgs
- Constructed from galvanised steel
- Painted welds for added durability
- Frame tubing:
- Vertical: 60x60x2mm
- Top Side: 40x40x2mm
- Bottom Side: 60x60x2mm
- Side galvanised sheet: 1.6mm
- Galvanised footboard: 2mm thick, reinforced with 50x50x2mm, 40x40x2mm, and 25x25x2mm welded tubes
- U lugs: 100x70x4mm with pins
To contact SuperRack about Adjustable Cattle Loading Ramp use Get a quote.
