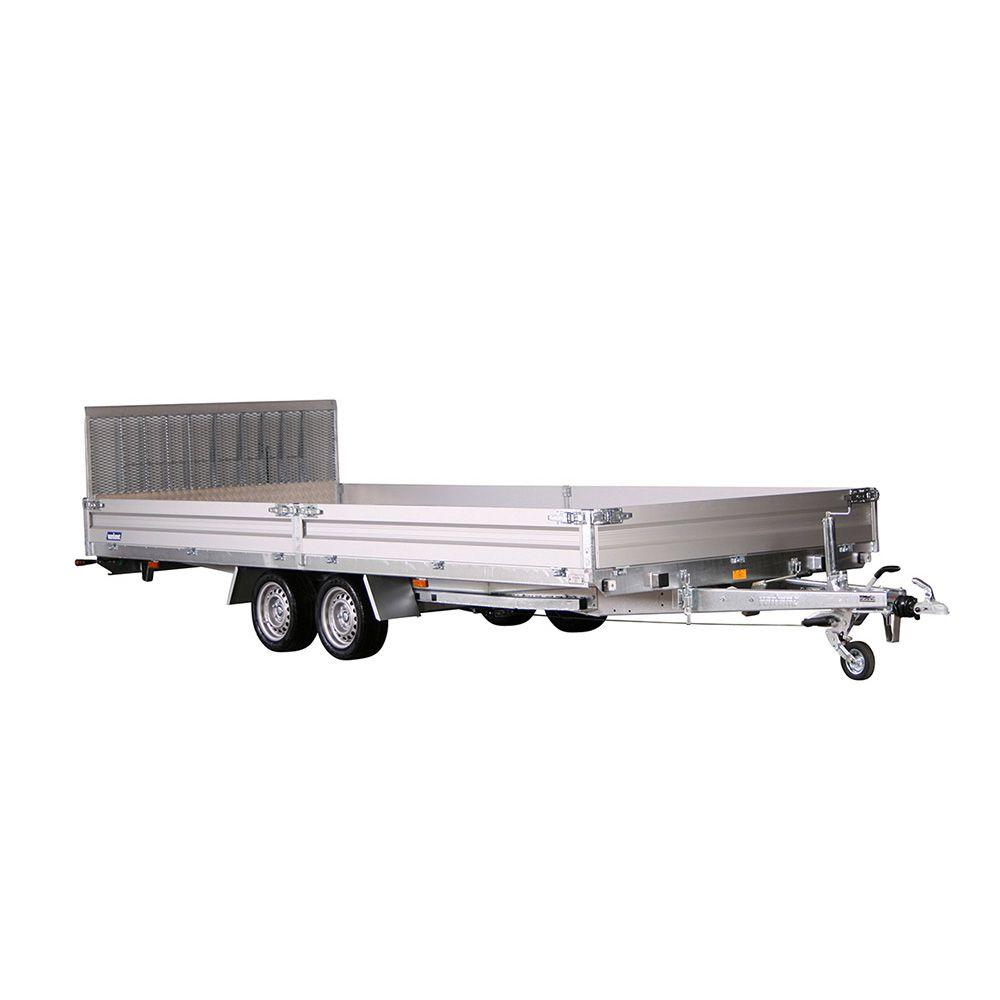

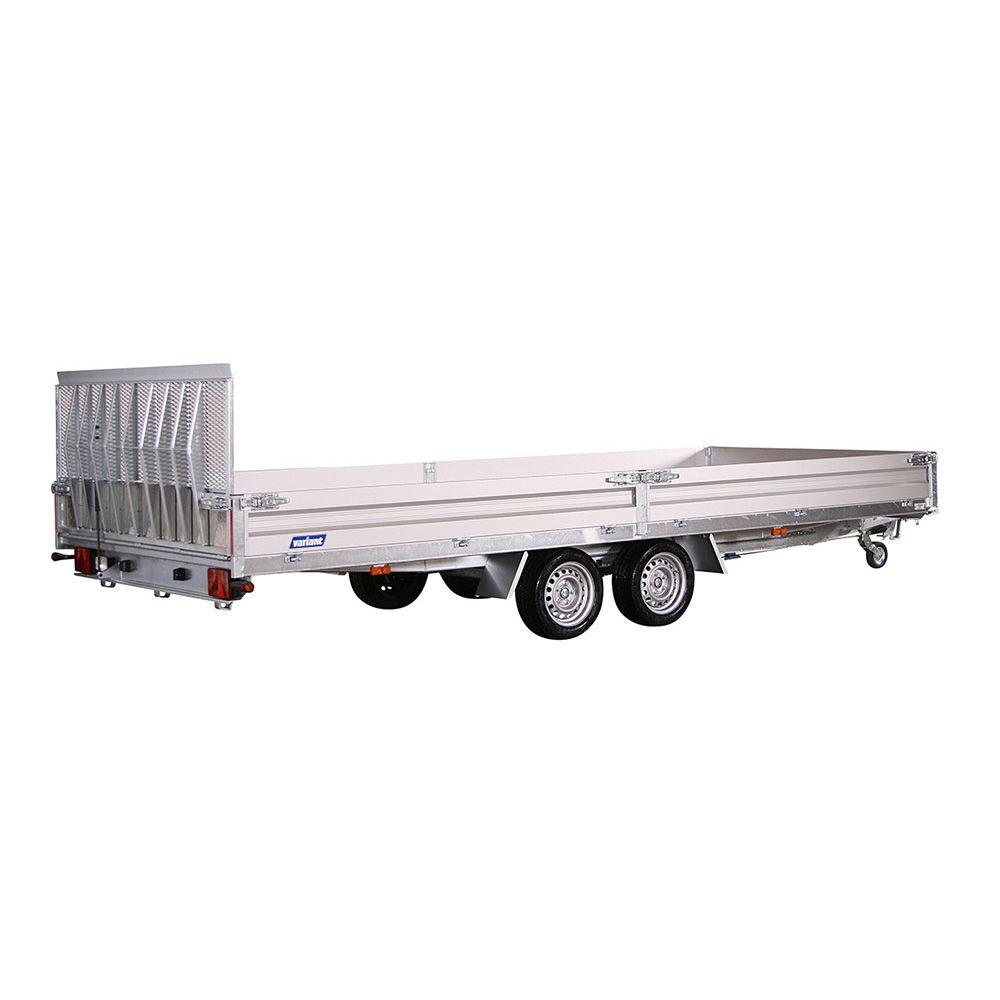

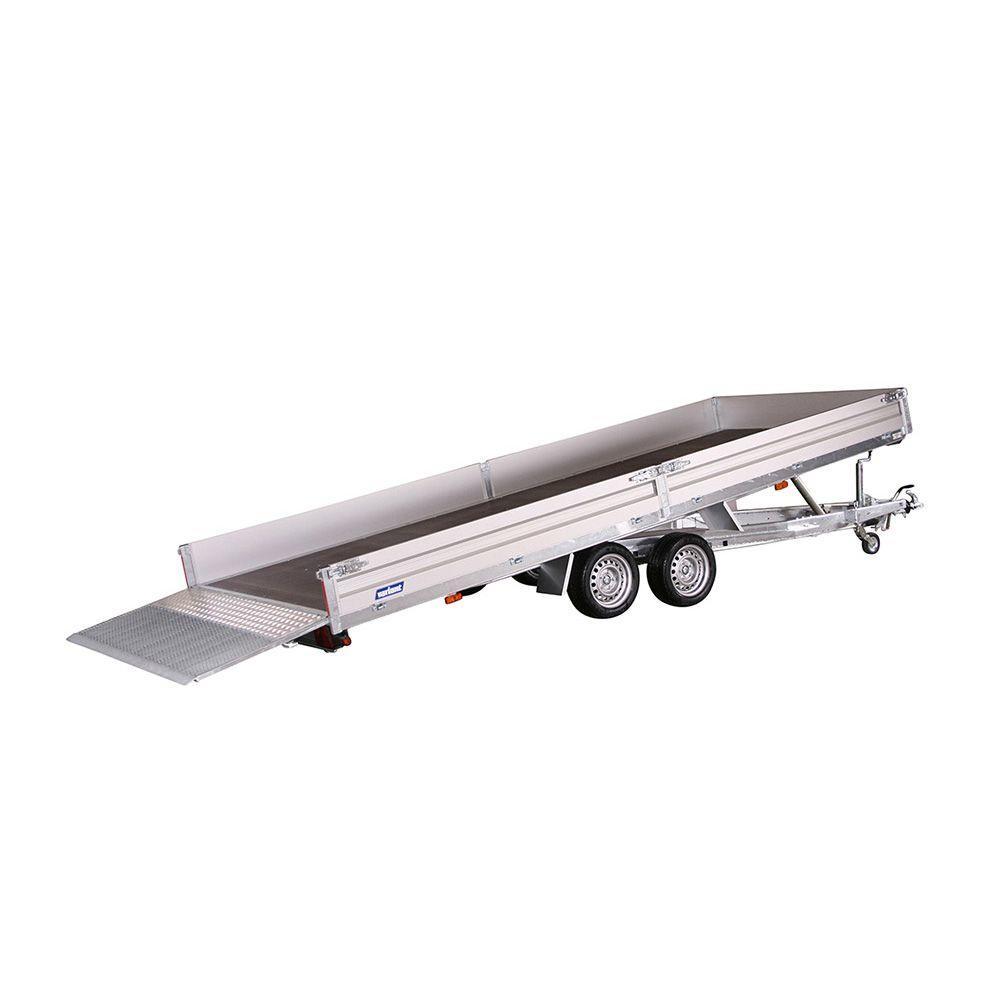

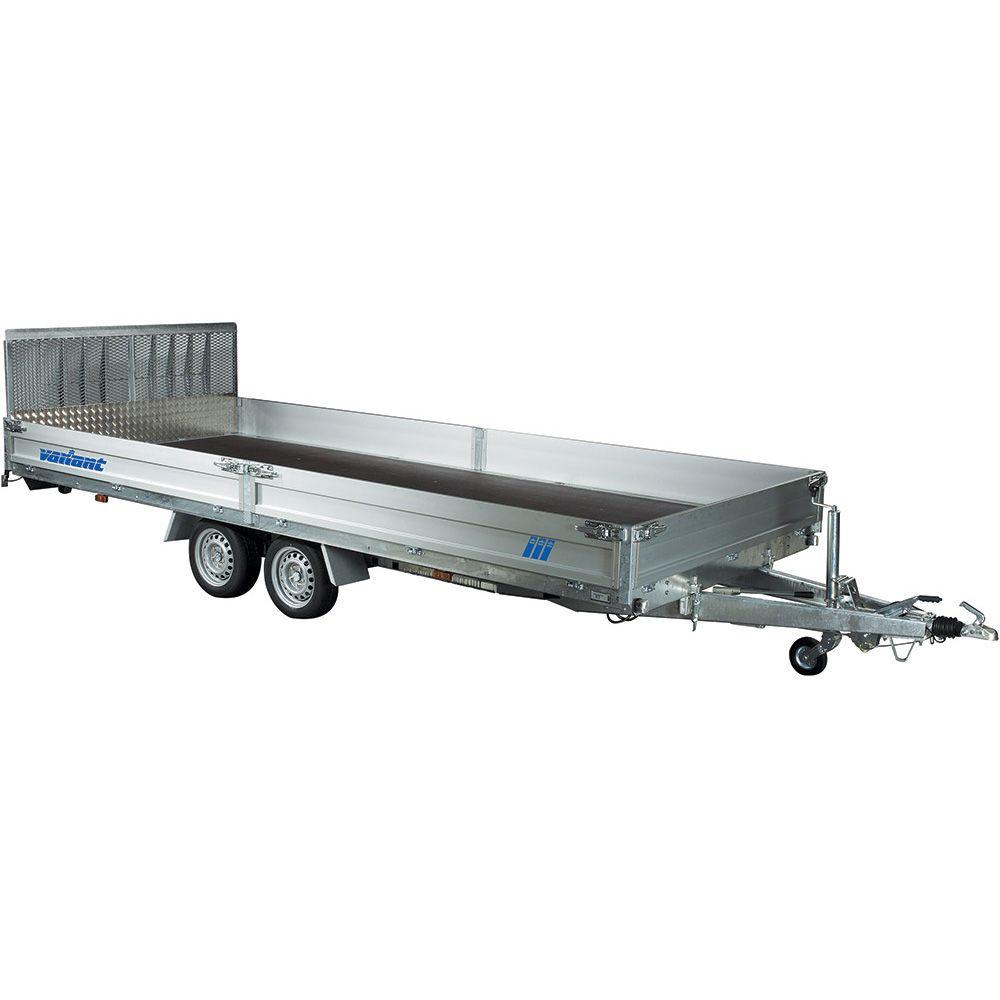

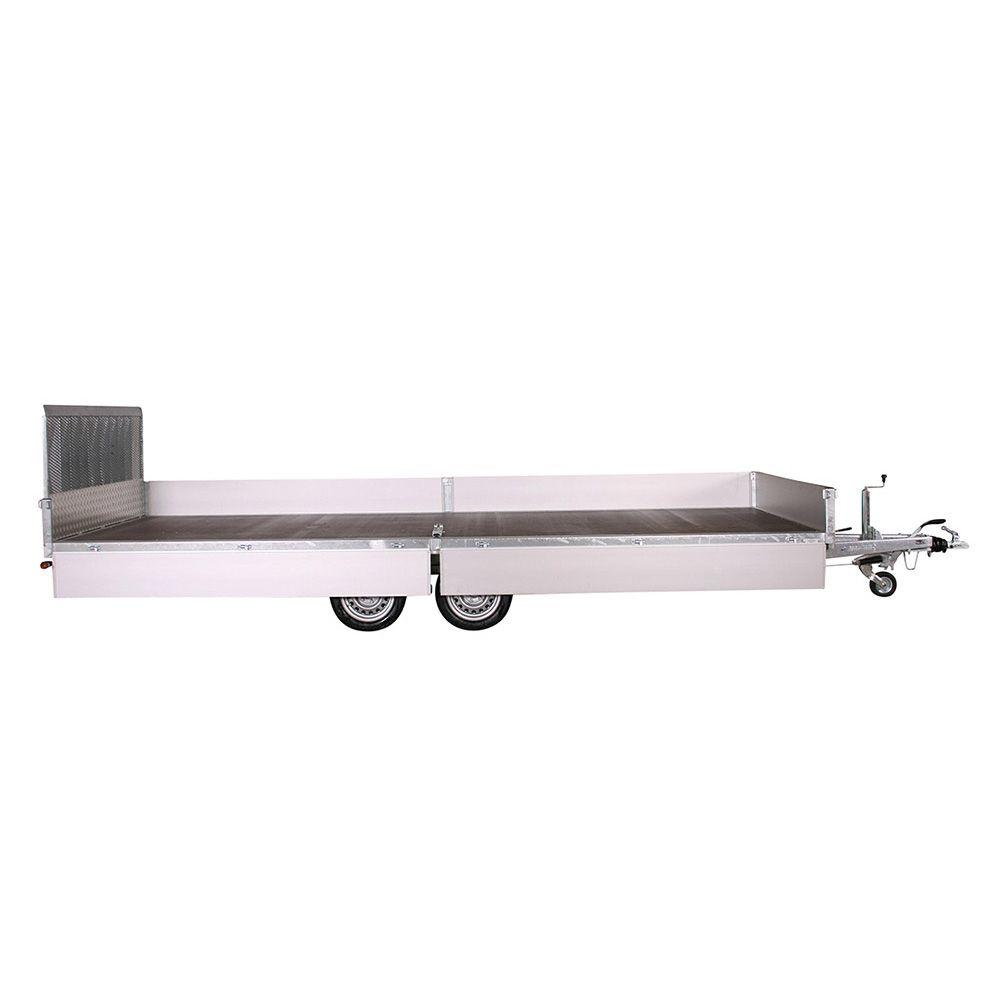

Universal Box Trailer 2700 U5 (17×7 ft)
Tandem tilt box trailer with tailgate ramp. 5m long box and 1,820kg payload capacity, perfect for transporting lawn mowers and other drive-on equipment. Galvanised steel chassis for durability and longevity. Wheels mounted underneath allowing all sides to be openable and removable for easy loading & unloading. Dual axles with mechanical overrun brakes.
Specifications
| MANUFACTURER |
Variant |
|---|---|
| PRODUCT CODE |
2700 U5 |
| SERIES |
Auto-Transporters, Commercial Box Trailers, Tipper Trailers, Universal Series |
| INTERNAL DIMENSIONS (LXWXH) |
520x210x30 cm |
| TOTAL DIMENSIONS (LXWXH) |
672x220x159cm |
| TARE WEIGHT |
880 kg |
| TOTAL WEIGHT (ATM) |
2,700 kg |
| PAYLOAD CAPACITY |
1,820 kg |
| LOADING HEIGHT |
63 cm |
| WHEELS |
13", 5 Studs, 4 Wheels |
| AXLES |
2 Axles, With Brakes |
| OPENING / DETACHABLE SIDES |
All 4 Sides |
| SIDE MATERIAL |
Aluminium |
| FLOOR MATERIAL |
Phenolic Plywood 18mm |
| INTERIOR TIE DOWN ANCHOR POINTS |
8 Hooks |
| OTHER INCLUDED FEATURES |
13 or 7 Pin Plug, Gas Struts On Back Ramp, Jockey Wheel, Removable Corner Posts, Strong Tailgate Ramp 90cm |
| TIP TYPE |
Hydraulic Tip |
| BACK TIP ANGLE |
11 degrees |
| OPTIONAL EXTRAS |
Aluminium Floor Material, Cage Grill Sides 60cm, Electric Tip including Battery & Charger, Electric Winch With Wire, Extra Height Opening Steel Sides 30cm, LED Lights Kit with Control Box, Ramp Stiffener, Removable Winch Braket, Winch With Wire, Wireless Remote Control for Electric Winch |
| ROUGH SIZE IN FEET |
17×7 |
