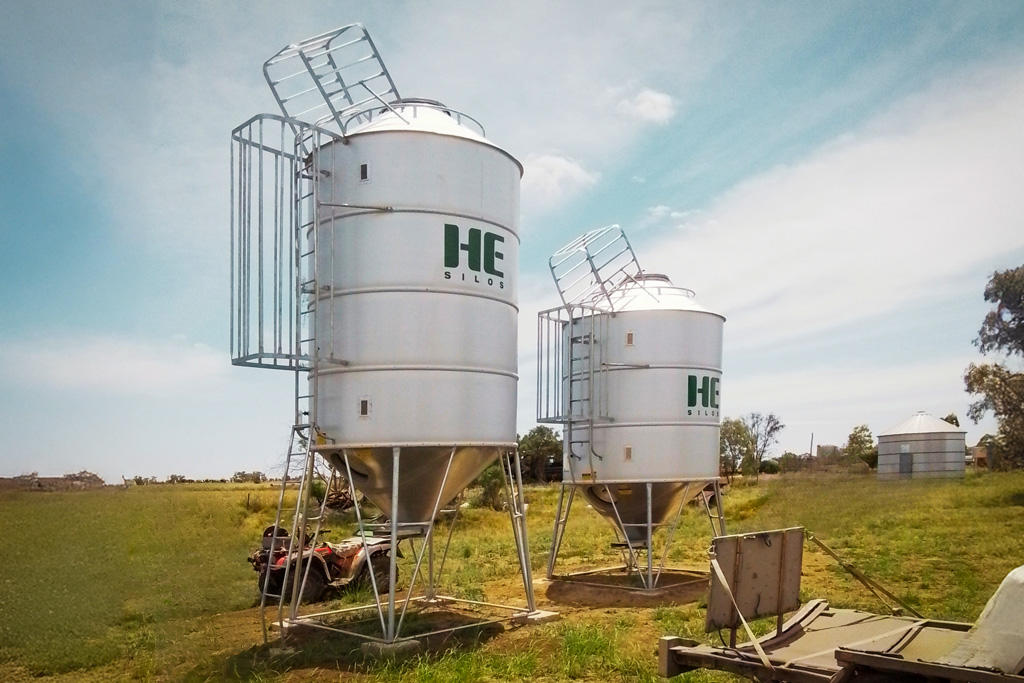

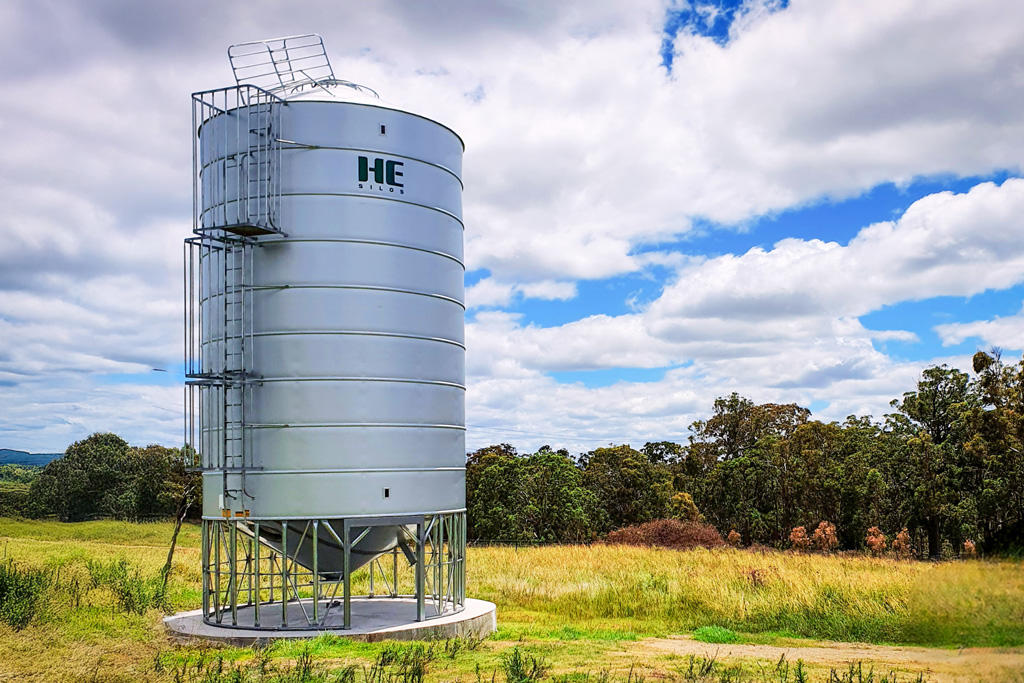

Fully sealed silos exceeding Australian grain storage standards, delivered and installed ready for use. Features- Capacities ranging from 4 to 120 tonnes
- Delivered and installed ready for immediate use
- Sealed, gas-tight silos compliant with Australian Standard AS2628
- Constructed with Zincalume barrels and roofs, and a galvanised support structure
- Custom design available for specific requirements
- Covered by a 5-year warranty
- HE Silos phosbox for safer fumigation at ground level
- Optional upgrades: white Colorbond barrel and roof to reduce internal temperature, and stainless steel base
Safety & Operation Features- Two sight glasses (top and bottom) indicate grain level
- Pressure relief valve
- Ground opening lid and base manhole for safe and easy access
- Optional aeration and fumigation systems
Designed for long-term grain storage, these sealed silos act as controlled-atmosphere fumigation chambers, ensuring effective pest control through compliance with AS2628, including:
Sealed, Gas-Tight Silo Advantages- Internal and external seam sealing
- High-density rubber seals on all openings
- Pressure relief oil valve
- Factory and onsite pressure testing
- Custom upgrades for improved storage conditions
All capacities are approximate and based on wheat at 820kg per cubic metre with a 5% compaction rate.
SpecificationsModel | Cubic Capacity (m³) | Height (m) | Tonnes (Approx.) | Auger Diameter (mm) | Cone Degree | Cone to Ground (mm) |
|---|
150 | 5.5 | 3.3 | 4.4 | 600 | 30° | 600 |
300 | 9.8 | 3.8 | 8.3 | 600 | 45° | 600 |
420 | 13.5 | 4.6 | 11.4 | 600 | 45° | 600 |
510 | 17.1 | 5.5 | 14.5 | 600 | 45° | 600 |
Additional Options
- Optional upgrades for temperature and corrosion resistance
- Aeration and fumigation system integration available
To contact Hesilos about Transportable Grain Silos use Get a quote.
