Solid Interceptor Oil Separator Top Mount | SIOSTMGet latest price

Separation Type

• CMS and OWS Filtration

Types of Separation

• Suspended solids reduction down to 20-microns

SIOSTM Dimensions

• 1.47m Long x 1.02m Wide x 1.69m High

MAIN COMPONENTS

1 GUTTER PUMP

2 CMS-OWS SOLIDS FILTRATION and OIL-WATER SEPARATION

3 TRANSFER PIT WITH PUMP

4 RAIN DIVERSION VALVE

P SINGLE PHASE POWER

S SEWER DISCHARGE

R RAIN WATER DIVERSION

D SLUDGE DRAIN

W WASH WATER TO BE PLUMBED THROUGH THE FLOW DETECTION CIRCUIT

Wash Bay for Parts

System Specifications

• Pad Qty: 0.5 Pad
• Wash Bay Size: 2.4m Long x 3.5m Wide
• Walls: 1.2m | 1.8m | 2.4m High
• Ramps: 0.6 Wide x 1.5m Long each
• Gutter: Galvanised with float switch
• Weight Capacity: 2 Tonne per axle rating
• Warranty: 10 Years structural warranty

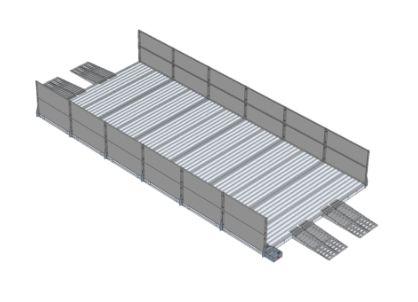

Wash Bay for Trucks

System Specifications

• Pad Qty: 6 Pads
• Wash Bay Size: 14.4m Long x 6.5m Wide
• Walls: 1.2m | 1.8m | 2.4m High
• Ramps: 2T – 1.5m Long & 12T 2m Long
• Gutter: Galvanised with float switch
• Weight Capacity: 2T and 12T (Tonne per axle rating)
• Warranty: 10 Years structural warranty

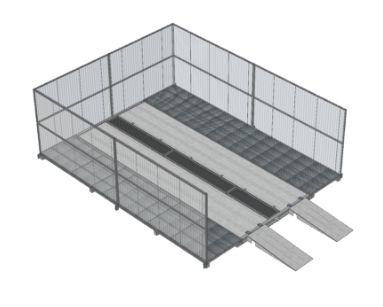

Wash Bay for Cars & 4WD

System Specifications

• Pad Qty: 1 Pad with 1.1m wide walkways
• Wash Bay Size: 6.0m Long x 4.7m Wide
• Walls: 2.0m High
• Ramps: 0.9 Wide x 1.5m Long each
• Gutter: Galvanised with float switch
• Weight Capacity: 2T and 12T (Tonne per axle rating)
• Warranty: 10 Years structural warranty
