Similarly, if the flow of the water goes too high the SIV closes off at a predetermined safe slow rate. The SIV differs from its electrical counterpart in that, when it closes, it arrests the flow of water rapidly and then shuts of slowly. This feature is necessary to stop the increase of flow quickly to prevent run away conditions and then stop the flow slowly to prevent hydraulic shock loads and slow down the water in the pipe upstream of the valve at a controlled rate. If the valve does not close slowly it will cause a high-pressure surge. The pipe may be overloaded to the point of failing.

Purpose

The SIV serves the following purposes:

• Tripping-The SIV automatically closes or trips when the flow rate exceeds a specified limit.
• Controlled Closing-The SIV closes in a controlled way designed to prevent excessive pressure surges or water hammer. It closes rapidly at first to prevent a ‘run-away flow’, and then it closes at a slow controlled rate to prevent excessive pressure surges.
• Flushing-The SIV is used to safely flush pipelines at flows at 3% to 90% of the nominal closing flow rate.
• Isolation-The SIV can be manually closed to isolate the downstream pipeline.

Safety Isolation Valve Features

• The SIVs offer low resistance to the flow when fully open.
• The SIVs contain no internal by-pass passages or connections. Hence, the only cause of leakage through a ‘closed’ SIV could be:
• dirt trapped between the main poppet and the seat failed main piston seal.
• Initial rapid closing is followed by a final slow shut-off to control pressure surges and prevent water hammer when the SIV trips due to excess flow through it.
• The SIV is factory pre-set internally to the specified maximum closing flow rate. To prevent tampering or unauthorized adjustment, changing an internal valve part only can alter the maximum closing trip flow. The trip flow setting can however be adjusted downwards (if desired) by turning the hand wheel. An indicator shows the approximate trip setting for all valves larger than 50NB.
• In the event of individual component failure in the valve, the SIV is designed to fail safely.
• Main seal failure may prevent full closure, but the SIV will close in response to excess flow and will limit the flow to the flushing flow rate.
• Turning the hand wheel easily closes the SIV. The final closing rate is internally slowed down to prevent water hammer.
• The flush flow rate can be increased from zero to 70% of the closing trip flow by activating the flush vent and turning the valve hand wheel to open. This allows controlled flushing of the pipeline.
• The manual opening action will let water discharge from the adjustment housing at a rate of about 1 l/s. The water discharge will stop when the control hand wheel is adjusted past the maximum flow setting or when the flush trigger is released.
• Cartridge construction allows the SIV to be maintained in-line by exchanging service exchange ‘cartridge’ units. All the wear parts can be changed in one operation. It is preferably to remove a valve for a full service.

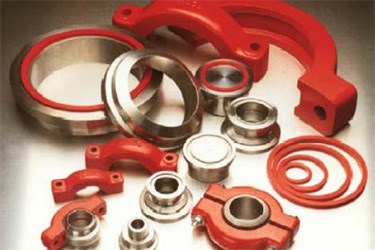

• The body casting is made from cast steel to BS 3100 grade A2 and can be made with a wide range of flanges or hub connections. All internal working parts are made from corrosion resistant materials.

Technical Specifications

• Designed to ANSI B16.34.
• Valve body is rated to 25 MPa (ANSI Class 1500), but the valve pressure rating is limited by the flanges fitted. For fatigue life up to 10 million cycles, the valve body pressure rating is reduced to 14 MPa.
