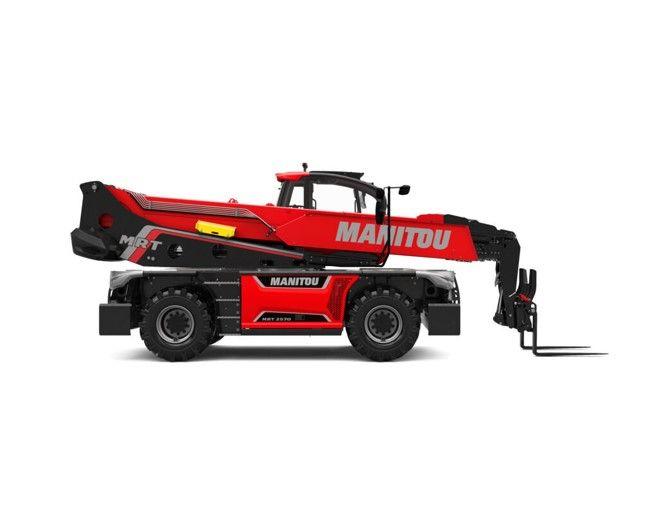

Rotating Telescopic handler | MRT-X 2570 Get latest price

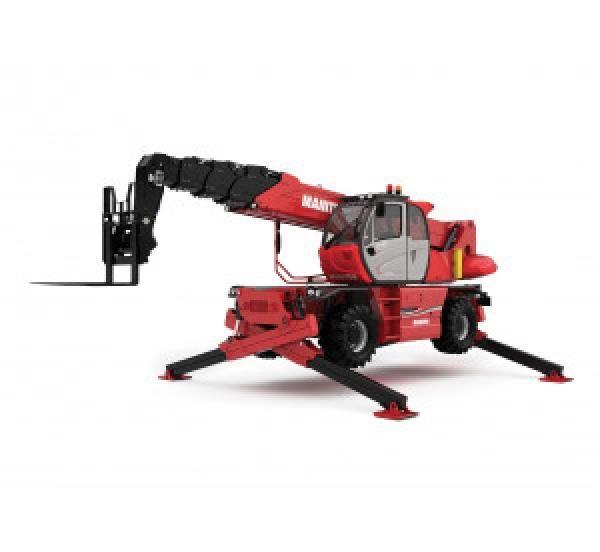

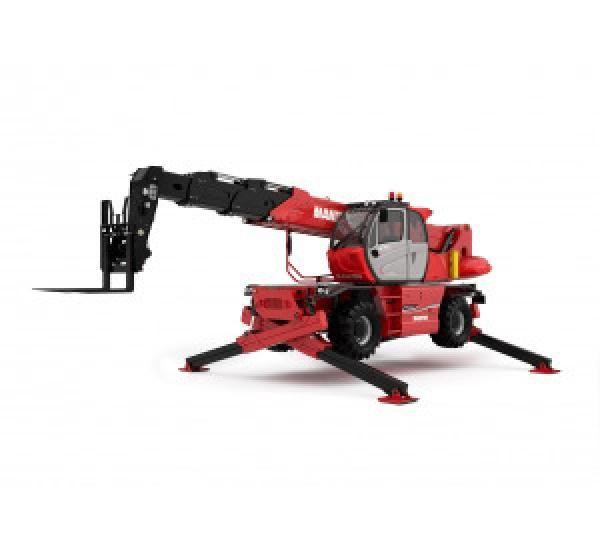

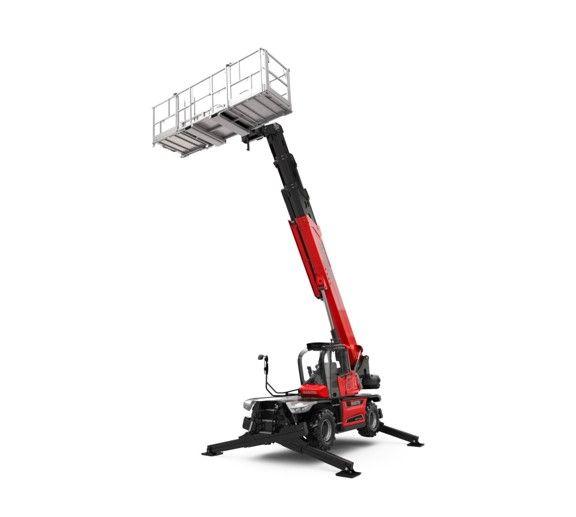

The MRT-X 2570 is a powerful all-terrain rotating telescopic handler. This 3-in-1 machine is a telescopic handler, winch and aerial work platform with a multitude of compatible attachments for versatility and performance on your construction and industrial sites. 360° rotation of the turret and its exceptional cab visibility allows you to perform operations more easily without having to move the machine. The pentagonal section of the boom allows for precise movement and stability of the machine with automatic leveling of the stabilizers. Equipped with smart features for optimum handling and safety, the MRT-X 2570 is the tool you won't want to do without!

TECHNICAL FEATURES

Capacities

• Max. capacity

  • 7000 kg
• Max. lifting height

  • 24.80 m
• Max. outreach

  • 20.50 m

Weight and dimensions

• Overall width

  • 2.50 m
• Overall height

  • 3.10 m
• Overall cab width

  • 0.96 m
• Ground clearance

  • 0.36 m
• Wheelbase

  • 3.25 m
• Tilt-up angle

  • 12 °
• Tilt-down angle

  • 112 °
• Turret rotation

  • 360 °
• Overall weight

  • 21300 kg
• Forks length / width / section

  • 1200 mm x 125 mm x 60 mm

Wheels

• Standard tyres

  • 445/65 R22,5
• Drive wheels (front / rear)

  • 2 / 2
• Steering mode

  • 2 wheel steer, 4 wheel steer, Crab mode

Stabilisers

• Stabs Type

  • Telescopic Duplex
• Controls with stabs

  • Stabs Commands Individual or Simultaneous

Engine

• Engine brand

  • Yanmar
• Engine norm

  • Stage IIIA / Interim Tier 4
• Engine model

  • 4TN107FTT-6SMU1
• I.C. Engine power rating / Power (kW)

  • 173 Hp / 127 kW
• Max. torque / Engine rotation (min)

  • 805 Nm @ 1500 rpm
• Number of cylinders - Capacity of cylinders

  • 4 - 4567 cm³
• Engine cooling system

  • Water cooled
• Number of batteries / Battery / Batteries capacity

  • 2 x 12 V / 120 Ah
• Battery starting current

  • (EN)850 A

Transmission

• Transmission type

  • Hydrostatic with Speedshift
• Gearbox / Number of gears (forward) / Number of gears (reverse)

  • Speedshift 2 / 2
• Max. travel speed

  • 40 km/h
• Parking brake

  • Automatic negative parking brake
• Service brake

  • Oil-immersed multi-discs braking on front & rear axles

Hydraulics

• Hydraulic pump type

  • Load sensing pump
• Hydraulic flow

  • 185 l/min
• Hydraulic Pressure

  • 350 bar

Tank capacities

• Engine oil

  • 13 l
• Hydraulic oil

  • 300 l
• Fuel tank

  • 320 l

Miscellaneous

• Steering wheels (front / rear)

  • 2 / 2
• Controls

  • 2 Joysticks
• Safety cab homologation

  • ROPS - FOPS cab (level 2)
• Attachment recognition system (E-Reco)

  • Standard
