Robotiq Palletizing Solution – PE10Get latest price

PE10 Palletising Solution - Compact Automation for Light Payload Applications

The Robotiq PE10 is a compact, ready-to-deploy palletising solution designed for light payload applications where simplicity, reliability, and fast deployment are critical.

Built around a collaborative robot with an approximate 1300 mm reach and up to 10 kg payload capacity, the PE10 is ideal for operations handling smaller cartons and consistent pallet formats. Its pedestal-mounted design allows full pallet coverage while maintaining a minimal footprint.

Designed specifically for boxed products, the system features Robotiq’s intuitive guided setup interface, enabling operators to configure pallet patterns quickly without complex programming or robotics expertise.

Core Performance Specifications

• Max Payload: Up to 10 kg
• Robot Reach: ~1300 mm
• Max Pallet Height: Up to 2150 mm
• Throughput: Up to 10–13 cycles per minute (application dependent)

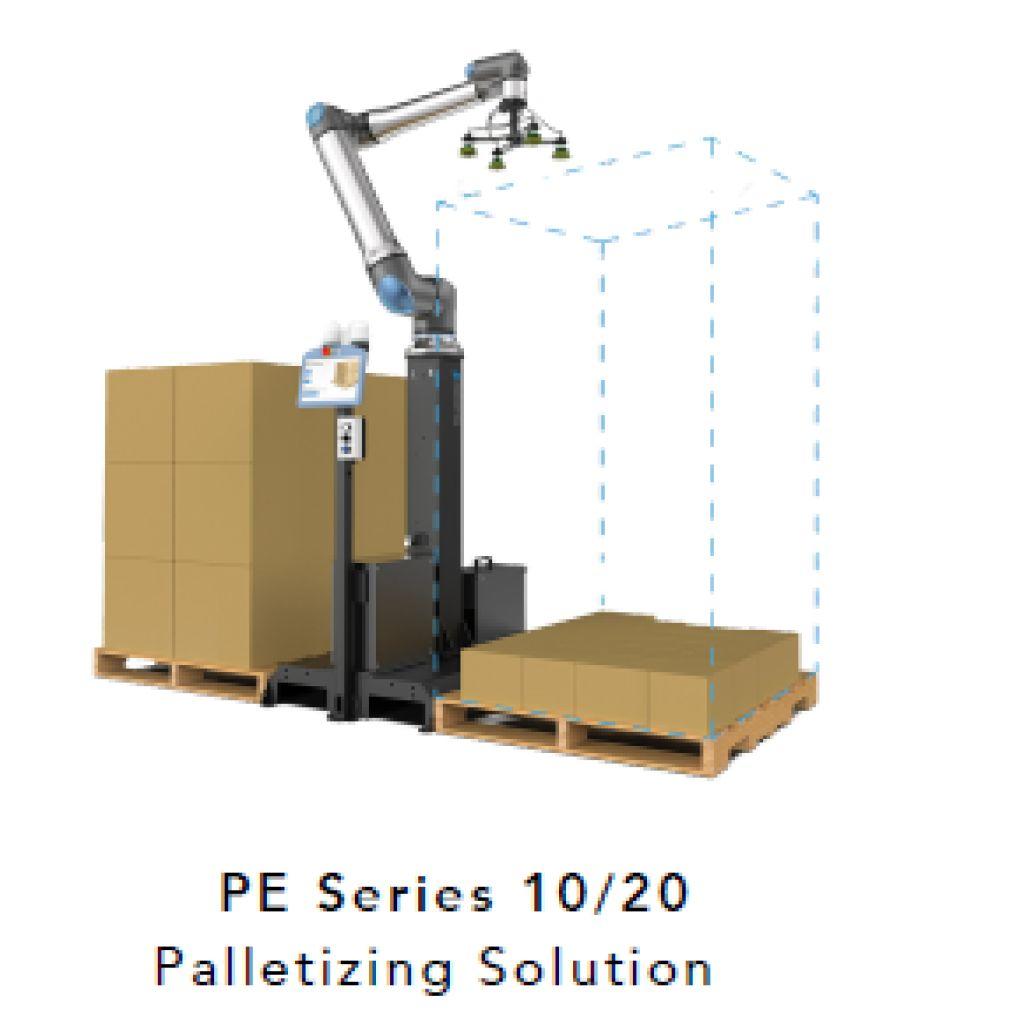

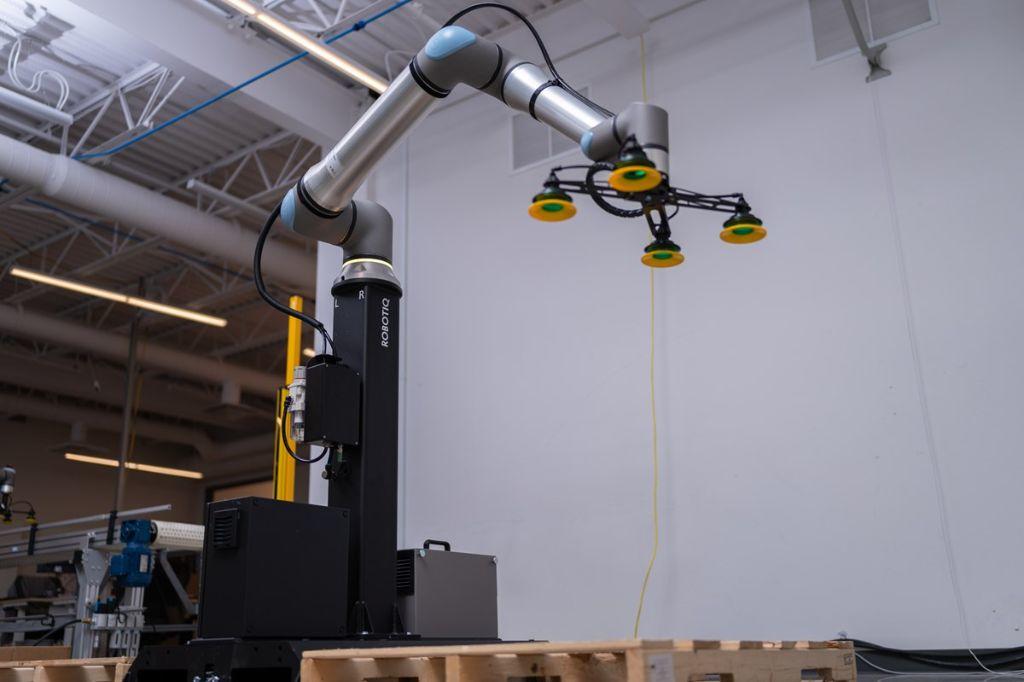

• Mounting: Compact pedestal configuration

System Advantages

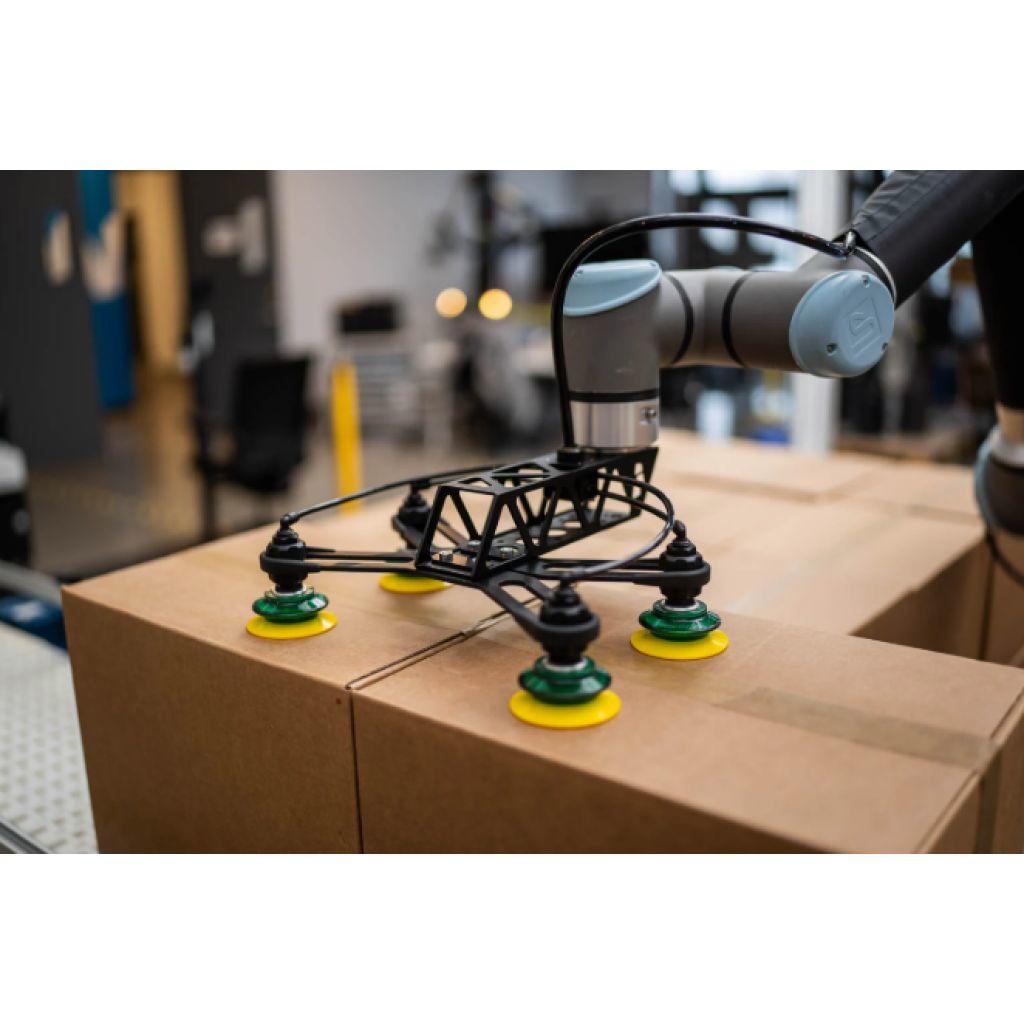

• Optimised for lightweight carton handling
• Small footprint for space-constrained production areas
• Fast deployment with minimal integration requirements
• Guided setup reduces commissioning time and operator training
• Reliable, repeatable palletising performance

Typical Applications

• Light boxed product palletising
• End-of-line automation for small products
• Fixed or low-variation pallet formats
• Food, consumer goods, and light manufacturing environments

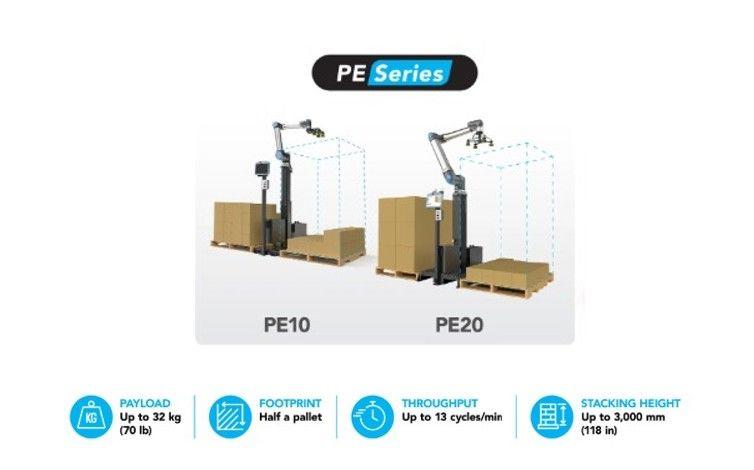

Explore the full PE Series solution or request a quote: https://industrial-robotics.com.au/product/palletiser-solution-pe-series/#tab-description
