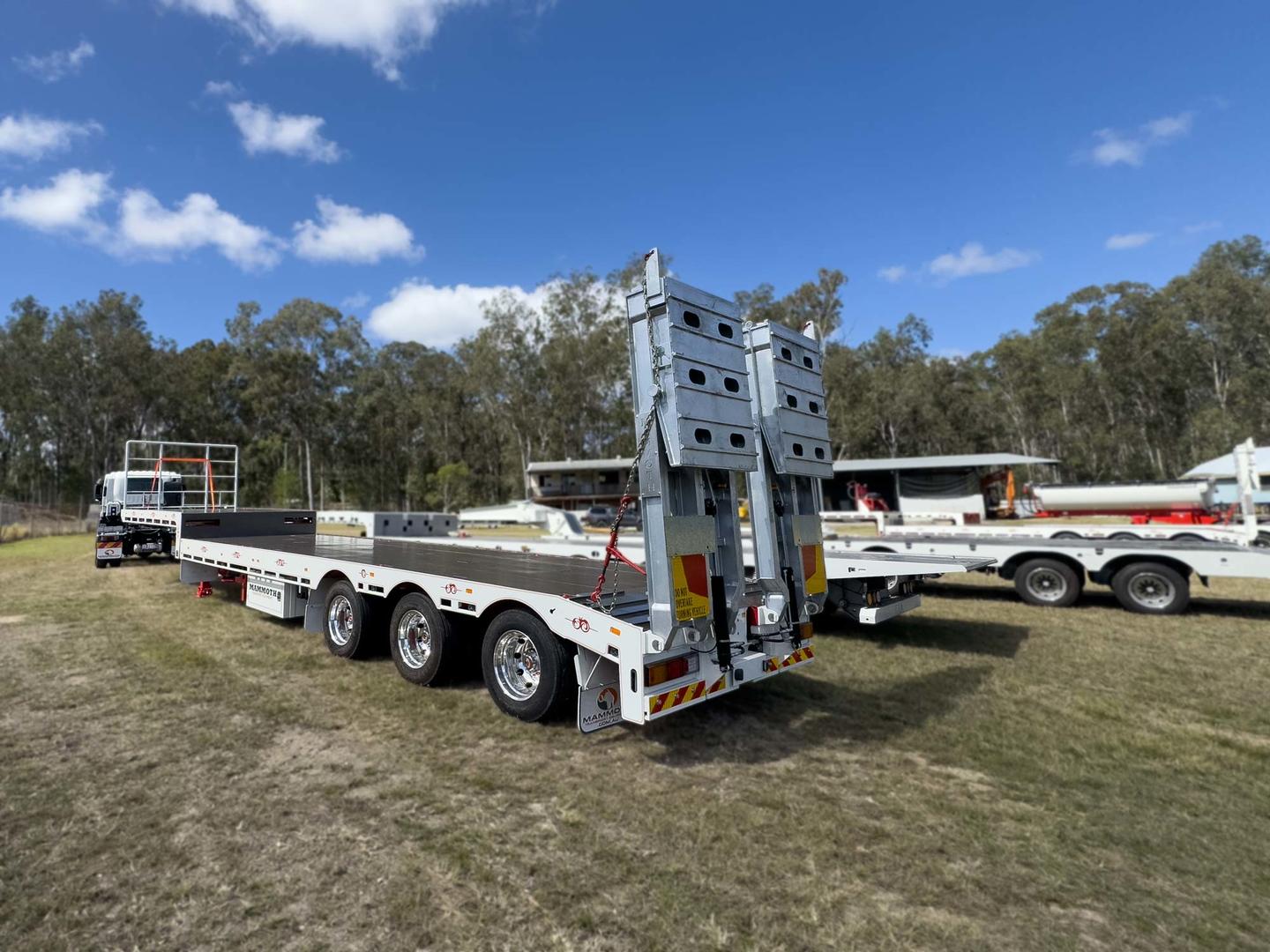

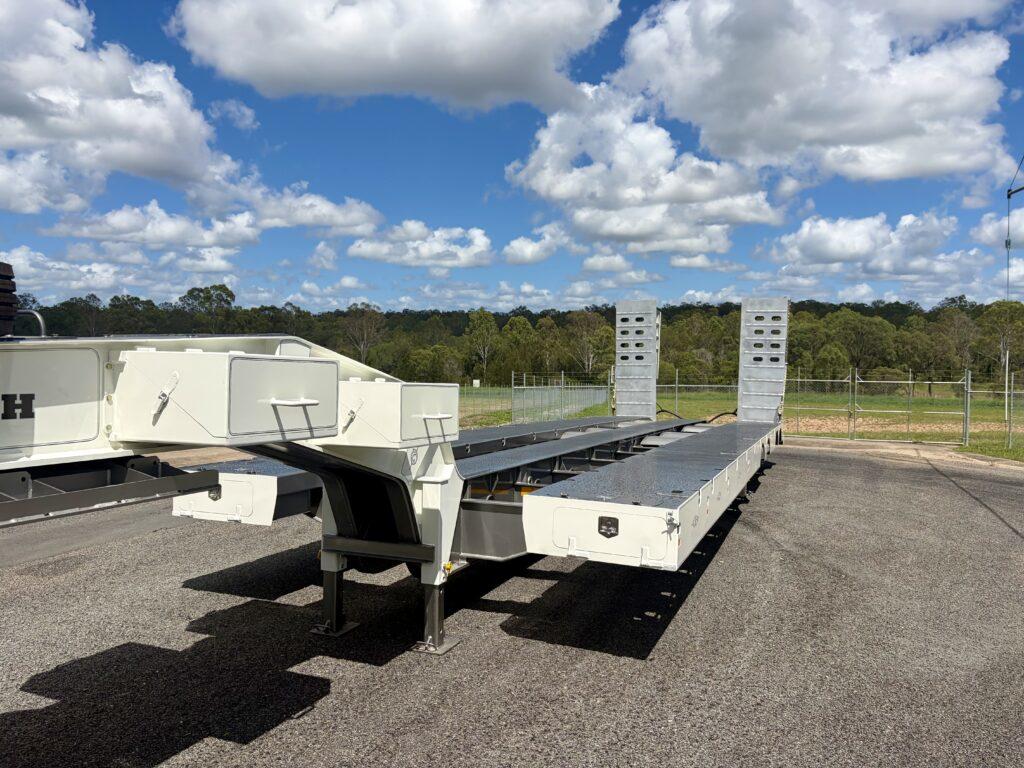

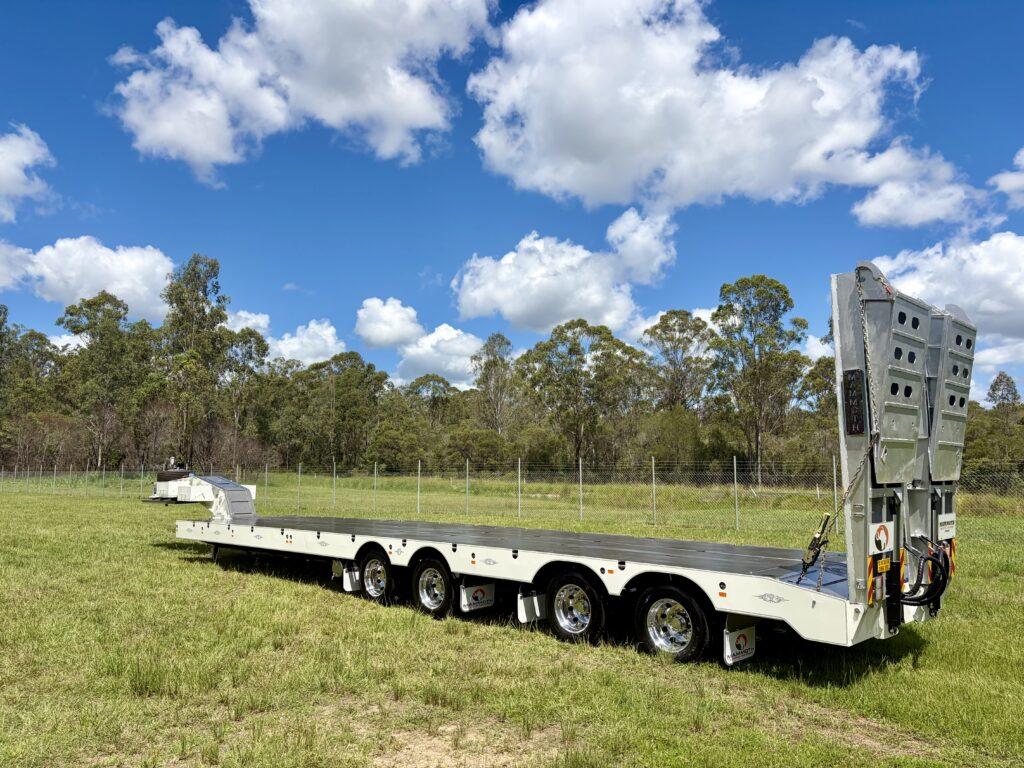

Maximises heavy-haul efficiency with high payload and adaptable widening deck. The Quad Low Loader is engineered for heavy haulage, featuring a quad-axle design and a widening deck, ensuring efficient transport of wide or oversized loads while maximising payload per trip.
Key Features- Quad-axle configuration with high payload capacity (up to 62 tonnes ATM) for increased productivity and cost efficiency.
- Deck width adjustable from 2.5 metres to 3.7 metres, suitable for oversized machinery or equipment.
- Robust construction using BS700 grade steel for enhanced durability in demanding conditions.
- Two steerable rear axles with accessory-activated locking (with alternative locking options available).
- KHitch/Weweler airbag suspension for a smoother, safer ride.
- Air Brake Corporation braking system with premium tyres and alloy rims.
- Hydraulic network cylinders operated by 12V power pack, remote & fixed control panels (other power options available).
- LED lighting, galvanised bi-fold ramps, tie-down points, lockable steel toolboxes, and removable flag holders as standard.
- Sand-blasted and painted with 2Pac paint (colour options available).
- 12 month warranty included with purchase.
Technical SpecificationsWidth | 2.5 m to 3.7 m |
Deck Length | 12.5 m |
ATM (Aggregate Trailer Mass) | 62 t |
GTM with Airbag Suspension | 36 t |
Tare | 14.5 t |
Construction | BS700 grade steel, 10mm plasma cut flat coaming rail, 5mm grade flooring |
Axles | KTitch axles, 2 steerable rear axles |
Suspension | KHitch/Weweler airbag suspension |
Brakes & Tyres | Air Brake Corporation system
19.5" tyres, 10 stud alloy rims, inc. 1 x spare |
Hydraulics | Hydraulic network cylinders, 12V power pack, remote & fixed control panel |
Lighting | Hella LED |
Standard Features- Galvanised bi-fold ramps with pull-out top deck
- 2-position oscillating skid plate with drop-in king pin
- Data Track Pro hubometer, raise/lower valve
- 34 deck tie-down points, gate pockets, drop-down landing legs
- Flashing light, fitted oversize signage
- Four lockable steel toolboxes (two large, two small)
- Aluminium water tank, removable flag holders
- Tyre carrier (gooseneck mounted), drop-in twist locks
- Sandblasted and painted with 2Pac paint
To contact Mammoth Transport about Quad Low Loader use Get a quote.
