Attached to the linkage arms, it can be hydraulically folded for transport, and when in transport configuration, it is less than four metres in height, ideal when transporting in areas with overhanging foliage. Benefitting from high ground clearance, this range is ideal when working with large swaths of dense crop. Available on the 760 and 820 the Cardanic rotor suspension technology means that the rotors can move both laterally and fore-aft freely for efficient operation.
Explore Features

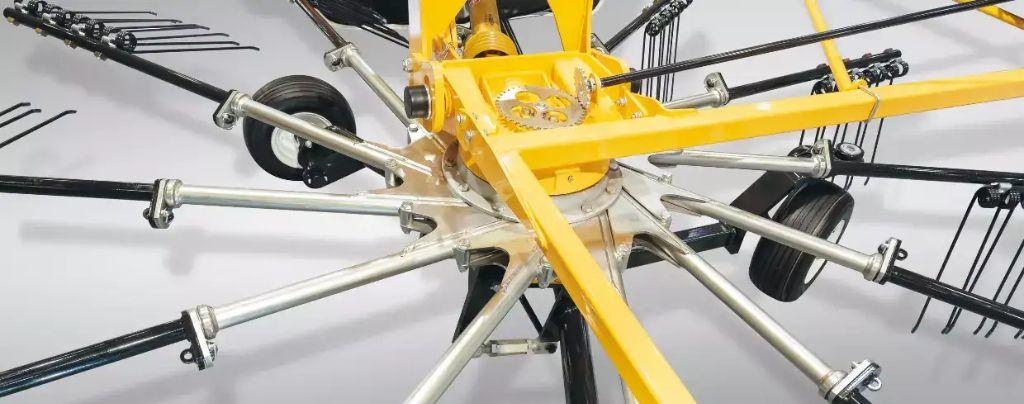

Maintenance free rotor arms
The rotor arms on the ProRotor 420, 450, L 630, L 640 Auto-Steer, L 640, C 760 and C 820 models feature maintenance-free ball bearings at either end. Manufactured from solid steel, they have been engineered by design to withstand intensive usage.

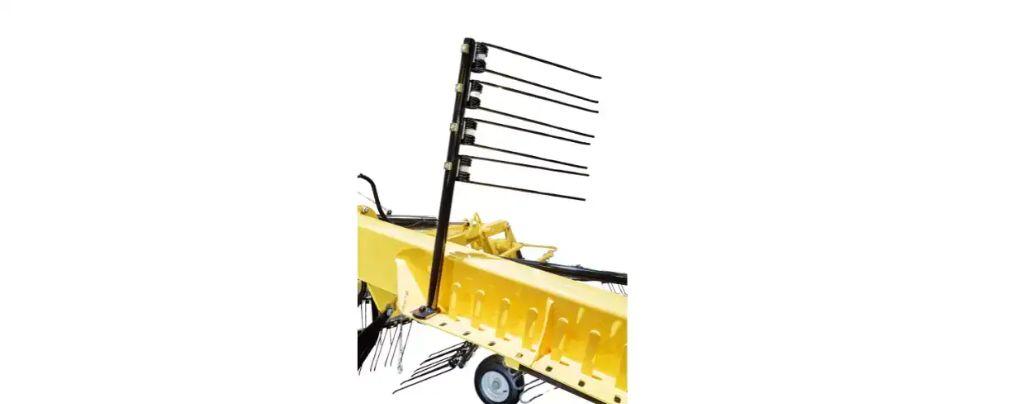

Efficient tine arm storage
For easy transport and storage, the tine arms can be easily dismounted and stored in a dedicated tine arm storage area. This enables better visibility during transport, and also reduces the overall width of the rake, ideal when travelling down narrow country lanes or when being stored away during winter.

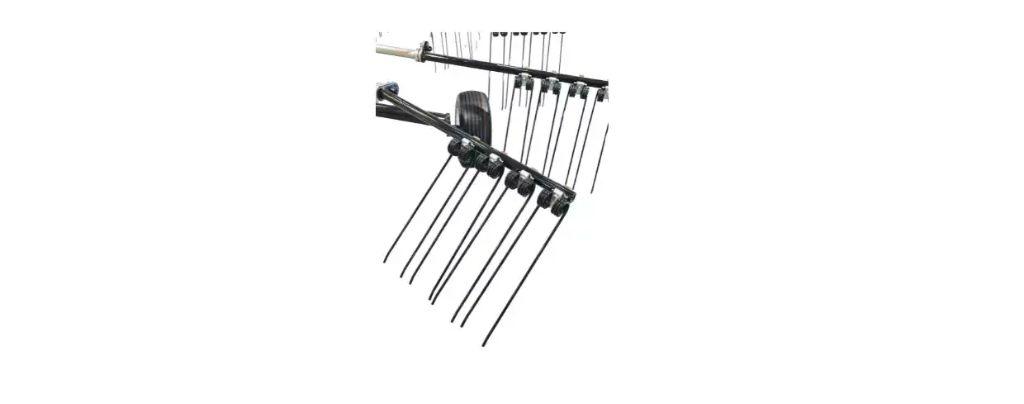

Tangential tine arm technology
The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.
Available Models:
Specifications:
|
New Holland ProRotor™ C 660
|
New Holland ProRotor™ C 660M
|
New Holland ProRotor™ C 760
|
New Holland ProRotor™ C 820
|
|
|---|---|---|---|---|
Specifications |
||||
|
Type of rake
|
Central delivery
|
Central delivery
|
Central delivery
|
Central delivery
|
|
Mounting type
|
2- point linkage
|
3- point linkage
|
2- point linkage
|
2- point linkage
|
|
Working width (m)
|
6,15-6,55
|
6,15-6,55
|
6.5-7.6
|
7.0-8.2
|
|
Number of swaths
|
1
|
1
|
1
|
1
|
|
Rotor diameter (m)
|
2.95
|
2.95
|
3.2
|
3.5
|
|
Tine arms per rotor / double tines per tine arm
|
10/4
|
10/4
|
12/4
|
12/4
|
|
MIN-trans detachable tine arms
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Tangential tine arm control
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Covered cam track
|
–
|
–
|
Standard
|
Standard
|
|
3 wheel multi-touch chassis
|
–
|
–
|
Standard
|
Standard
|
|
Advanced wide-track axle
|
Standard
|
Standard
|
–
|
–
|
|
Drive chassis
|
Standard
|
–
|
Standard
|
Standard
|
|
3-D tandem bogie axle
|
Optional
|
Optional
|
–
|
–
|
|
Tandem caster wheels
|
–
|
–
|
Optional
|
Optional
|
|
Central height adjustment
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Central height adjustment
|
2.95
|
2.95
|
2.92
|
2.92
|
|
Transport height without/with rake arms (m)
|
2.75 / 3.5
|
2.45 / 3.2
|
3.50 / 4.00
|
3.59 / 4.00
|
|
Shock absorber
|
–
|
Standard
|
–
|
–
|
|
Active steering of the frame
|
Standard
|
–
|
Standard
|
Standard
|
|
Central cardanic suspension
|
–
|
–
|
Standard
|
Standard
|
|
Rotors tyres
|
16x6.5-8
|
16x6.5-8
|
16x6.5-8 10PR
|
16x6.5-8 10PR
|
|
Main frame tyres standard
|
10/80x12
|
–
|
10.0/75-15.3 8PR
|
10.0/75-15.3 8PR
|
|
Main frame tyres optional
|
–
|
–
|
13.0/55-16
|
13.0/55-16
|
|
Minimum PTO Power [kW/hp(CV)]
|
30/40
|
44/60
|
30/40
|
40/55
|
|
PTO speed (rpm)
|
540
|
540
|
540
|
540
|
|
Hydraulic remote required
|
1SA
|
1SA
|
1SA
|
1SA
|
|
Weight (kg)
|
857
|
1140
|
1930
|
2010
|
