Metallic Ball Valve Pumps SeriesGet latest price

Sandpipers Metallic Ball Valve Series are AODD pumps ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves

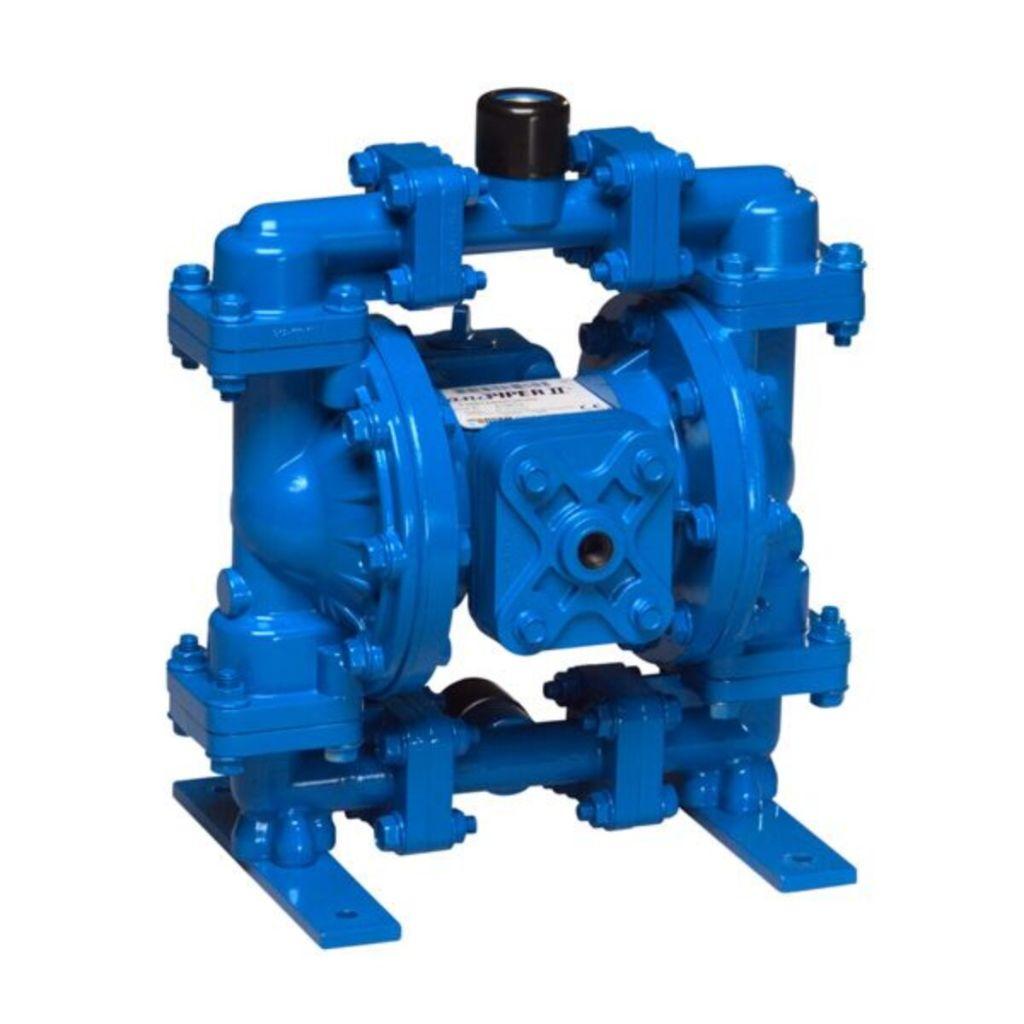

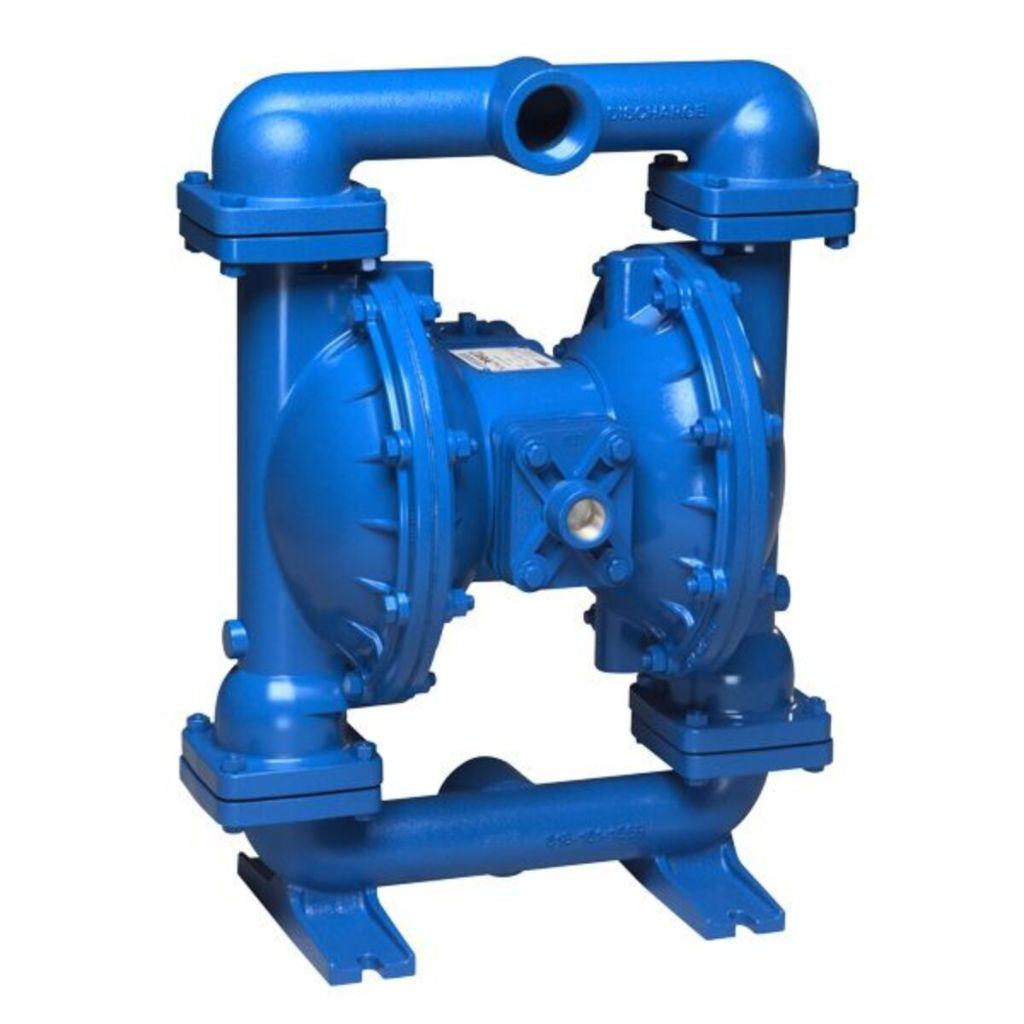

Fully-bolted metallic pump in either Aluminium, Cast Iron, 316 Stainless Steel, or Alloy C. The pump is designed to guarantee Non-Stalling and comes with a 5-year limited warranty, ensuring performance and reliability.

Performance Criteria:

• Capacity: To 889 l/min
• Pressure: To 8.6 bar
• Temperature: To 150°C
• Viscosities: To 25,000 cps
• Sizes: ¼” to 3”

Models, Size & Performance:

• E02
  • Size: ¼"
  • Capacity: To 16.6 l/min
  • Pressure: To 8.6 bar
• S05
  • Size: ½"
  • Capacity: To 56 l/min
  • Pressure: To 8.6 bar
• S1F
  • Size: 1"
  • Capacity: To 170 l/min
  • Pressure: To 8.6 bar
• S15
  • Size: 1½"
  • Capacity: To 401 l/min
  • Pressure: To 8.6 bar
• S20
  • Size: 2"
  • Capacity: To 567 l/min
  • Pressure: To 8.6 bar
• S30
  • Size: 3"
  • Capacity: To 889 l/min
  • Pressure: To 8.6 bar
