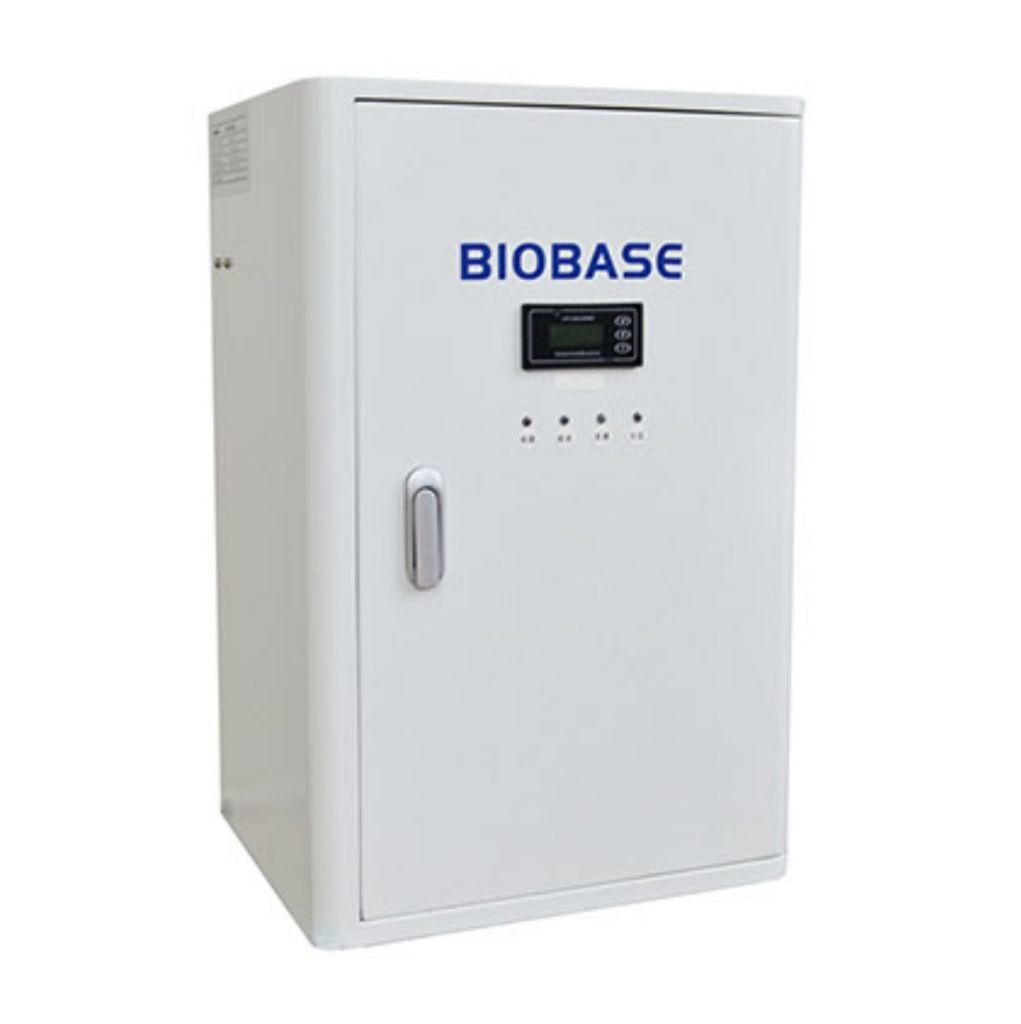

The Biobase Laboratory Water Purifier 20/30/40L is a range of water purification systems that are designed specifically for laboratories. These systems are manufactured by Biobase, a leading provider of laboratory equipment and solutions. There are several benefits to using the Biobase Laboratory Water Purifier 20/30/40L in a laboratory setting.
Biobase Laboratory Water Purifiers are designed to produce high-purity water that is suitable for use in a wide range of laboratory applications. The systems use a multi-stage filtration process that removes impurities and contaminants from the water, including bacteria, viruses, organic compounds, and heavy metals. This ensures that the water is of the highest quality and is safe to use in various lab experiments and testing.
A primary benefit of these Biobase Laboratory Water Purifier systems is their compact size. These systems are much smaller than other laboratory water purification systems, which makes them ideal for laboratories with limited space. Despite their small size, the Biobase Laboratory Water Purifier 20/30/40L systems are highly efficient and produce high-quality water.

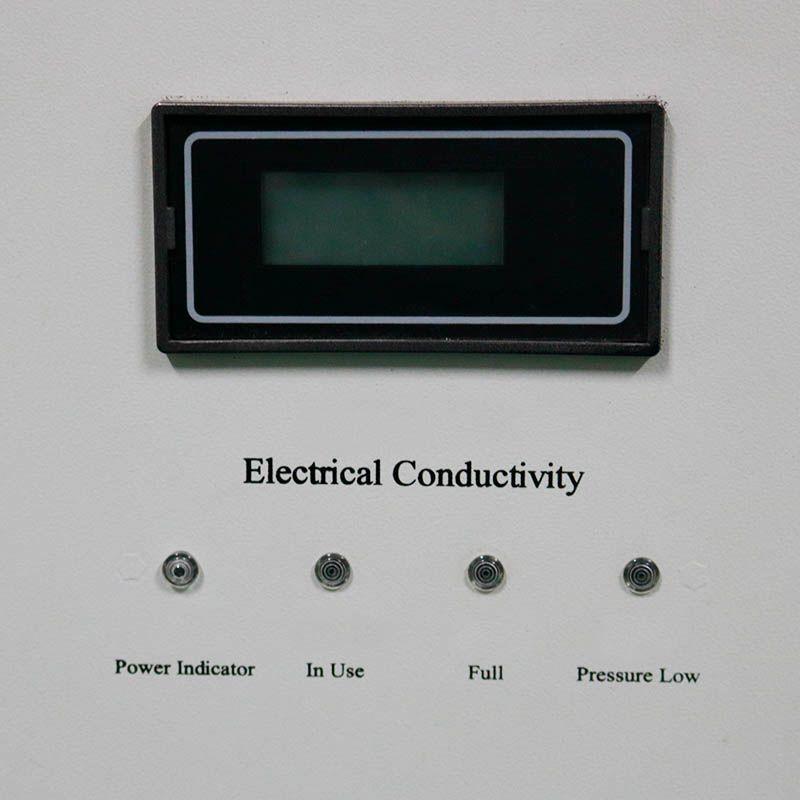

The Biobase Laboratory Water Purifier 20/30/40L is also easy to use and operate. The system features a user-friendly interface that allows for easy monitoring and control of the purification process. The touchscreen display provides real-time information on the status of the purification process, as well as alerts for maintenance and filter replacements.
Another benefit of the Biobase Laboratory Water Purifier 20/30/40L is its efficiency. The system is designed to be highly efficient, with low water wastage and low energy consumption. This makes it an environmentally friendly choice for laboratories that are looking to reduce their carbon footprint and minimize their impact on the environment.
Overall, the Biobase Laboratory Water Purifier 20/30/40L is a high-quality and reliable water purification system that is ideal for laboratories with limited space. Its advanced filtration technology, user-friendly interface, efficiency, and compact size make it an excellent choice for laboratories that require a high degree of purity and reliability in their water supply.
With a resistivity of 18.2 M?-cm at 25°C, ultrapure (Type 1) water is a requirement for analytical laboratories. Flow cytometry, pyrogen-sensitive applications, and cell and tissue culture are all typical applications for Type 1 water.
Water with this type of resistivity can still contain organic contaminants, endotoxins, and nucleases which don’t impact on resistivity values, so other technologies are required to eliminate them.
Equipment that produces Type 1 water is often referred to as a “polisher” and can be fed from a localized reverse osmosis system, or a centralized ring main depending on usage rate.
Bacteria and organic levels are reduced to the required level, through a dual-wavelength ultraviolet (UV) light (185nm and 254nm). The water flows through a vessel containing a UV light, and as it passes through, the light, destroys any genetic organic matter, associated with reproductive functions. This damage prevents the microorganism from multiplying or replicating, which means no infection can occur.
An Ultrafilter (UF) typically rated at 0.01 microns, can also be employed to produce DNase/RNase free water. By using size exclusion, ultrafiltration removes particles and macromolecules including bacteria and viruses. This technology is employed at the end of the system, to ensure the near-total removal of macromolecular impurities.
Each type of water must go through various processes and technologies to achieve a certain standard of purity. The level of purity then reflects what can be used in laboratories. For that reason, it’s important to be able to distinguish between the four types of water, so you can understand how they are utilised in laboratories.
Also known as general laboratory grade water, Type 2 water is produced through a combination of reverse osmosis, and additional technology such as ion exchange or electro deionisation (EDI). Electro deionisation (EDI)is an electrically driven water treatment technology that uses electricity, ion exchange membranes, and resin to remove ionised species from water.
Deionisation removes ions (cations and anions) from RO water by using ion-selective resins. Chemical reactions occur as the water passes through the ion exchange beads, resulting in the removal of ions. This process is continued until all unwanted ions are replaced by hydrogen and hydroxyl ions, which form pure water once combined.
Electro deionisation (EDI) is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC power. EDI is typically used to polish reverse osmosis permeate and is an alternative to Ion Exchange Technology. Using electro deionisation eliminates the need to store and handle the hazardous chemicals used for resin regeneration in mixed beds.
Reverse Osmosis and Ion Exchange Technology create Type 2 water, which has a resistivity of 1-15M?-cm, making it suitable for general applications such as buffer and media production, spectrophotometry, and general chemistry.
Primary grade pure water (Type 3) uses carbon filtration, cartridge filtration, and RO technology and is the most cost-effective way to reduce water contaminants for this application.
Removing up to 99.5% of feed water contaminants, reverse osmosis membranes rated at nominally 0.0001 microns purify water by rejection. Reverse osmosis (RO) is a water purification process that uses a partially permeable membrane to separate ions, unwanted molecules, and larger particles from drinking water. In reverse osmosis, an applied pressure is used to overcome osmotic pressure.
RO technology applies diffusion as opposed to separation, rejecting particles with a higher molecular weight. Feed water temperature, pressure, and the physical condition of the RO membrane are all parameters that affect rejection rates. Rejection rates depend on a number of factors including feed water quality, water temperature, and pressure. For this reason, RO water can’t be specifically classified.
RO water is most commonly used at the starting point for many applications in laboratories, including feeding glassware washing machines, and autoclaves. It can also be used as a pre-treatment for ultrapure water systems, or anything that’s considered non-critical.
Feed water is also referred to as raw or potable water, and the quality of it is dependent on its source. It is important to obtain a detailed water analysis before deciding on an appropriate system for your facility. Any contaminants present in the feed water can substantially inhibit the performance of the RO membrane and result in fouling and reduced service life. Below are some examples:

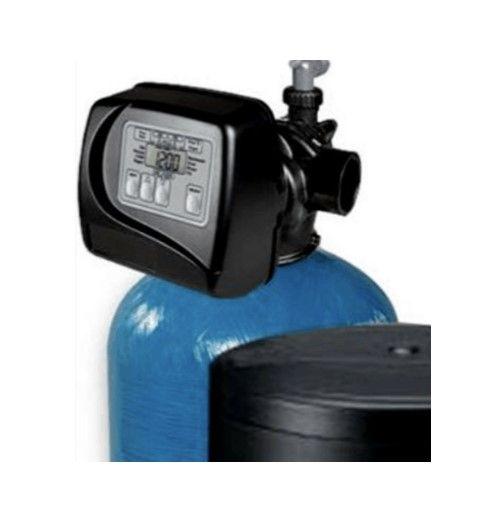

Hard Water: This will require a water softener to remove hardness.
Presence of colloidal clay particles: Will require media filtration and also ultrafiltration as a pretreatment.

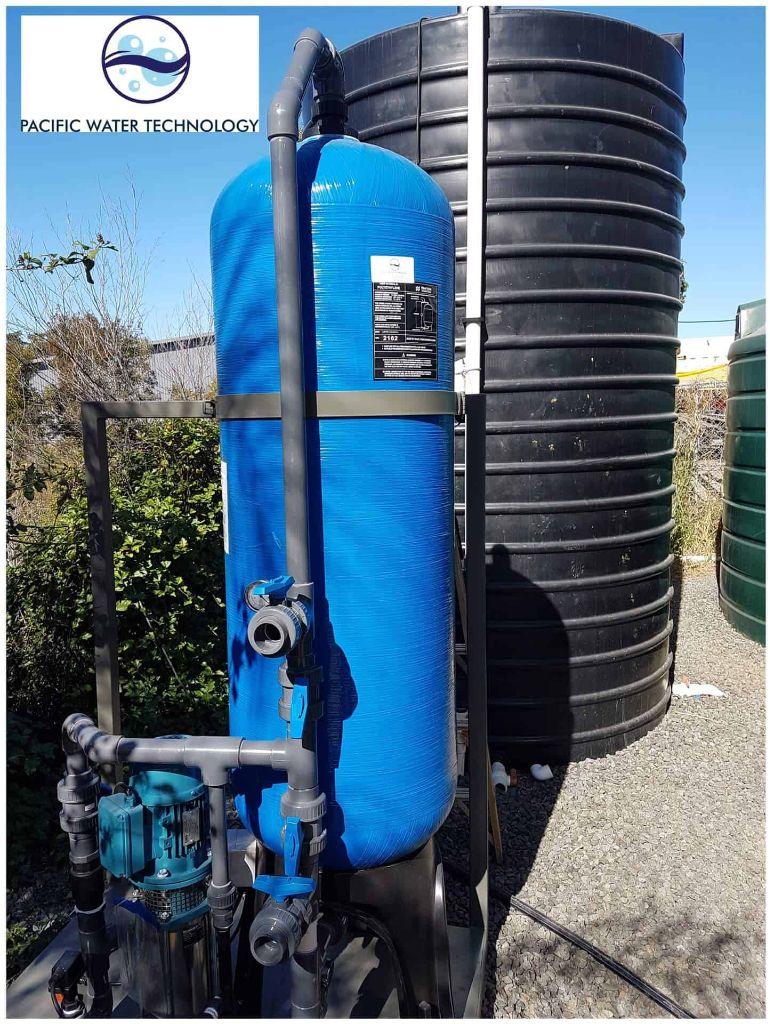

Presence of iron and manganese: Will require water softener or catalytic media filtration.
Low feed pressure: Will require a booster pump to ensure sufficient pressure for the RO system. Each filtration step will result in a pressure drop; hence a reasonable feed pressure is required to begin with. Some laboratory units do come with internal booster pumps that mitigate this concern. The data sheet of the particular RO membrane used will provide data such as optimum supply pressure to maximise ion rejection.
