Horizontal Grinder HG400TX | 173HPGet latest price

Specifications of this product

• Weight: 8.0 tons (17,600 lb)

  Power: 129-kW (173-hp)

  Width: 2 m (6.6 ft)

  Fuel Type: Diesel

Available to Western Australia & Northern Territory

Features of this product

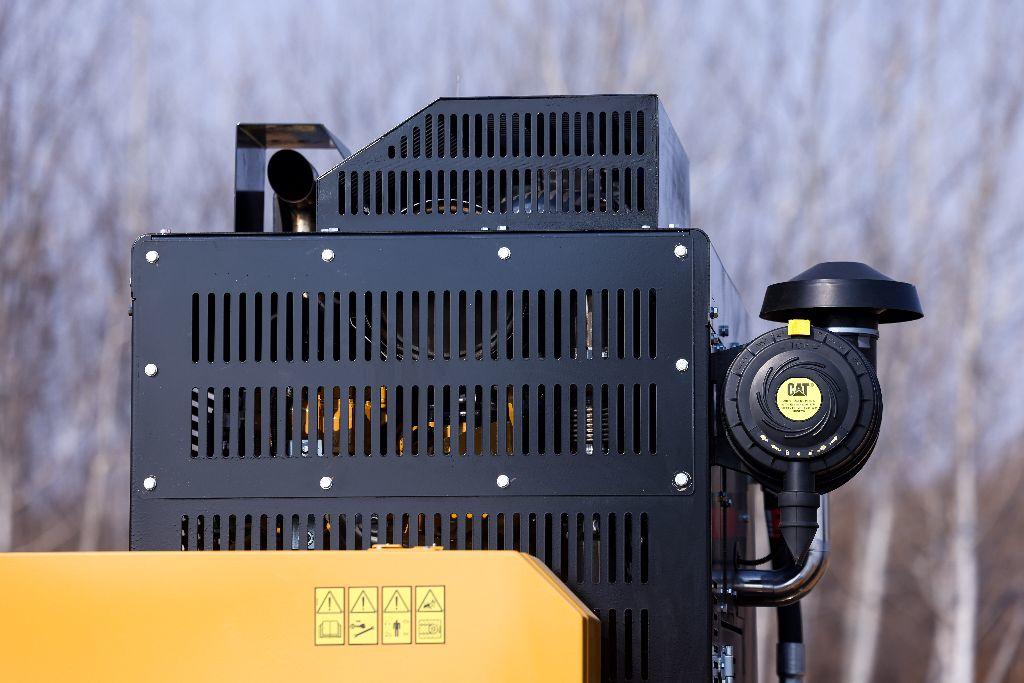

• 73-hp (129-kW) CAT Stage V/T4F engine: Provides high horsepower to process difficult material efficiently. | Materials and green waste can be grinded more thoroughly to meet various application needs.
• Steel Tracks: Designed with 220 mm of ground clearance, the HG400TX can traverse different terrains with ease. | The steel tracks also facilitate enhanced jobsite mobility and ease of transportation between sites.
• Wireless Remote: The HG400TX comes with a full function wireless remote control for operator safety, visibility and feedcrush management. | Feedcrush function on the remote maximizes efficiency of processing material.
• Sideload Screen Design: Screen is designed with one screen on top of another and can be loaded in from the side manually. | Convenient dual-screen side-load design results in easier changes, allowing for product sizing adjustments to be made in less time.
• Steel Infeed Conveyor Chain with dual-driven roller: Feed roller design chain driven by two motors. | Offers durability, while a dual-driven infeed roller provides powerful pulling force to feed challenging materials.
• Various Screens and Grinder Tips Options: The HG400TX offers numerous screens and tips options for different application needs. | Different end products of varying sizes can be produced using the diverse range of screens and grinder tips, thus allowing for consistent output and maintaining end product quality.
• Vermeer Plus+1 control system: Quality Danfoss control system. | Offers four different speed options for more precise feed control. The wireless remote control is there for enhanced operating efficiency.
• Infeed table with flared walls: Large flared walls. | Wide, flared walls allow for hassle-free feeding, and the infeed tailgate can be lowered for extra length to support the feeding of longer materials.
• Feedcrush: Feedcrush function | Feedcrush allows for a better grip on material feeding, especially for smaller, irregular materials, thus enabling increased material processing efficiency.

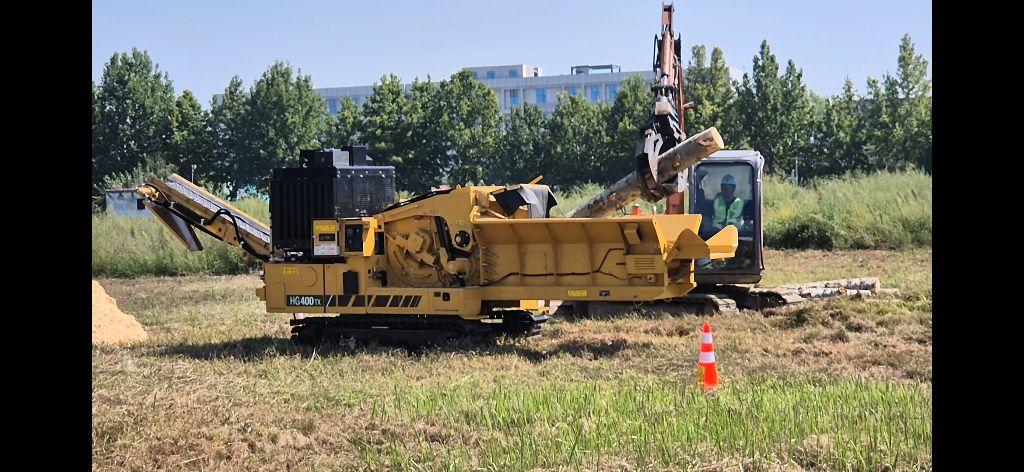

Compact and versatile grinder for different grinding applications?Offering the perfect balance of functionality and affordability, the Vermeer HG400TX Stage V/T4F is an entry level grinder for arborists and recycling firms to process green waste, composting or land clearing in small, narrow jobsites. Equipped with steel tracks, the self-propelled HG400TX can be maneuvered around challenging terrains with ease and stability. Its 173-hp (129-kW) CAT engine also enables it to process difficult materials efficiently. Various screen and grinder tip options are also available, making it suitable for a variety of applications including re-grinding rough wood waste and processing construction debris and tree stumps to obtain the desired end products.
