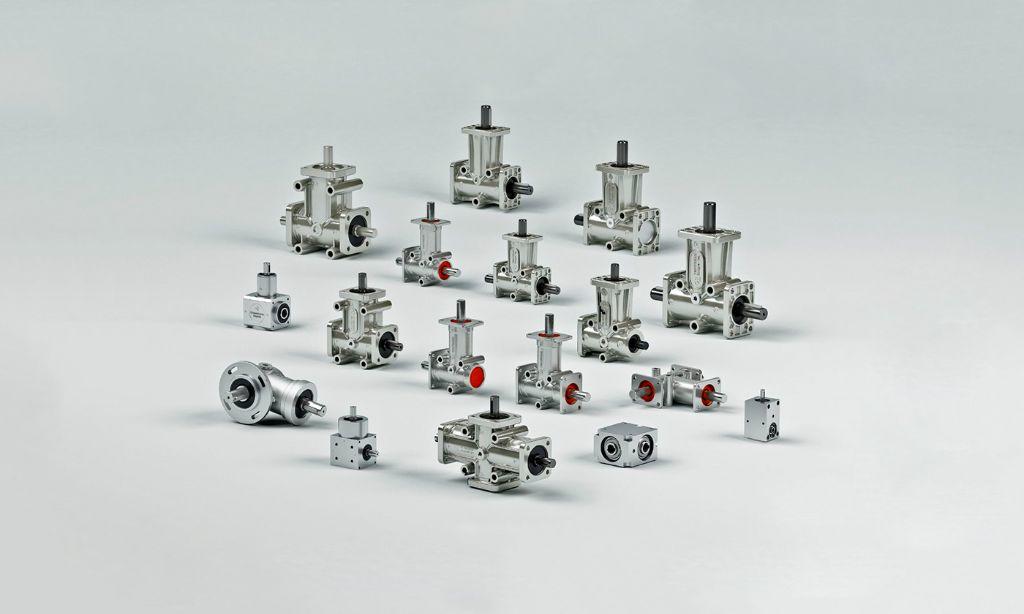

DZ series are available in 9 different sizes, with 2 or 3 outputs with transmission ratios 1/1 or 1/2 or 1/3. In addition to the standard series is a wide special range of angle bevel gears to customer’s specifications.
HOUSING
Single-piece aluminium alloy casting with 4 or 6 mounting points and 3 or 4 centering conditions. A stainless steel version is also available.
GEARS
SPIRAL bevel gears cut on GLEASON hobbing machines to ensure maximum load capacity. Nickel-chrome steel gears with surface case-hardened gear teeth; this ensures maximum service life while leaving the tooth core tough and flexible to resist mechanical shocks. Units are manufactured with backlash tolerances to ensure perfect gear engagement and silent operation. Backlash tolerances can be reduced to a minimum of 5’ if specifically requested; ask for details of special prices and delivery conditions on these orders.
SHAFTS
Manufactured in steel with 80 Kg/mm2 surface treatment for corrosion protection. Shaft coupling on the power take-off is by ISO standard keyways (except for Size 1 and 201). Keyways can be made at any angle. A stainless steel version is also available.
BEARING
Large bearings in deep races. In specific cases, tapered rollers and/or bias bearings are used.
LUBRICATION
Units are supplied already filled with lubricant. Size 1 units are filled with long-life grease; all other sizes are oil filled. For specific applications, special oils and greases are available.
To contact Motordrives Australia Pty Ltd about Gear Drives | DZ Series use Get a quote.
