Filter Regulator Model 652
For optimal performance, Model 652 combines a filter, regulator and flat gauge in one product. The filter will remove any moisture or debris and the regulator provides a controlled and consistent air pressure. Thanks to its compact design, it is a good alternative in applications where space is limited. Model 652, piggyback, manages compressed air systems operating up to 16 bar (232 PSI) inlet pressure. The model features a polycarbonate bowl, easily visible level indicators, locking device and for extended lifetime, a flexible rolling diaphragm. Application: Virtually every industry, e.g. manufacturing, food, processing, carpentry, paper mills, etc., relies on compressed air as an energy source. In a shared compressed air network, with numerous outlets and an extensive pipework system, air preparation units are especially important.
For smaller and larger sizes refer to Model 651 and Model 653. Additional air treatment products are available in our air treatment range including preassembled units.
Technical Data
| Media: | Compressed air, neutral gas |
| Max. working pressure @ 23°C: | 16 bar (232 PSI) |
| Temperature range: | -20°C — +50°C (-4°F — +122°F) |
| Filtering element: | Sintered polyethylene |
| Material body: | Aluminium |
| Material bowl: | Polycarbonate |
| Condensate drain: | Semi-automatic |
| Controlled pressure: | 0.5-10 bar (7-145 PSI) |
| Hysterisis: | 0.3 bar (4 PSI) |
| Material seal: | Nitrile |

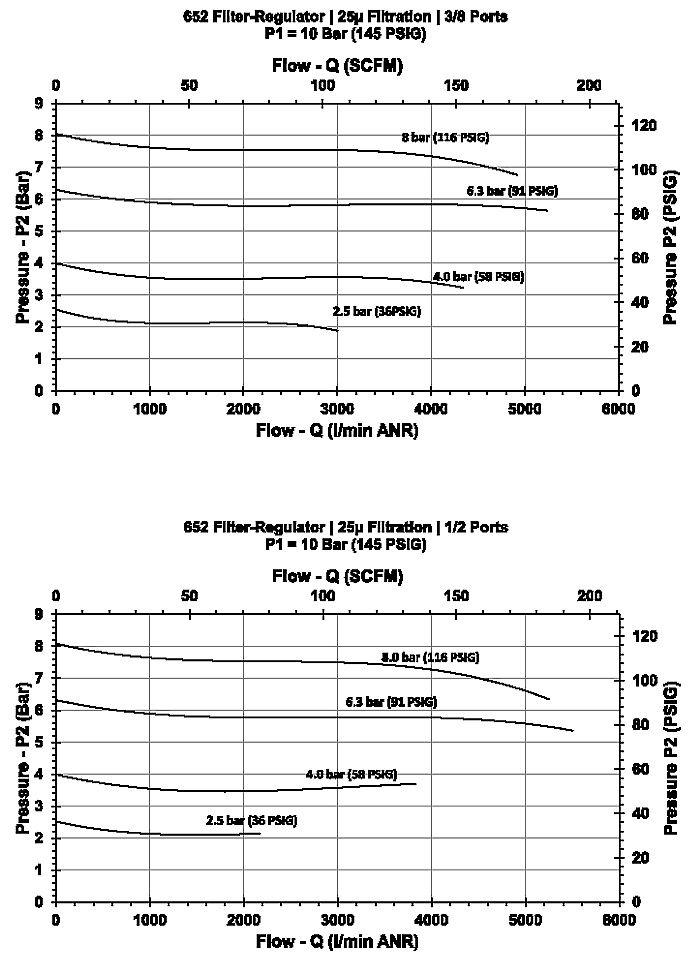

Flow capacity is measured at 6.3 bar (91.4 PSI) inlet pressure, and pressure drop at 1 bar (14.5 PSI).
Article Data
| Part No. | A | B | C | D | E | F | G | H | I | K |
| 19 503 5404 | 273 | 66 | 94.5 | 253.5 | G 1/8" | G 1/8" | 73 | 69 | 30.5 | G 3/8" |
| 19 503 5414 | 273 | 66 | 94.5 | 253.5 | G 1/8" | G 1/8" | 73 | 69 | 30.5 | G 3/8" |
| 19 503 5405 | 273 | 66 | 94.5 | 253.5 | G 1/8" | G 1/8" | 73 | 69 | 30.5 | G 1/2" |
| 19 503 5415 | 273 | 66 | 94.5 | 253.5 | G 1/8" | G 1/8" | 73 | 69 | 30.5 | G 1/2" |
| Filter/Regulators | Part No. | Connection | Bowl capacity | Filtration | Controlled pressure | Max flow |
| 19 503 5404 | G 3/8" | 11 cl | 25 µm | 0.5 - 10 bar (7-145 PSI) | 5420 l/min (191.3 CFM) | |
| 19 503 5414 | G 3/8" | 11 cl | 5 µm | 0.5 - 10 bar (7-145 PSI) | 4450 l/min (157.1 CFM) | |
| 19 503 5405 | G 1/2" | 11 cl | 25 µm | 0.5 - 10 bar (7-145 PSI) | 5500 l/min (194.2 CFM) | |
| 19 503 5415 | G 1/2" | 11 cl | 5 µm | 0.5 - 10 bar (7-145 PSI) | 4490 l/min (158.5 CFM) | |
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards.
To contact CEJN Australia about Filter Regulator Model 652 use Get a quote.
