Farm Tractor Power 85 | TRX 9900Get latest price

Tractor | TRX 9900

• Power: 85
• Engine: KUBOTA - 4 Cyl - 16V TURBO – 3769 CC
• Transmission: 16+16 synchronized reverser
• Weight (Kg): 2100÷2200 rollbar – 2175÷2275 cab
• Capacity (Kg): 2400

TRX 9900 - Isodiametric reversible steering tractor

THE “TAYLOR-MADE” SPECIALIZED

TRX 9900 (85 hp) is a fast, slender, isodiametric reversible tractor suitable for several tasks. Its great stability and constant grip – given by the ACTIO™ Full Chassis with Oscillation – allow the operator to use contemporarily very demanding devices in both front and rear sides. TRX is available with roll-bar or by request with EasyStar 6-uprights Safety Frame or StarLight Cab.

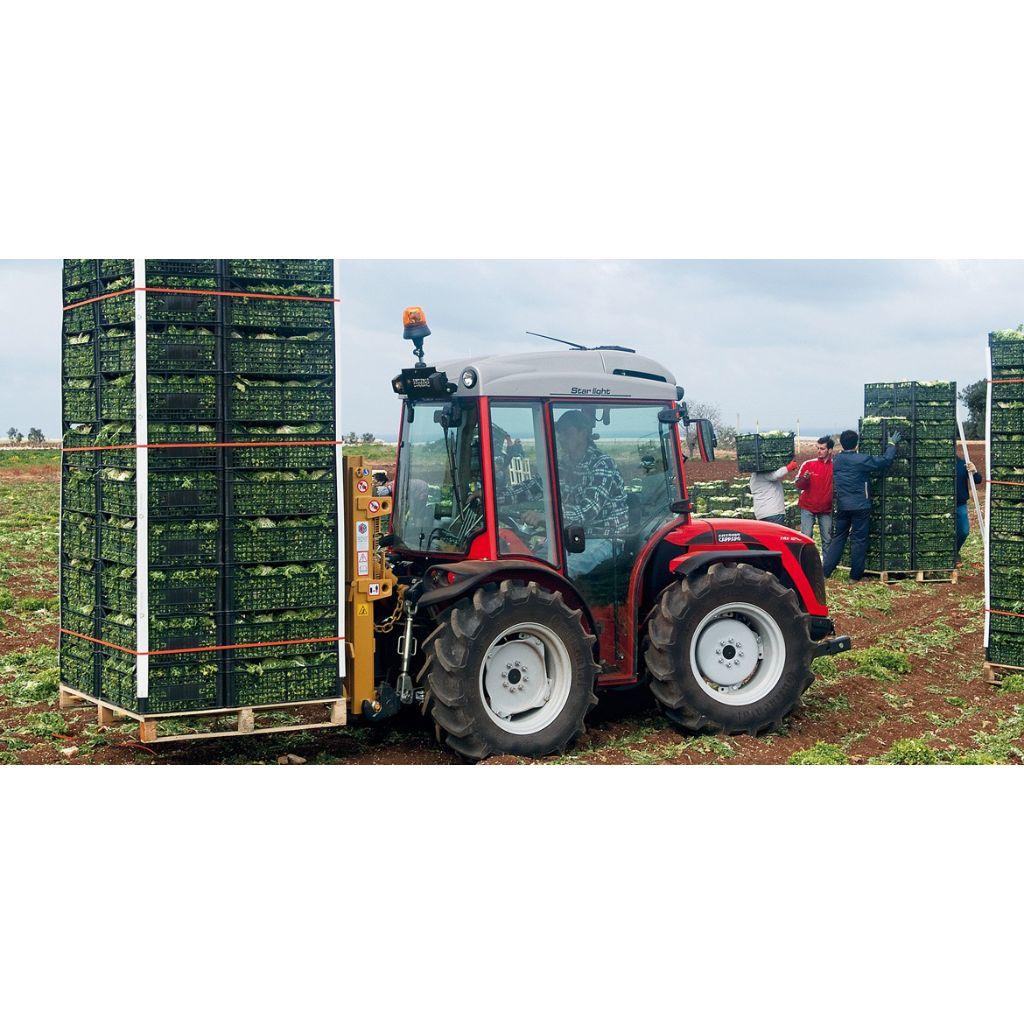

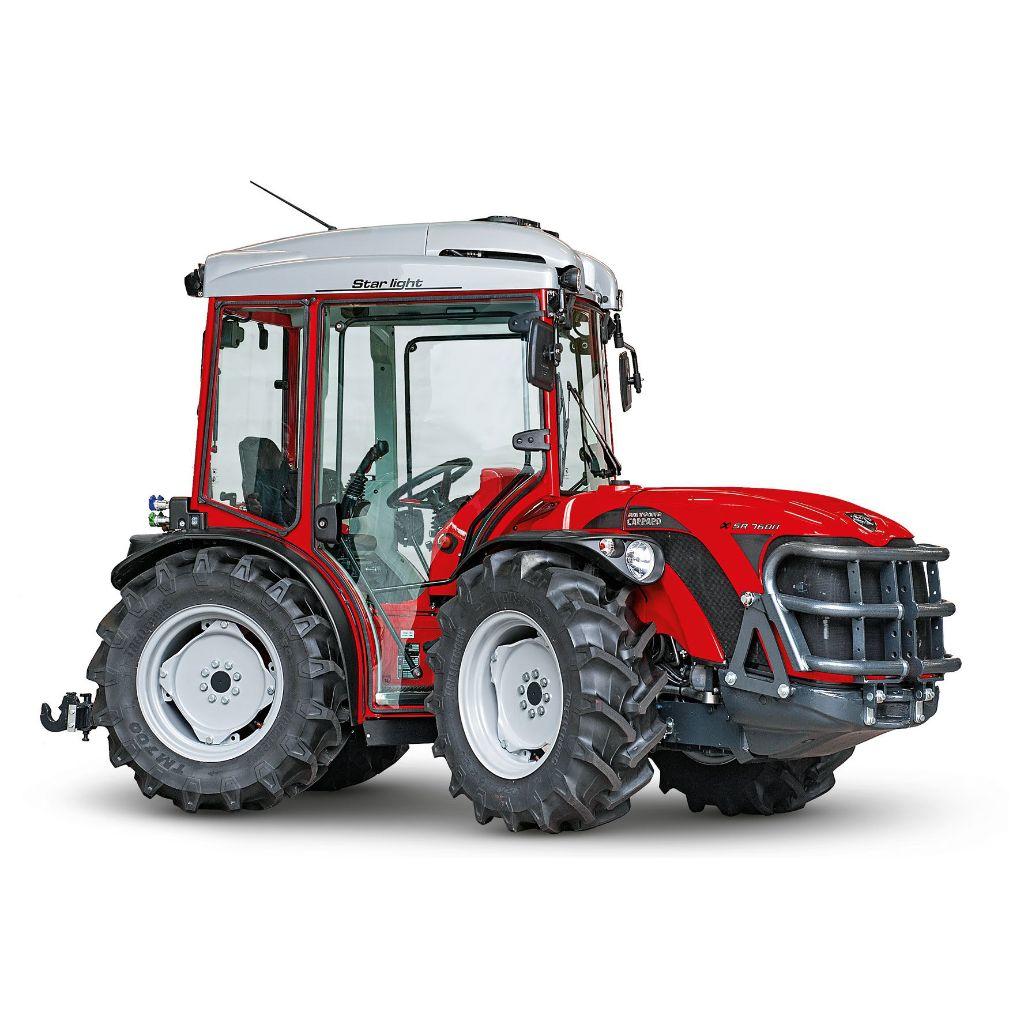

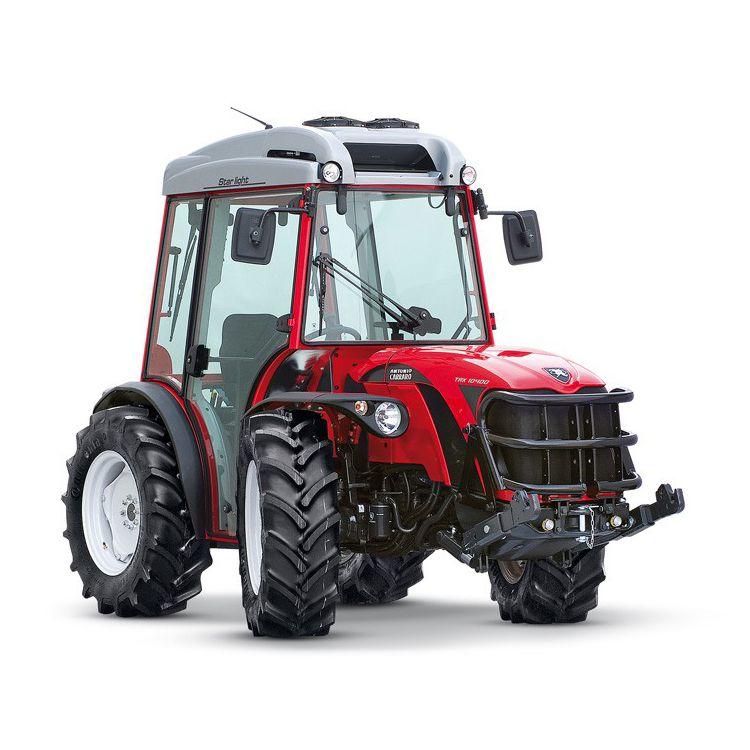

StarLight

CLOSED CAB

StarLight is the Antonio Carraro closed cab assembled on Silent Block anti-vibrating device. It is equipped with front/rear windscreens, total-glass doors, double sunroof with sunscreens and portholes with view on wheels and devices, thanks to which it offers on-board brightness and total visibility.
The smooth design is functional to its performance through side-sloping rows or underfoliage. StarLight's compactness allows agility in the most narrow spaces with neither fruit nor flowers damage.
The soundproof clothing of the driver's station grants acoustic comfort.
The main controls are in ergonomical position.
The ventilation system features a rapid front windscreen defogging system. he incoming air is cleaned by a large filter, with an available activated carbon filter. The air-conditioning is achieved by a powerful system running on ecological coolant, which also refreshes the cabin air using a low rev motor. The heating system utilizes a powerful heat exchanger which is most exceptional even in the coldest weather. The roof can be opened to lift the electric fans for quick maintenance intervention. StarLight offers also two rear and two front lights – all adjustable. Two adjustable rearview mirrors, foldable plate holder, glovebox, electrical setup and speakers for stereo system, are other details of the onboard comfort of Starlight. As every Antonio Carraro cab, Starlight is certified as anti-capsizing device.

EasyStar

MULTI-PURPOSE MODULAR FRAME

EasyStar 6-post cab is a must-have device to protect the operator from sun, bad weather and dust.
Starting from the standard configuration (6-post frame and sunroof), one can add front and rear windscreens and the doors set.
Covered by Antonio Carraro warranty, EasyStar is safer than many untested, uncertified products at the same cost.
In addition to its unmatched quality, its design is pleasant and perfectly suitable to the chosen tractor.

STEERING: precise and tight

The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering brakes can be utilized, while accentuating the “superbend” effect obtained thanks to the double-acting constant velocity joints. The front wheel on the inside of the curve naturally increases the steering angle without the vehicle being allowed to stick. The smooth and sensitive hydroguide steering wheel assures precise maneuvering on steep slopes, in crossways movements, in narrow paths, among crop rows and in car parks.

SAFETY: active and passive

Low center of gravity, constant grip, stability, efficient brakes and driving position protection are just some of the "active" safety factors, which function in association with the "passive" features such as quality of components, design and the use of environment-friendly engines. The brake system, comprising 4 adjustment-free hydraulically operated oil-bath disc brakes, guarantees modularity during the sharpest braking and reliability even with the front-wheel drive disengaged. This system's safety level has allowed the vehicle to achieve type-approval for 40 km/h travel. The rear hydraulic lift enhances the tractor's grip, keeping it "glued to the ground" at all times: the machine and implement adapt perfectly to the contours of the land with no slewing or side-slipping, ensuring peak efficiency. The electrohydraulic differential lock, rear or simultaneous on both axles, prevents wheel slip, maintaining traction at all times. The driving position in the center of the vehicle, with roll-bar or cab type-approved to withstand even violent impact loads, guarantees the operator unbeatable protection.

ERGONOMICS & COMFORT

The tapered and racy design helps the tractor to maneuver in fields and increases operator visibility of the equipment and the surrounding terrain. The spacious driving position is easy to access and protects the operator. The operating station is suspended on silent-block, which absorb vibrations and dampen noise.

Thanks to the ACTIO™ Chassis, the driving position coincides with the center of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for nighttime use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.

The lighting equipment, integrated into the mudguards, is comprised of reflecting parabolic optical assemblies, which offer a wide range of illumination covering the roadway, the equipment, and the surrounding field. The adjustable* steering wheel allows any operator to find his ideal driving position. Maintenance is practical and fast thanks to the fact that the bonnet can be fully opened and the side panels and battery cover can be easily removed.

MACHINE AND EQUIPMENT: an integrated technological system

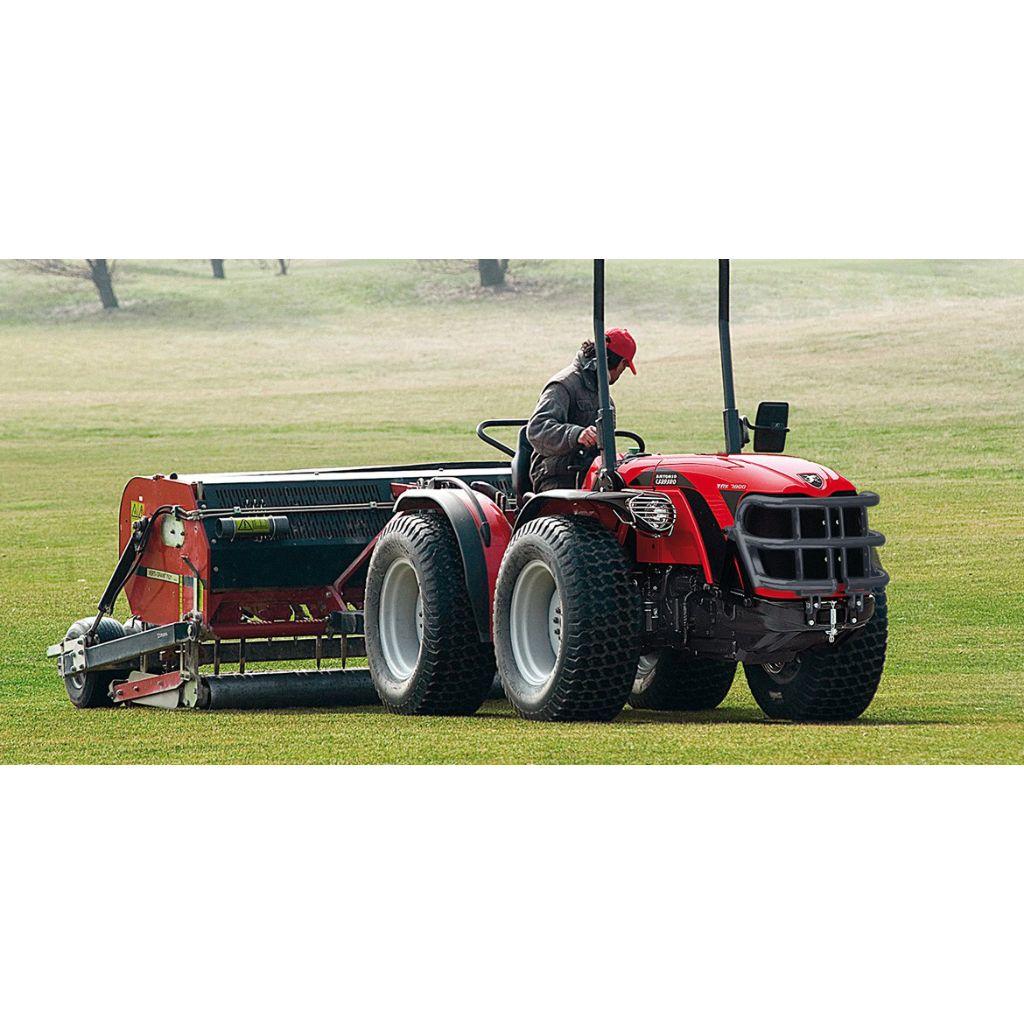

The integrated lifting - hydraulic system - PTO assembly can mount a large variety of implements at both the front and rear. The lift is a single group with vertical cylinders, featuring a 3-point hitch. The rear lift controls the equipment precisely and optimizes the stability of the tractor allowing it to follow the contour of the terrain without slipping or sliding sideways.

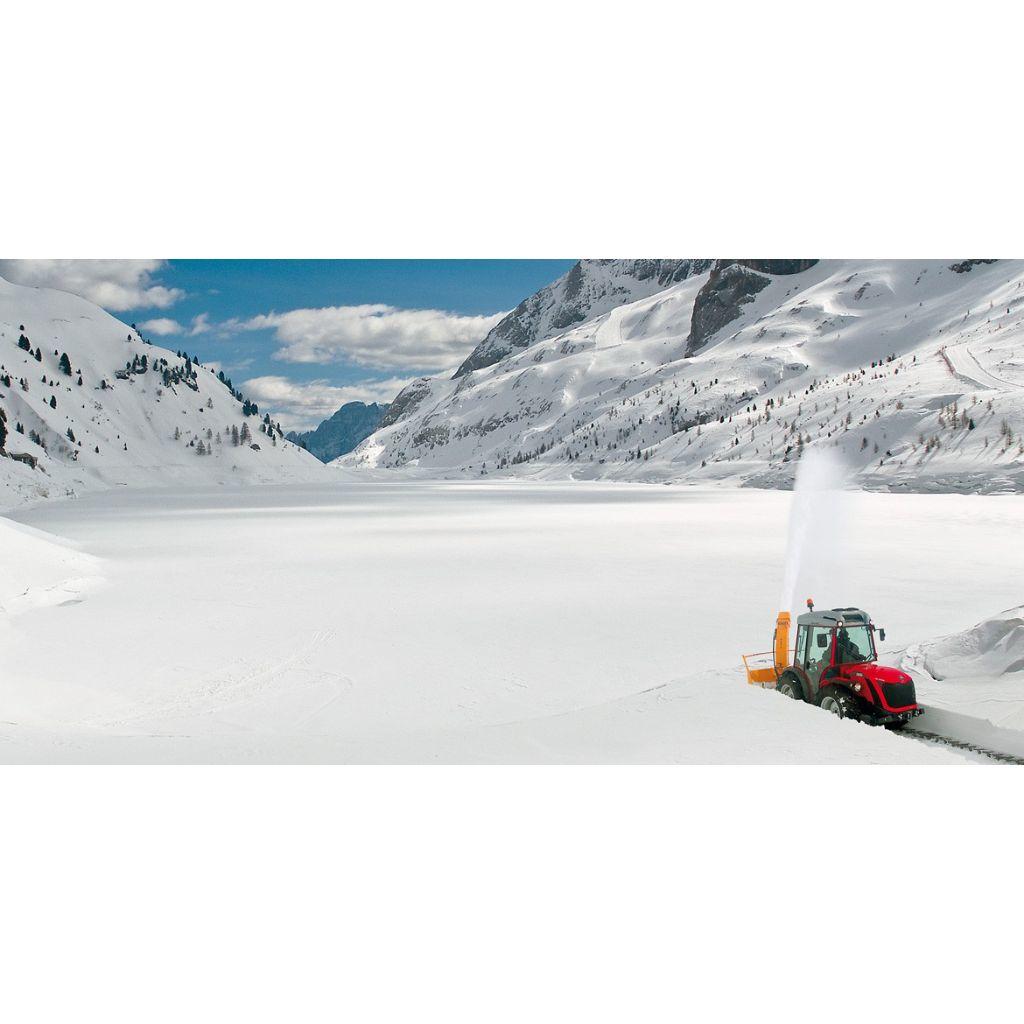

The front lift* optimizes combined processes such as a front grass shredder with a rear between-row mower, a front vine trimmer with a rear side-shoot remover, a front vine trimmer with a rear mulcher, or a front snow blade with a rear salt/sand spreader.

The multi-plate clutch in oil bath of the PTO with an electro-hydraulic progressive engagement command features a safety button for preventing involuntary starting and stopping the engine with the PTO engaged.
