Product Overview

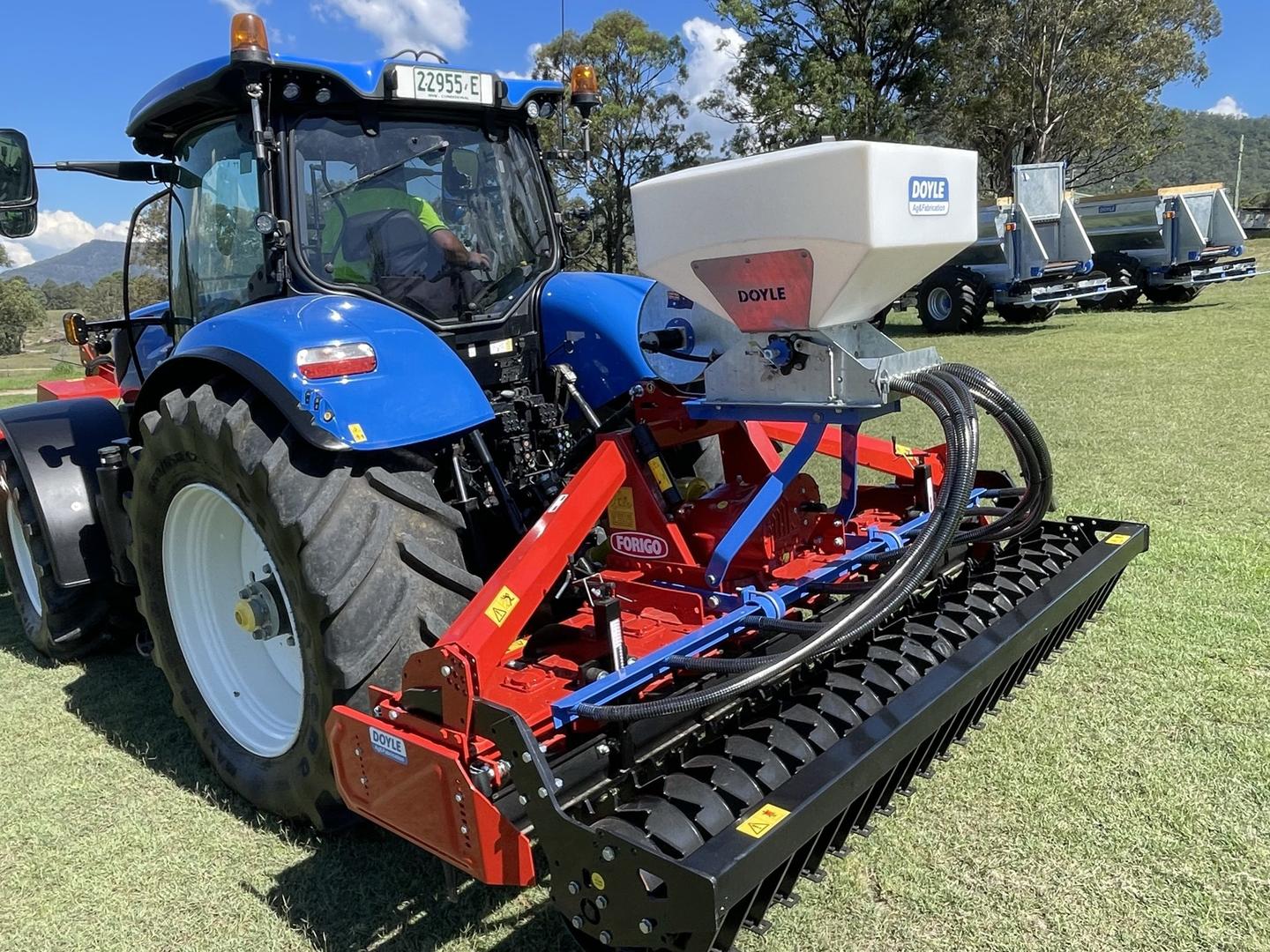

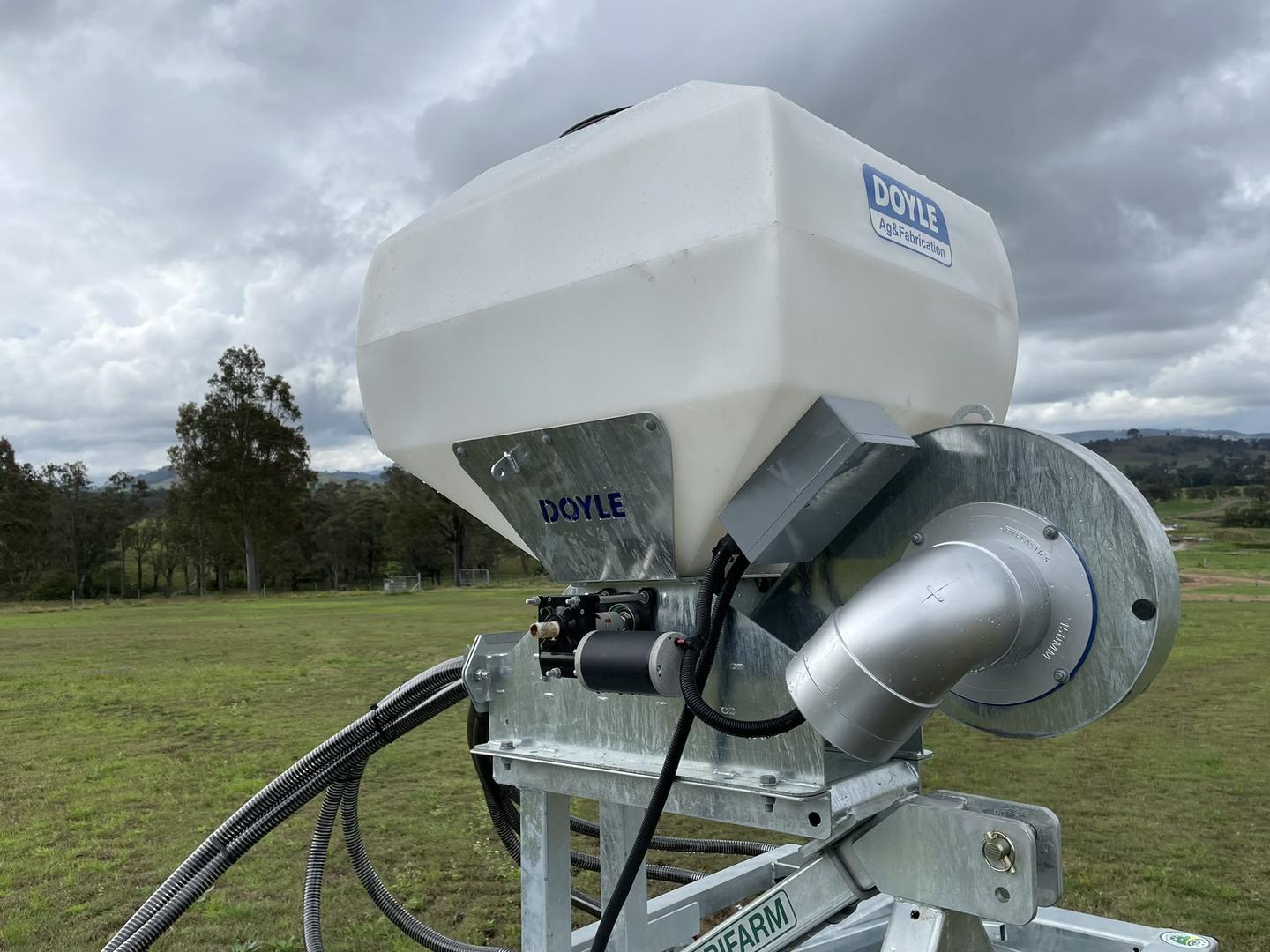

The DOYLE SSB400 Air Seeder features a robust Australian-designed and built system with a hot-dip galvanised frame and a 400-litre poly hopper, enabling quick conversion of existing tillage machines into efficient single-pass seeding units. This updated model boasts enhanced versatility, an independent outlet design for compatibility with various machines, and hardware constructed for rigorous environments.
Key Features
- All-Australian build for unmatched durability and performance.
- Hot-dip galvanised frame and stainless steel/high-density poly metering components for longevity.
- Larger 400-litre hopper for minimised downtime.
- Heavy-duty, adaptable construction for mounting on all machines.
- Outlet-independent design for easy adaption to varying implements.
- Easy and accurate calibration with step-less adjustment.
- Unique metering rotor capable of outputs from approximately 10–300 kg/hour.
- Single rotor metering for all seed types, from clover to faba beans and multi-species mixes.
- Capable of seeding widths up to 6.0 m (8.0 m with secondary heads).
- HDPE seed meter rotor, aluminium high-capacity fan, and industrial worm drive motor for reliable operation.
- Standard with 8 outlets (customisable from 1–12 outlets; custom diameters available).
- Tool-less low/high rate (8–300 kg/hour) seed rate delivery.
- In-cab step-less seed rate adjustment and seed meter RPM readout for operator convenience.
- Headland control feature and supplied with 20 m air seeder hose and seed spreader plates.
- Options available: outlet distributor plates, mechanical “Vari-box” ground speed drive, extra heads, customised outlets, seeding units and mounting/walkway frames.
Specifications
| Working Width |
0–6,000 mm |
| Hopper Capacity |
400 Litre Poly Bin |
| Standard Seed Outlets |
8 x 32 mm diameter (custom 1–12 outlets, 25–63 mm available) |
| Power Requirements |
12V DC, 40A |
| Seed Meter Rotor Motor |
12V, 200W, 10–64 rpm industrial right-angle gearbox |
| Fan Motor |
12V, 200W, 3,200 rpm aluminium fan (>8 m/s air delivery at outlets) |
| Seed Rate Delivery |
8–300 kg/hour, tool-less adjustment |
| In-cab Controls |
Step-less seed meter rate control, seed meter RPM readout, headland control |
Optional Accessories
- Outlet distributor plates
- Mechanical “Vari-box” ground speed drive
- Primary or secondary heads
- Custom outlets and seeding units
- Mounting frames and walkway frames
To contact Doyle Ag about DOYLE SSB400 Air Seeder use Get a quote.
