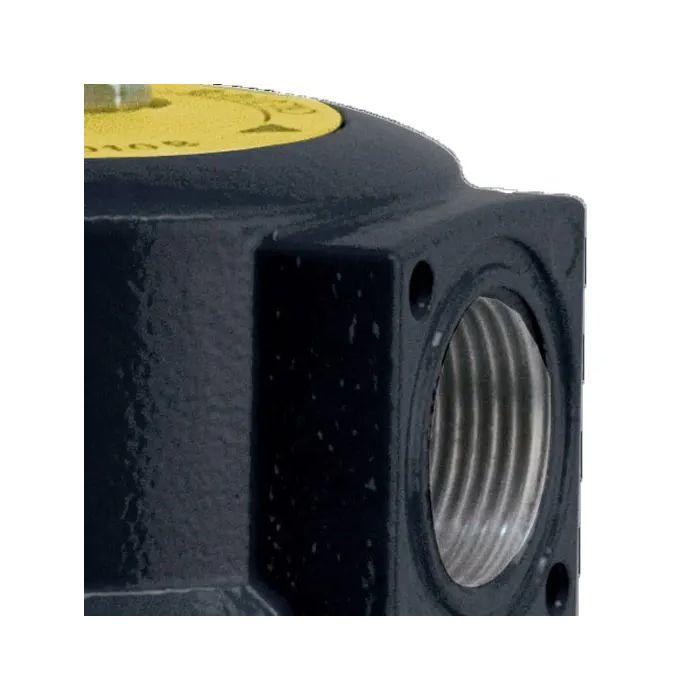

Condensate separators are designed for high efficiency removal of bulk liquids from compressed air and vacuum systems. Inside the housing there is an insert with vanes that creates controlled rotation of the air.
To discharge condensate from the CKL cyclone separator it is essential to install automatic or electronic condensate drain.
Specifications
| Model | Port Size (BSP) | Flow Rate at 7bar (cfm/L/min) | Bowl Clearance (mm) | Height (mm) | Diameter (mm) |
|---|---|---|---|---|---|
| CKL-45 | 1/2" | 46/1303 | 76.2 | 164 | 101.6 |
| CKL-80 | 3/4" | 70/1982 | 101.6 | 225.5 | 101.6 |
| CKL-200 | 1" | 116/3285 | 127 | 389.5 | 127 |
| CKL-460 | 1-1/2" | 300/8495 | 177.8 | 533 | 127 |
| CKL-885 | 2" | 588/16520 | 787.4 | 758.5 | 177.8 |
| CKL-1000 | 2-1/2" | 88/24975 | 787.4 | 785.5 | 177.8 |
| CKL-1625 | 3" | 1270/35962 | 241.3 | 635.5 | 254 |
