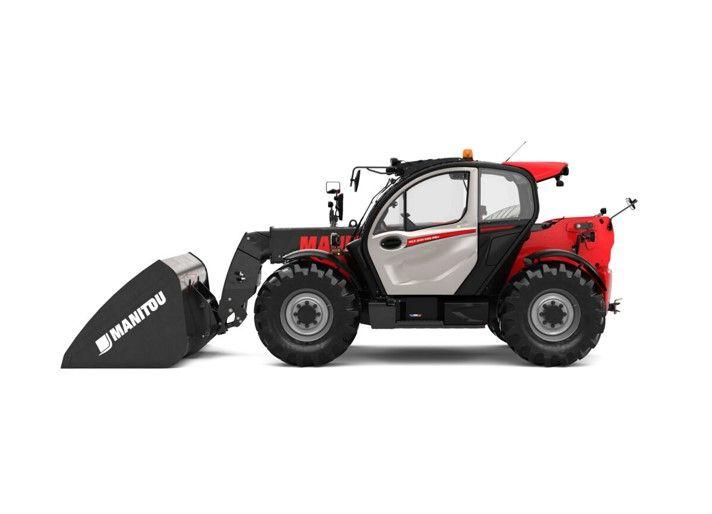

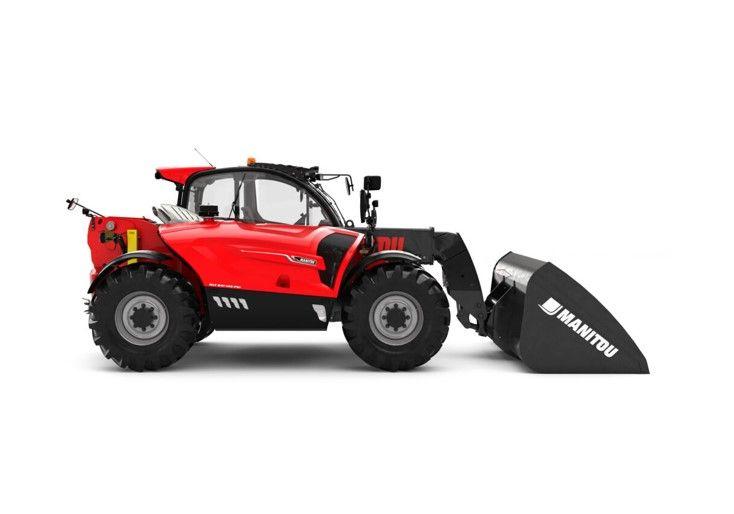

Agricultural Telescopic handler | MLT-X 841 - 145 PS+ Get latest price

TECHNICAL FEATURES

Capacities

• Max. capacity

  • 4100 kg
• Max. lifting height

  • 7.60 m
• Max. outreach

  • 4.45 m
• Reach at max. height

  • 0.90 m
• Breakout force with bucket

  • 5268 daN

Weight and dimensions

• Unladen weight (with forks)

  • 9160 kg
• Ground clearance

  • 0.43 m
• Wheelbase

  • 2.88 mm
• Overall length to carriage (with hitch)

  • 5.40 m
• Front overhang

  • 1.50 m
• Overall width

  • 2.39 m
• Overall cab width

  • 0.99 m
• Overall height

  • 2.42 m
• Tilt-down angle

  • 135 °
• Tilt-up angle

  • 12 °
• External turning radius (over tyres)

  • 3.74 m
• Standard tyres

  • Michelin - XMCL - 460/70 R24 159A8
• Drive wheels (front / rear)

  • 2 / 2
• Steering wheels (front / rear)

  • 2 / 2

Performances

• Lifting

  • 6.40 s
• Lowering

  • 4.60 s
• Extension

  • 6.10 s
• Retraction

  • 5.20 s
• Crowd

  • 3 s
• Dump

  • 2.20 s

Engine

• Engine brand

  • Yanmar
• Engine norm

  • Stage IIIA
• Max. fuel sulphur content

  • 1000 ppm
• Engine model

  • 4TN107HT-5SMUF
• Number of cylinders - Capacity of cylinders

  • 4 - 4567 cm³
• I.C. Engine power rating / Power (kW)

  • 141 Hp / 105 kW
• Max. torque / Engine rotation

  • 602 Nm @1500 rpm
• Drawbar pull (Laden)

  • 8727 daN
• Reversible fan

  • Standard
• Engine cooling system

  • 4 radiators (water + intercooler + hydraulic oil + transmission oil)

Transmission

• Transmission type

  • Torque Converter with powershift
• Gearbox

  • M-Shift
• Number of gears (forward / reverse)

  • 5 / 3
• Max. travel speed (may vary according to applicable regulations)

  • 40 km/h
• Differential lock

  • Limited slip differential on front & rear axles
• Parking brake

  • Automatic negative parking brake
• Service brake

  • Oil-immersed multi-discs braking on front & rear axles

Hydraulics

• Hydraulic pump type

  • Load sensing pump
• Hydraulic flow - Pressure

  • 200 l/min - 270 bar
• Flow sharing distributor

  • Standard

Tank capacities

• Hydraulic oil

  • 141 l
• Fuel tank

  • 142 l

Noise and vibration

• Noise at driving position (LpA) tested following NF EN 12053 norm

  • 69 dB(A)
• Environmental noise (LwA)

  • 105 dB(A)
• Vibration to whole hand/arm

  • < 2.50 m/s²

Miscellaneous

• Tractor homologation

  • Tractor homologation
• Safety cab homologation

  • ROPS - FOPS cab (level 2)
• Controls

  • JSM
